Tools - New Electrical Connector Kit

0rder No.: S-SI-58.20/109

Date: October 1999

Supersedes:
58/33, July 1985
MBNA-58/37, July 1988

Group:
58

SUBJECT:
NEW ELECTRICAL CONNECTOR KIT
(replacement for 201 589 00 99 00)





Special Tools

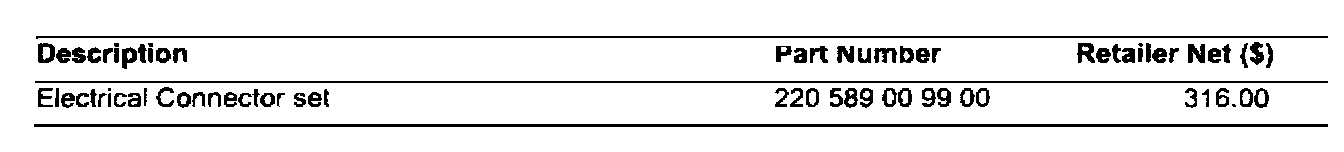

The electrical connector kit, 220 589 00 99 00 (Figure 1), and its individual components (listed on subsequent pages) for model 220 replace the previous electrical connector kit, 201 589 00 99 00, as well as all its individual components. New components are also introduced at this time. Individual components are available separately.

All retailers will automatically receive one electrical connector kit (Figure 1) as it becomes available, as stated in the Model Year Tool Release Letter dated February 3, 1999. Once the first kit arrives, this will signal the kit's availability and retailers can then place additional orders accordingly.

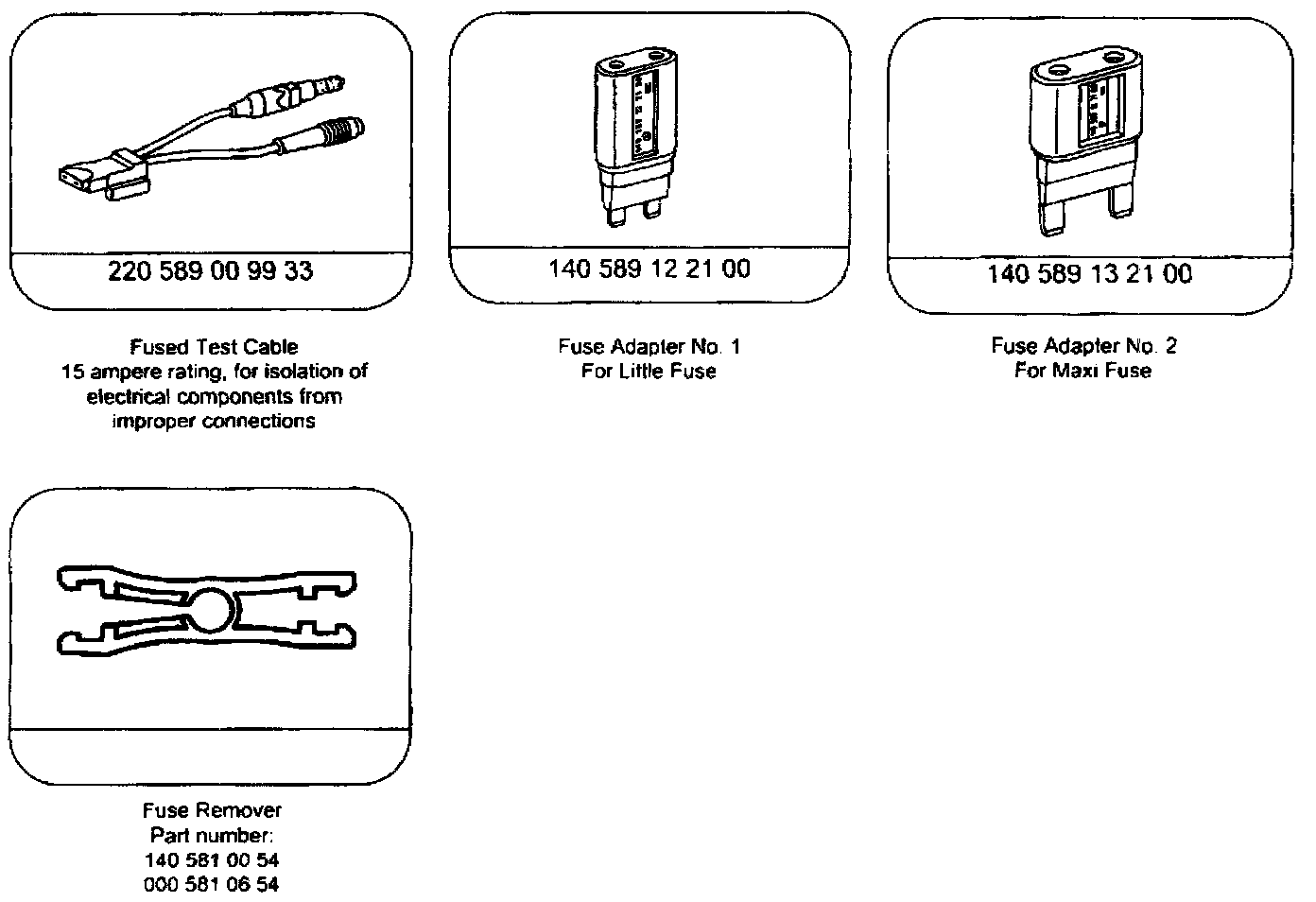

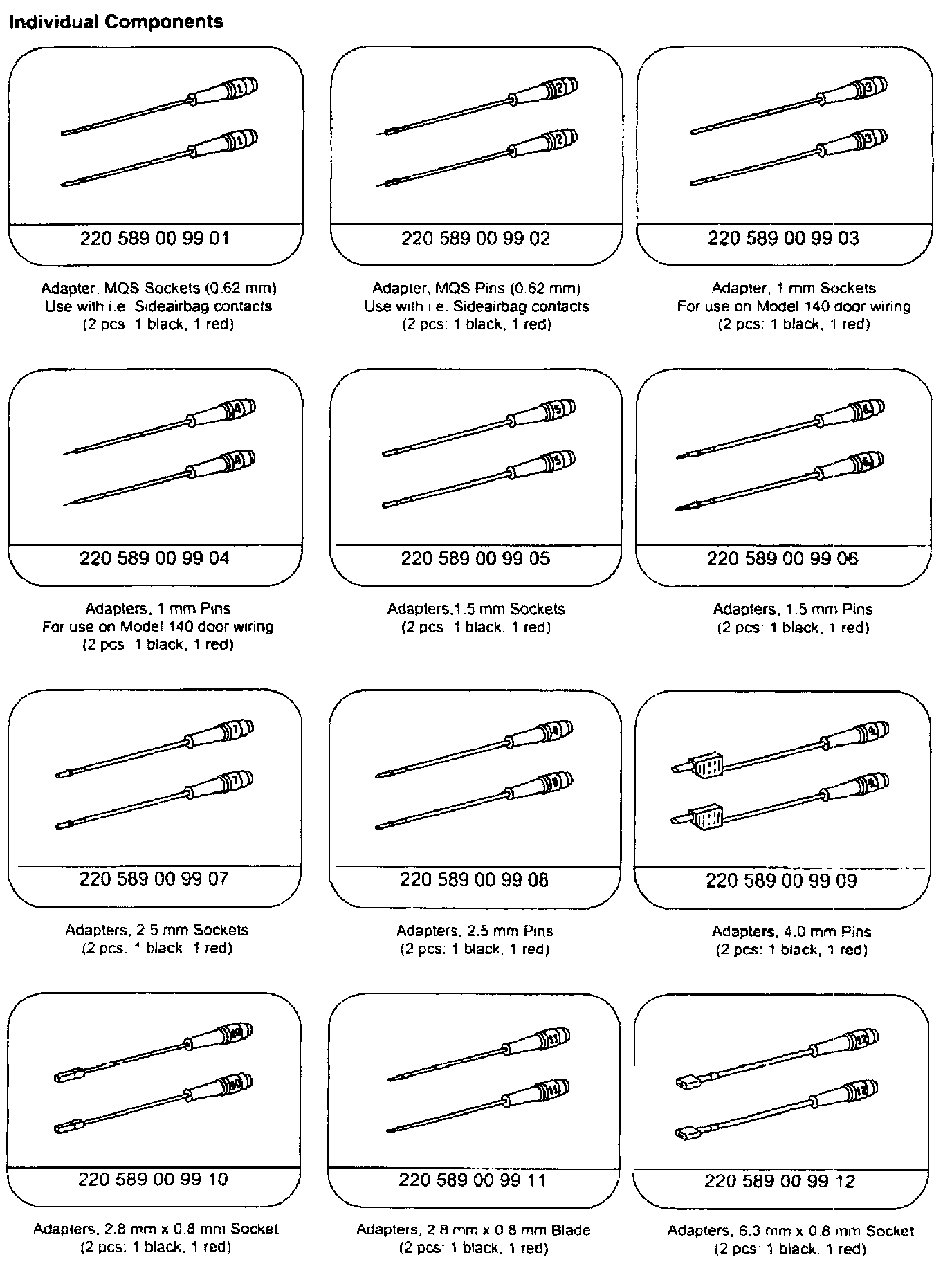

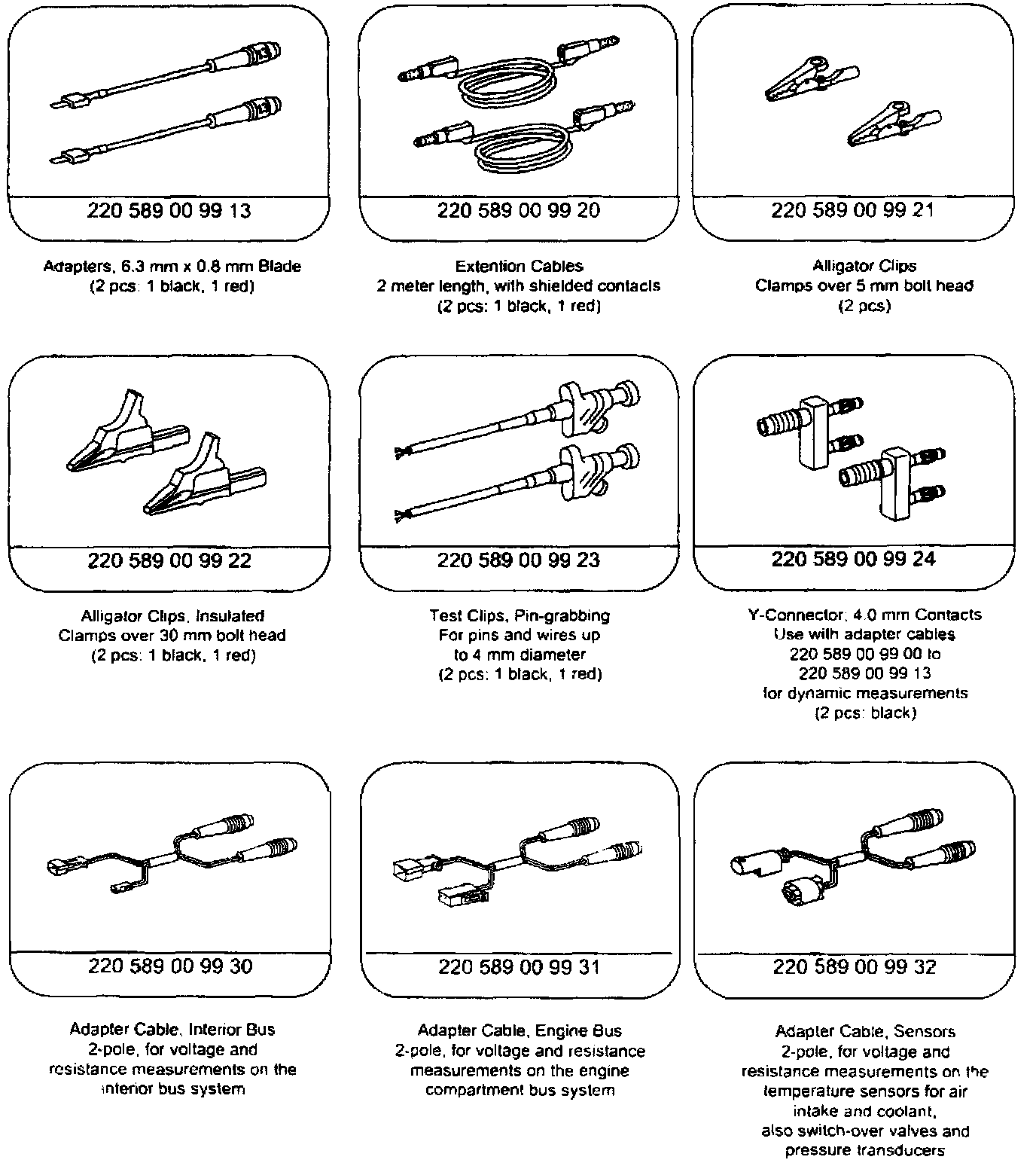

Individual Components





DESCRIPTION
