Radio - Cellular Telephone/CD Changer Installation: Overview
Order No: P-SI-82.64/123Date: February 2000
Group: 82
MODEL
220.170/175 (MY 2000)
SUBJECT:
VOICE ACTIVATED CELLULAR TELEPHONE/CD CHANGER INSTALLATION
WARNING!
Disconnecting the negative battery cable is not recommended due to otherwise extensive reprogramming requirements. WIRING HARNESSES WILL BE ELECTRICALLY ACTIVE. IT IS THEREFORE NECESSARY TO EXERCISE EXTREME CAUTION WHILE EXECUTING THESE INSTALLATION INSTRUCTIONS. FAILURE TO DO SO. COULD RESULT IN SEVERE PERSONAL INJURY OR DEATH FROM ELECTRICAL SHOCK. The ignition and radio power must remain OFF until the final test is performed.
Application Specific D2B Notes:
^ CD changer fiber is installed in the vehicle from the factory
^ Vehicle is configured from the factory for CD changer only
^ Telephone and voice recognition fibers are daisy chain links that are included in the installation kit for those accessories
^ Straight D2B connectors are utilized for the CD and voice recognition module and the angled connector is used for the telephone PSE.
Note:
Refer to S-SI-82.64/123, D28 Fiber Optic Configuration and Version Coding for proper handling and configuration of D2B fibers.

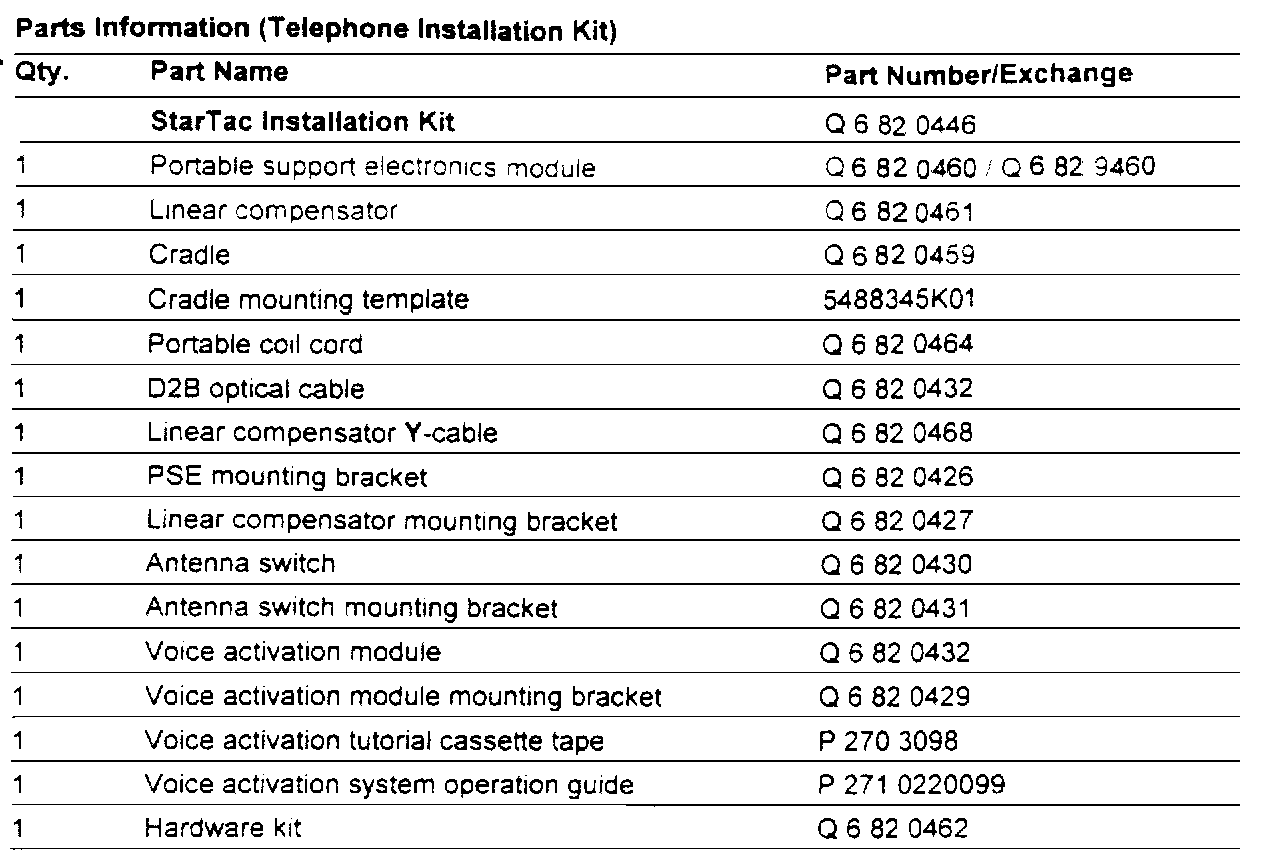

PARTS INFORMATION (TELEPHONE KIT)

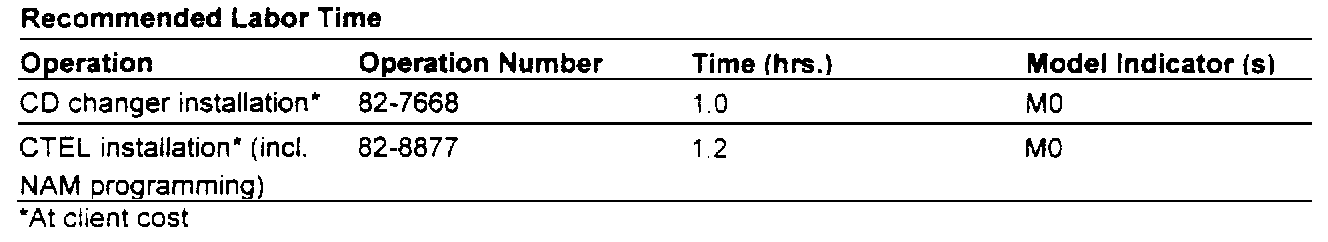

RECOMMENDED LABOR AND TIME
