Radio - Cellular Phone/CD Changer Installation: Overview

Order No.: P-SI-82.64/123A

Supersedes: P-SI-82.64/123.

Group: 82

Date: March 2000

Revision: Part number corrections (boldfaced) on pages 12 and 13

Subject: Voice activated cellular Telephone/CD changer installation

MODEL 220.170/175 (MY 2000)

WARNING! Disconnecting the negative battery cable is not recommended due to otherwise extensive reprogramming requirements. WIRING HARNESSES WILL BE ELECTRICALLY ACTIVE. IT IS THEREFORE NECESSARY TO EXERCISE EXTREME CAUTION WHILE EXECUTING THESE INSTALLATION INSTRUCTIONS. FAILURE TO DO SO, COULD RESULT IN SEVERE PERSONAL INJURY OR DEATH FROM ELECTRICAL SHOCK.the ignition and radio power must remain off until the final test is performed.

Application Specific D2B Notes:

^ CD changer fiber is installed in the vehicle from the factory.

^ Vehicle is configured from the factory for CD changer only.

^ Telephone and voice recognition fibers are daisy chain links that are included in the installation kit for those accessories.

^ Straight D2B connectors are utilized for the CD and voice recognition module and the angled connector is used for the telephone PSE.

Note: Refer to S-SI-82.64/123, D2B Fiber Optic Configuration and Version Coding for proper handling and configuration of D2B fibers.

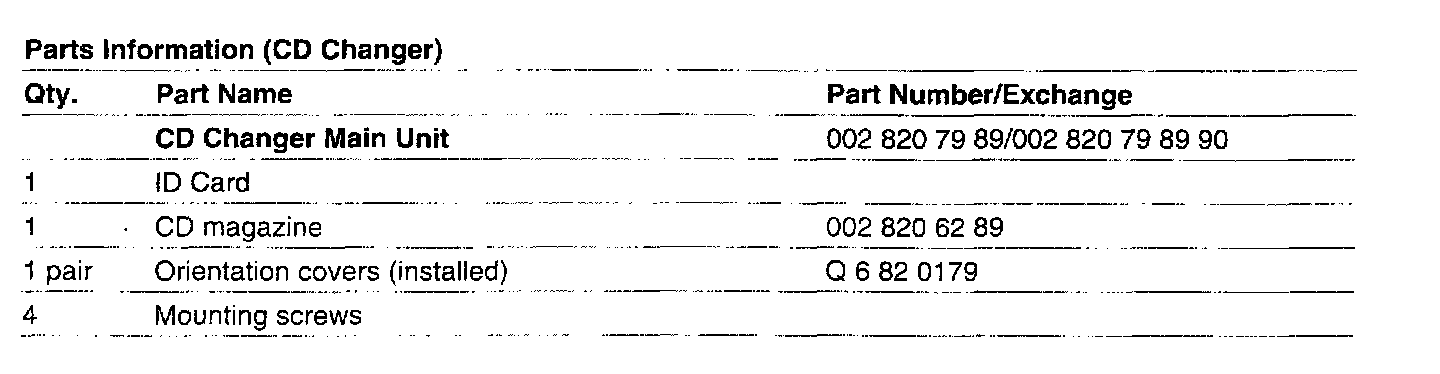

PARTS INFORMATION (CD CHANGER)

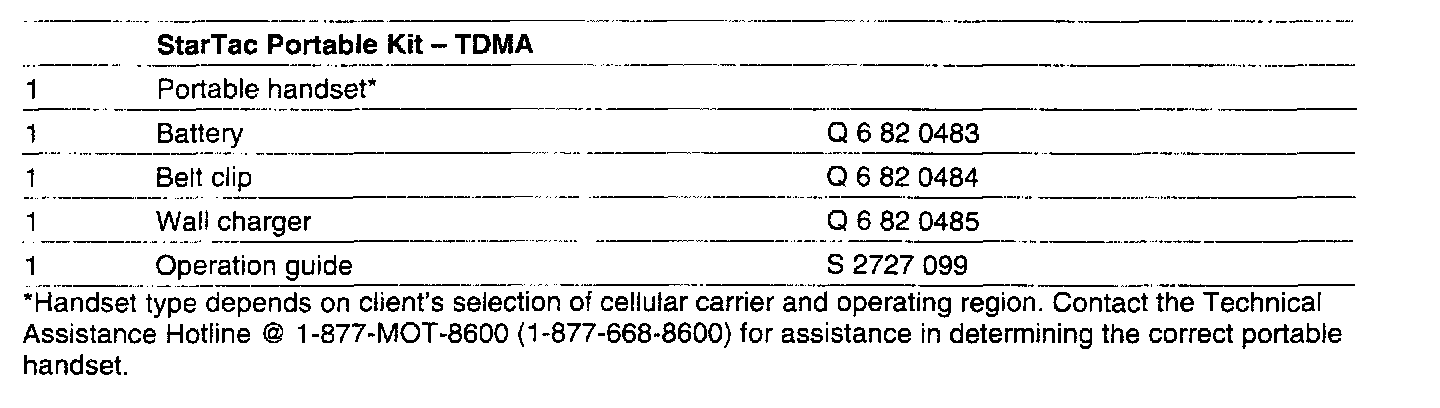

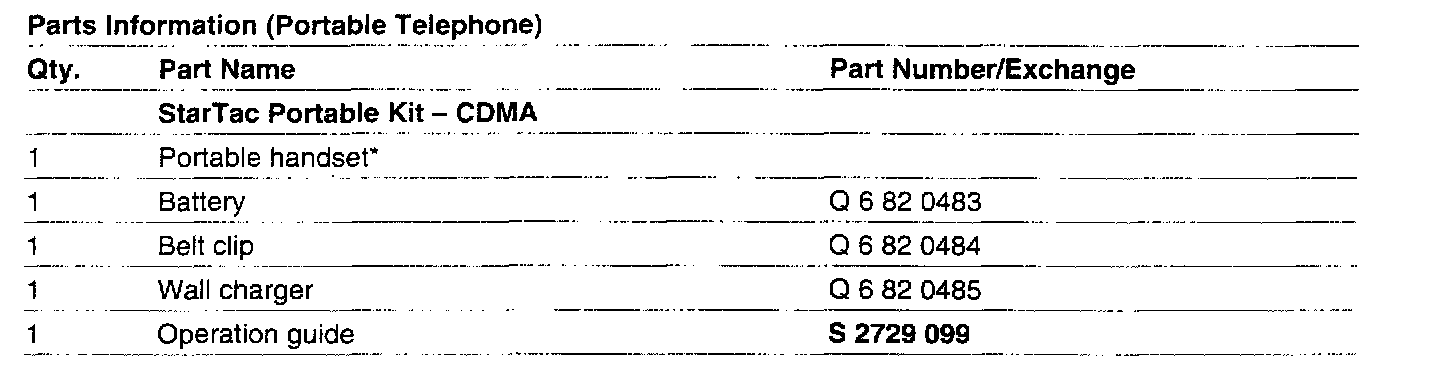

PARTS INFORMATION (PORTABLE TELEPHONE)

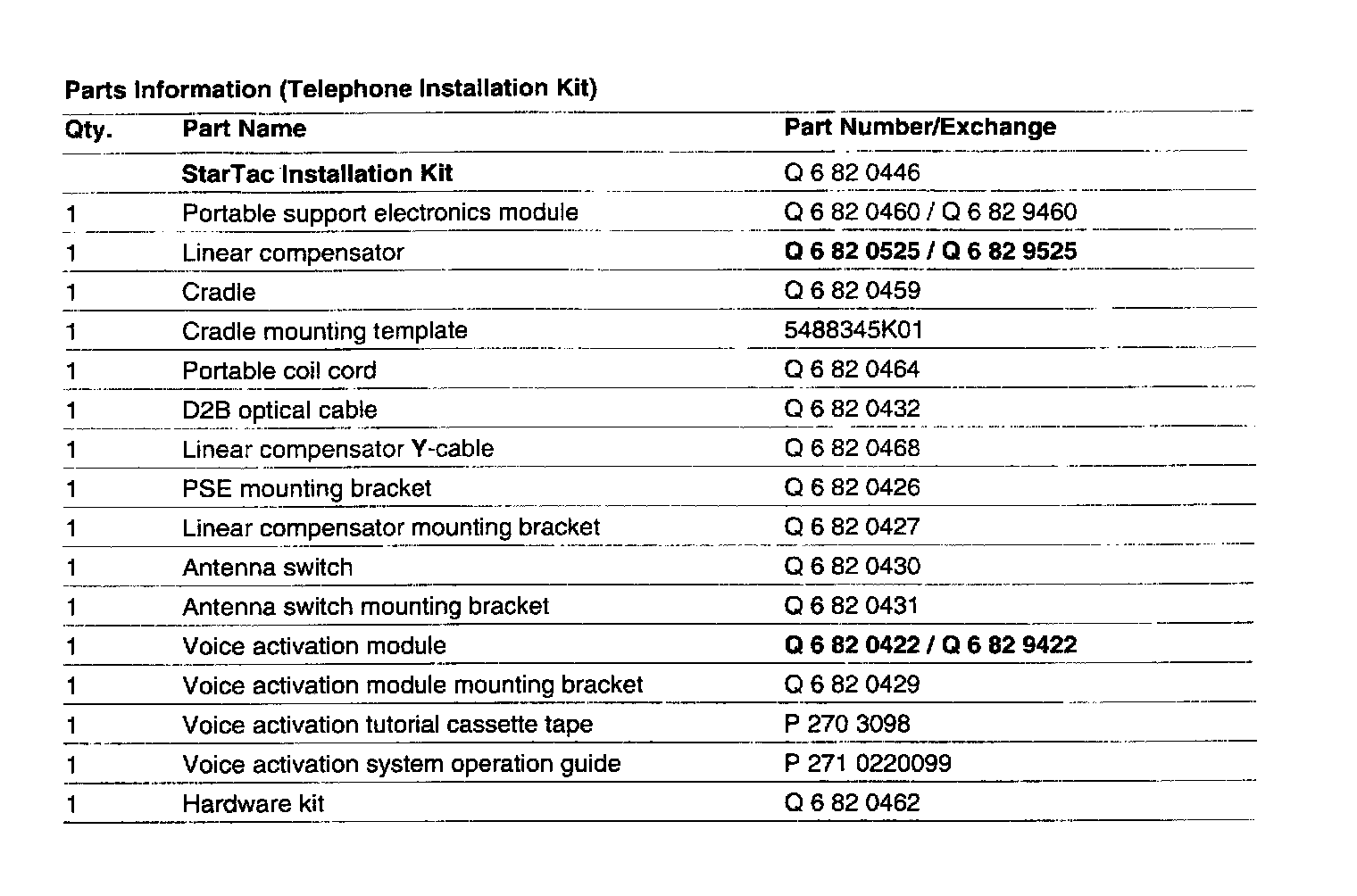

PARTS INFORMATION (TELEPHONE INSTALLATION KIT)

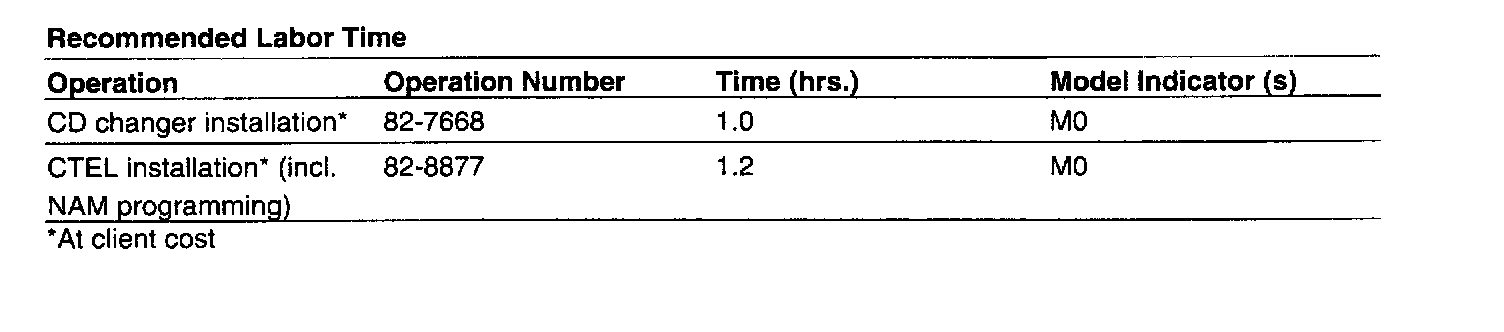

RECOMMENDED LABOR TIME
