Mercedes Benz
>>
2000
>>
S 500 (220.175) V8-5.0L (113.960)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Frame
>>
Skid Plate
>>
Service and Repair
>>
AR61.40-P-1000MB Remove/Install Skid
AR61.40-P-1000MB Remove/Install Skid
AR61.40-P-1000MB Remove/Install Skid
- with CODE (Z07) Top protection

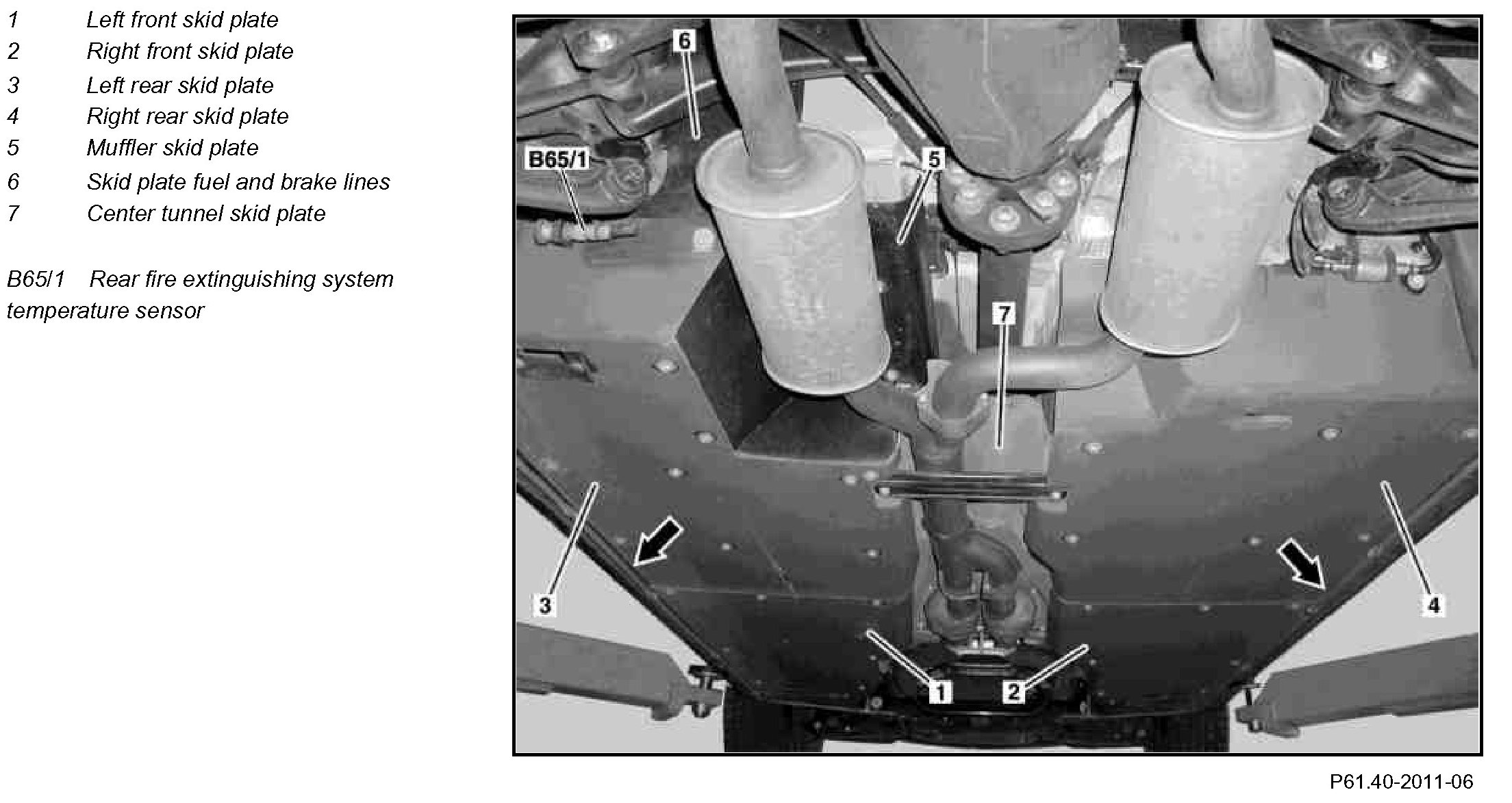

Component Identification:

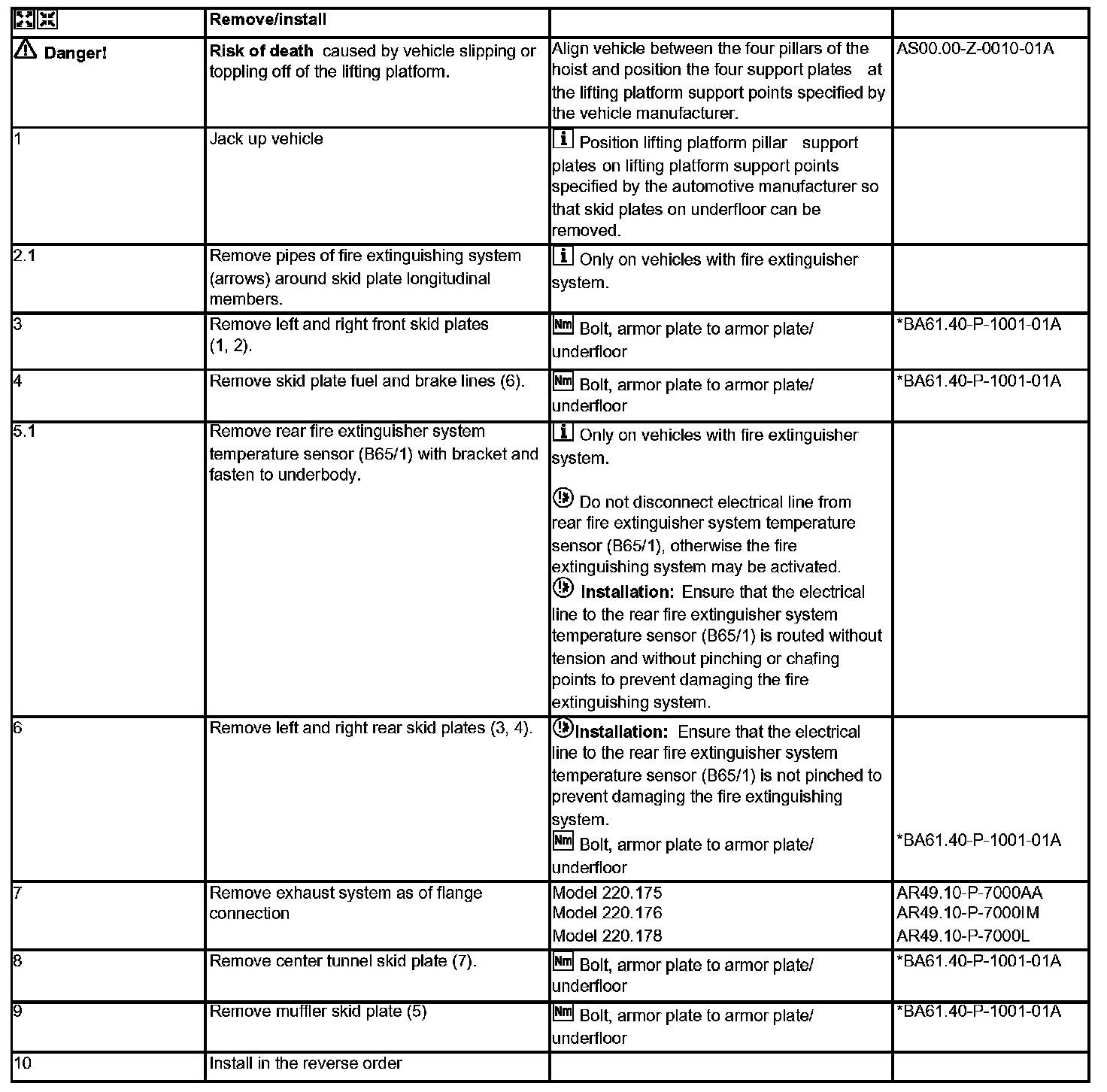

Steps 1 - 10:

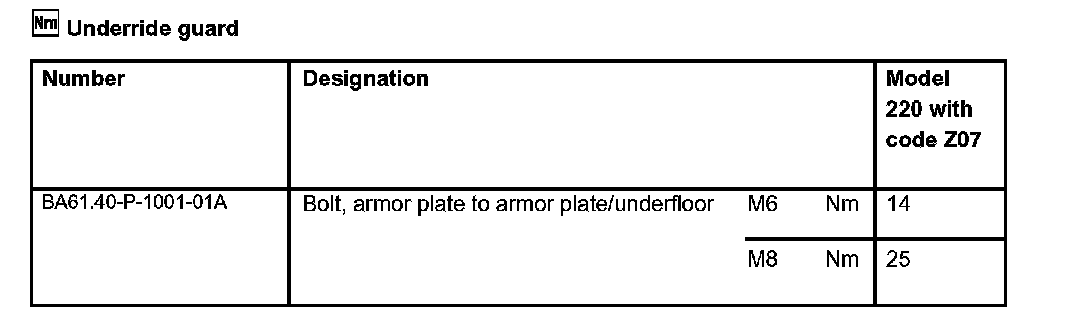

Underride Guard:
