Valve Body: Locations

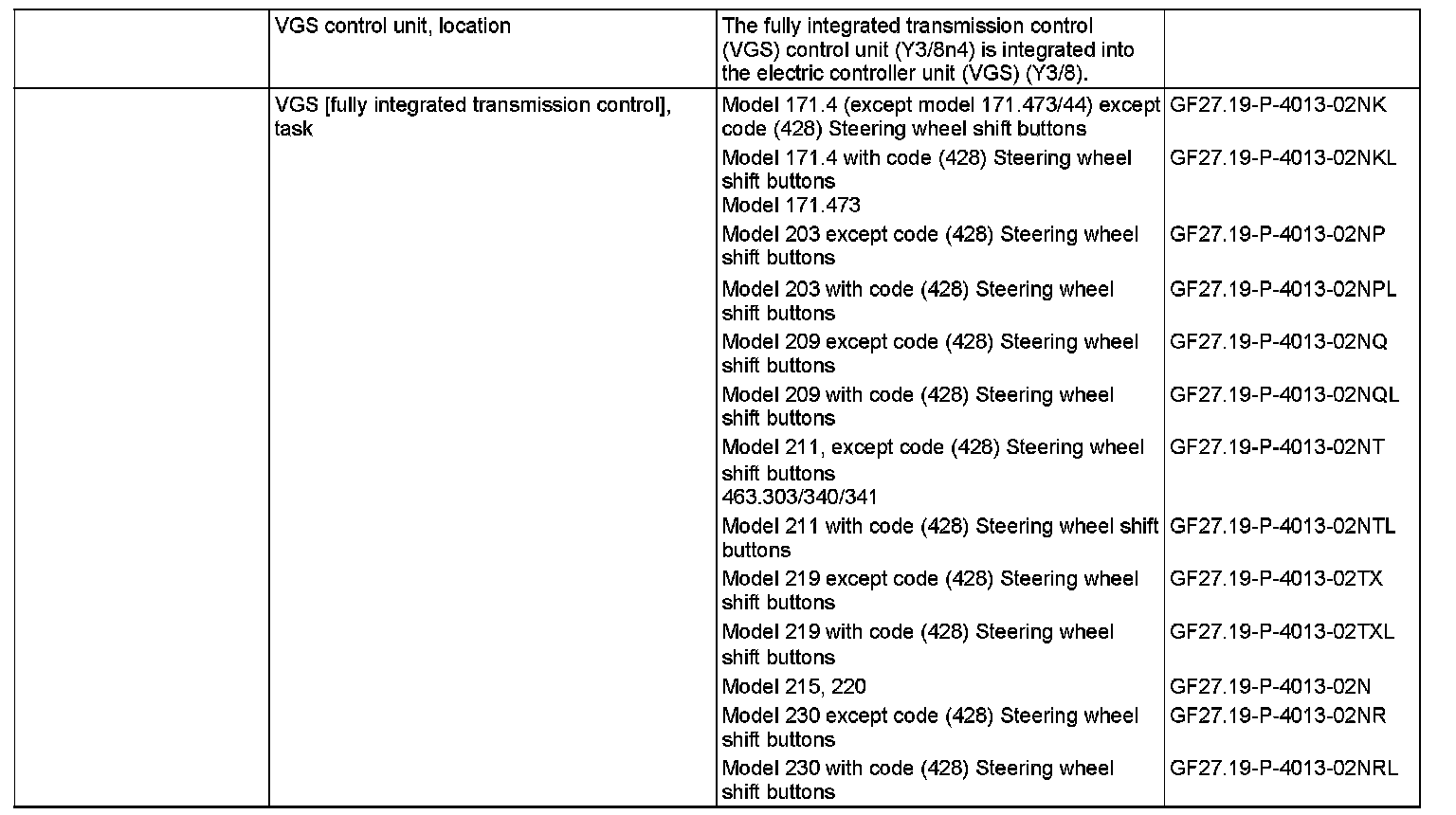

GF27.19-P-4013N VGS control unit, location/task
- TRANSMISSION 722.9

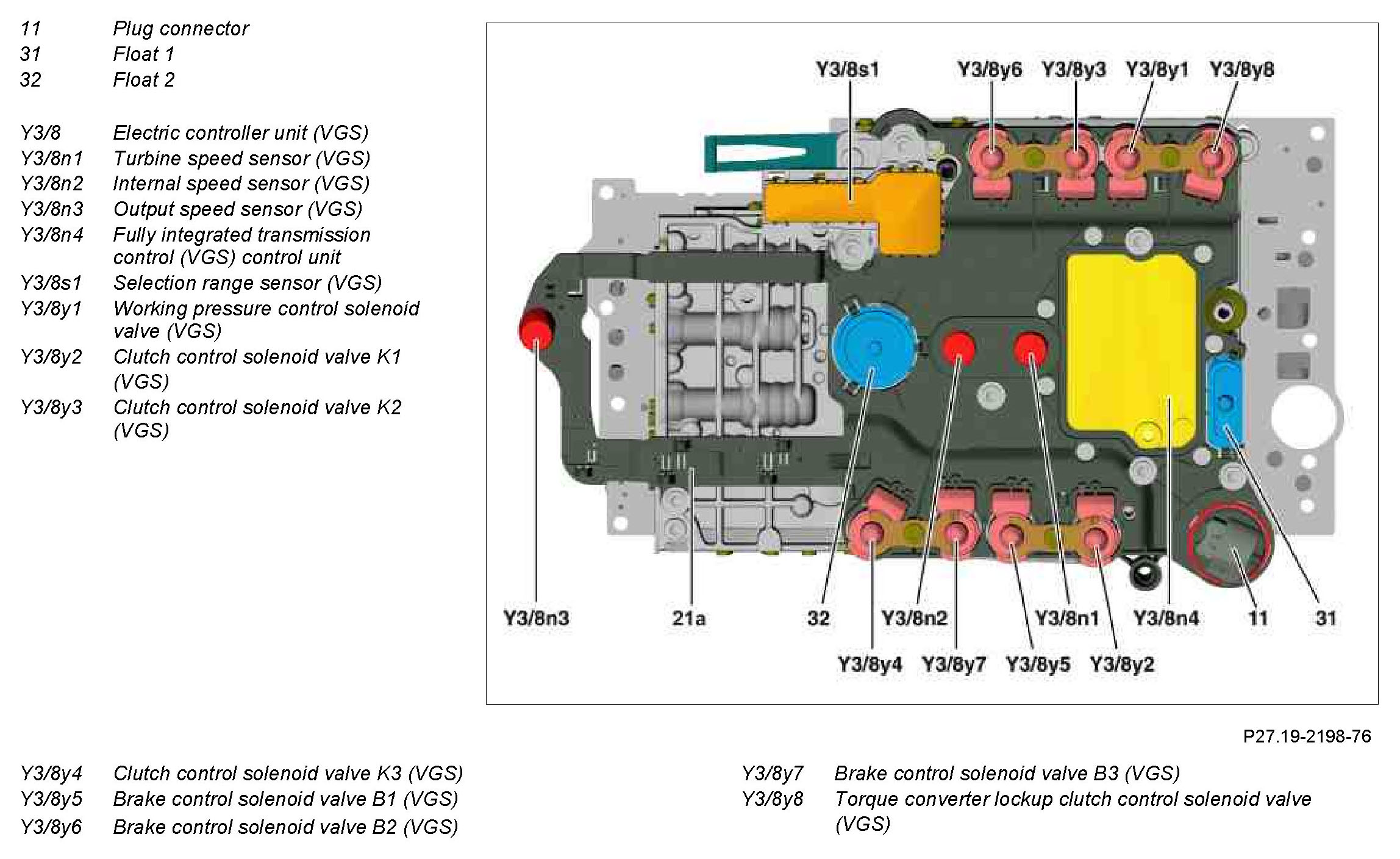

Component Identification:
