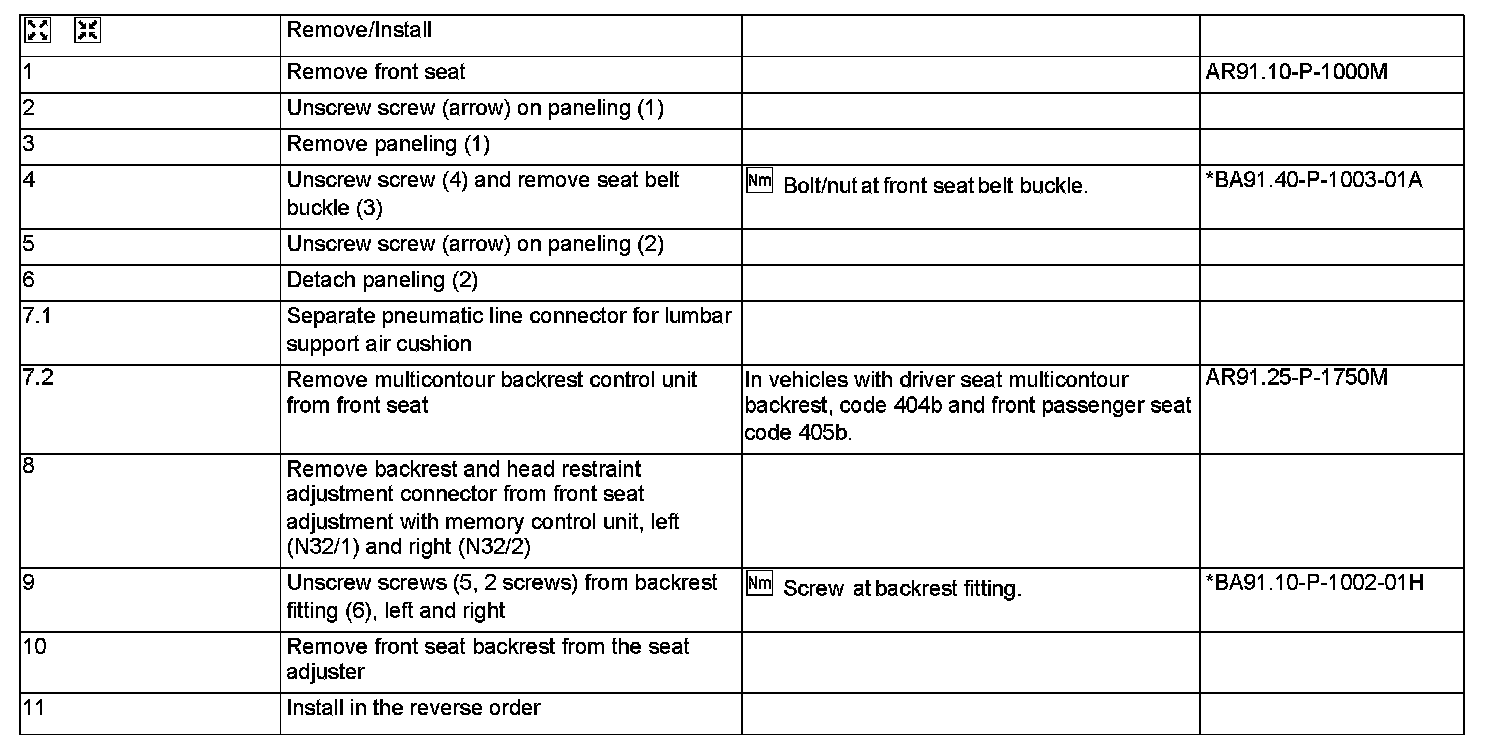

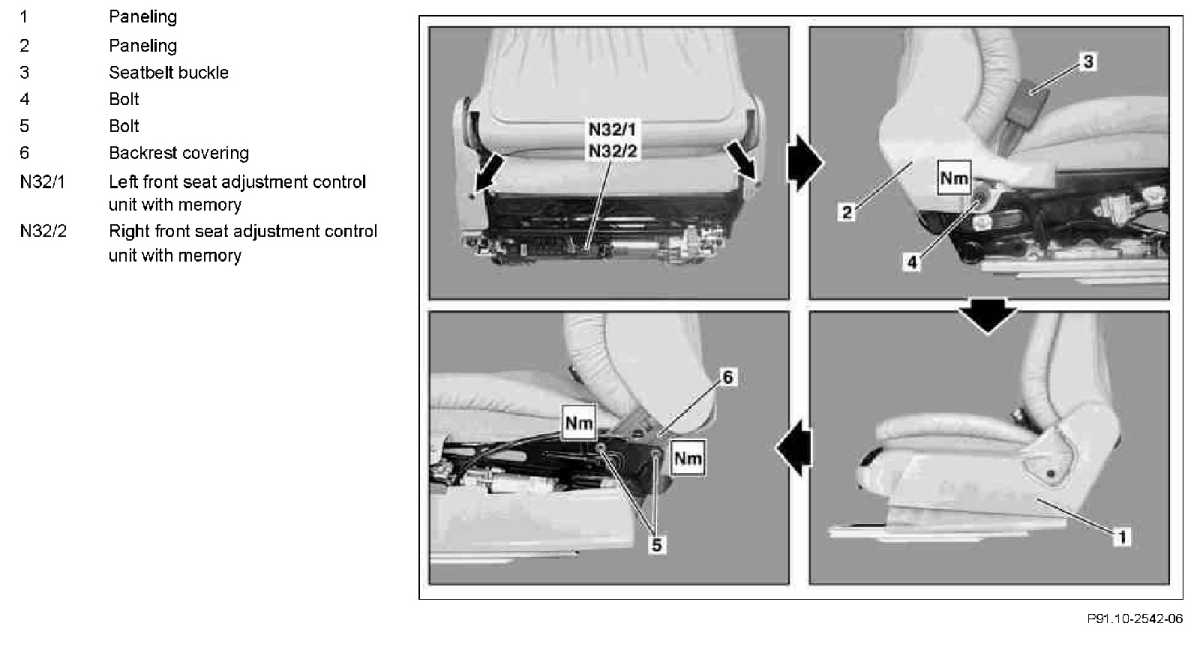

AR91.10-P-1060M Remove/Install Front Seat Backrest
AR91.10-P-1060M Remove/Install Front Seat Backrest
AR91.10-P-1060M Remove/Install Front Seat Backrest

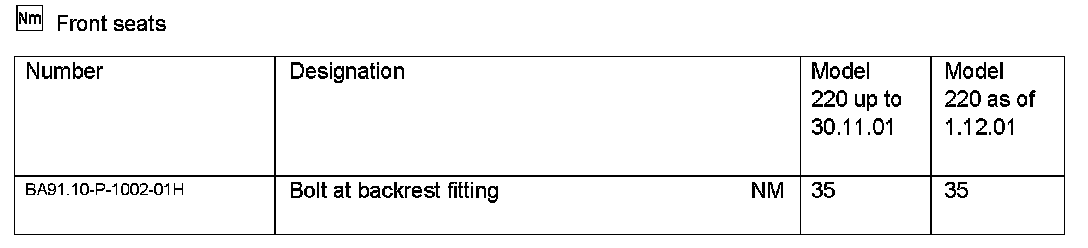

Front Seats:

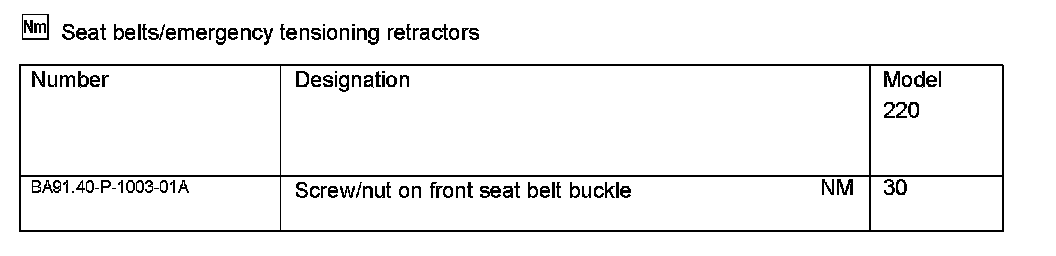

Seat Belts/Emergency Tensioning Retractors:
