Drive Belt: Diagrams

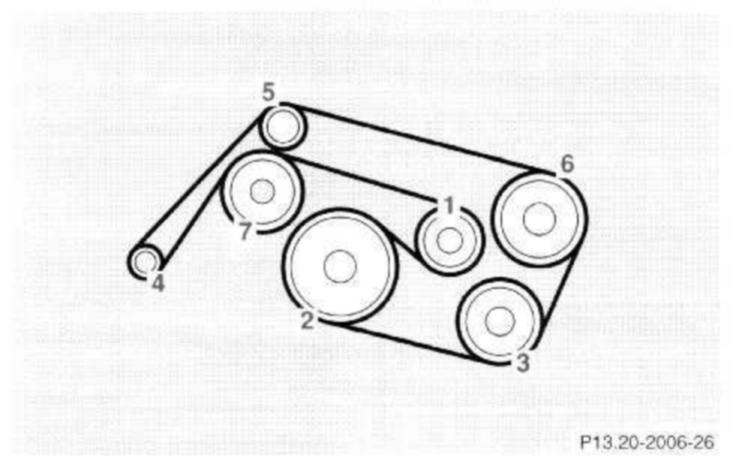

Layout of Poly-V-Belt Drive:



1 Automatic belt tensioner
2 Crankshaft
3 Air conditioner compressor
4 Generator (alternator)
5 Idler pulley
6 Power steering pump
7 Coolant pump fan
