AR05.30-P-4510-01VT Checking and Machining Dimensions For Valve Seats



AR05.30-P-4510-01VT Checking and machining dimensions for valve seats

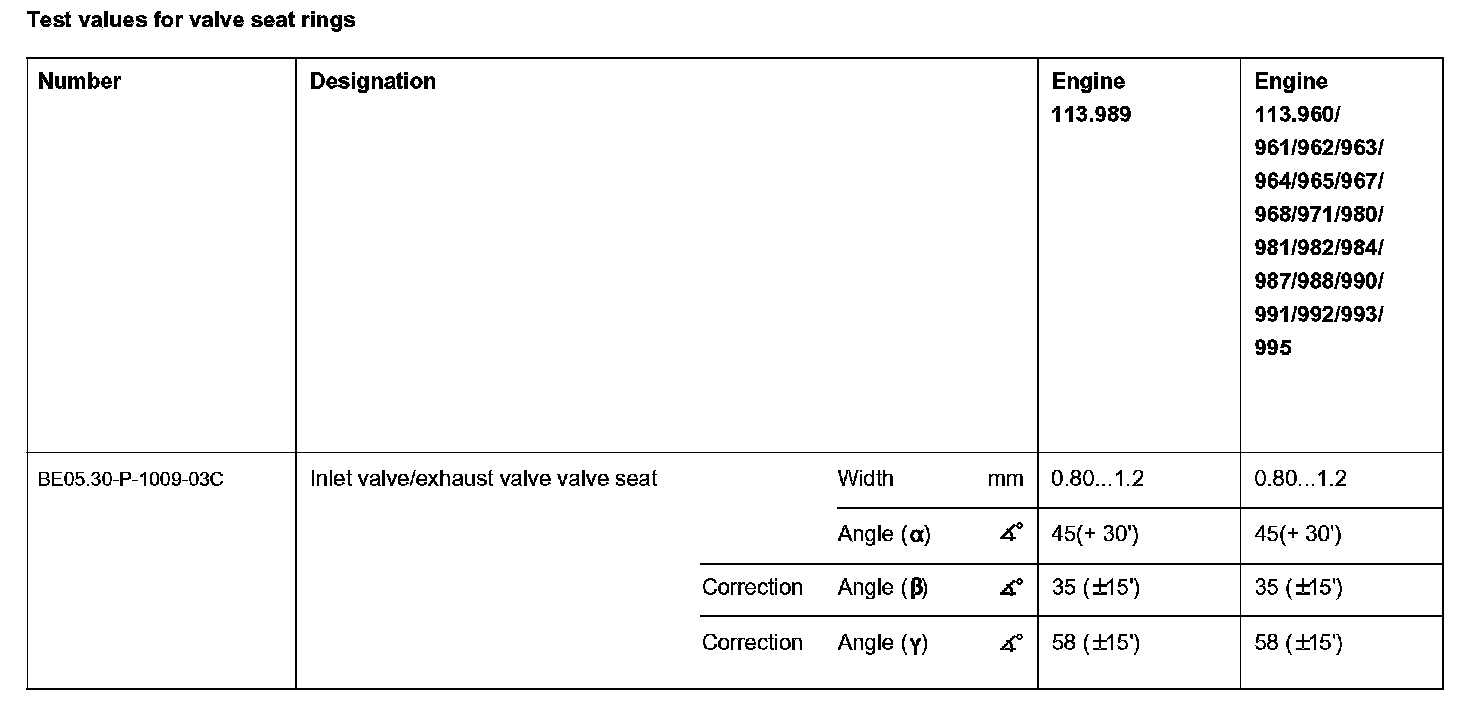

Test values for valve seat rings:

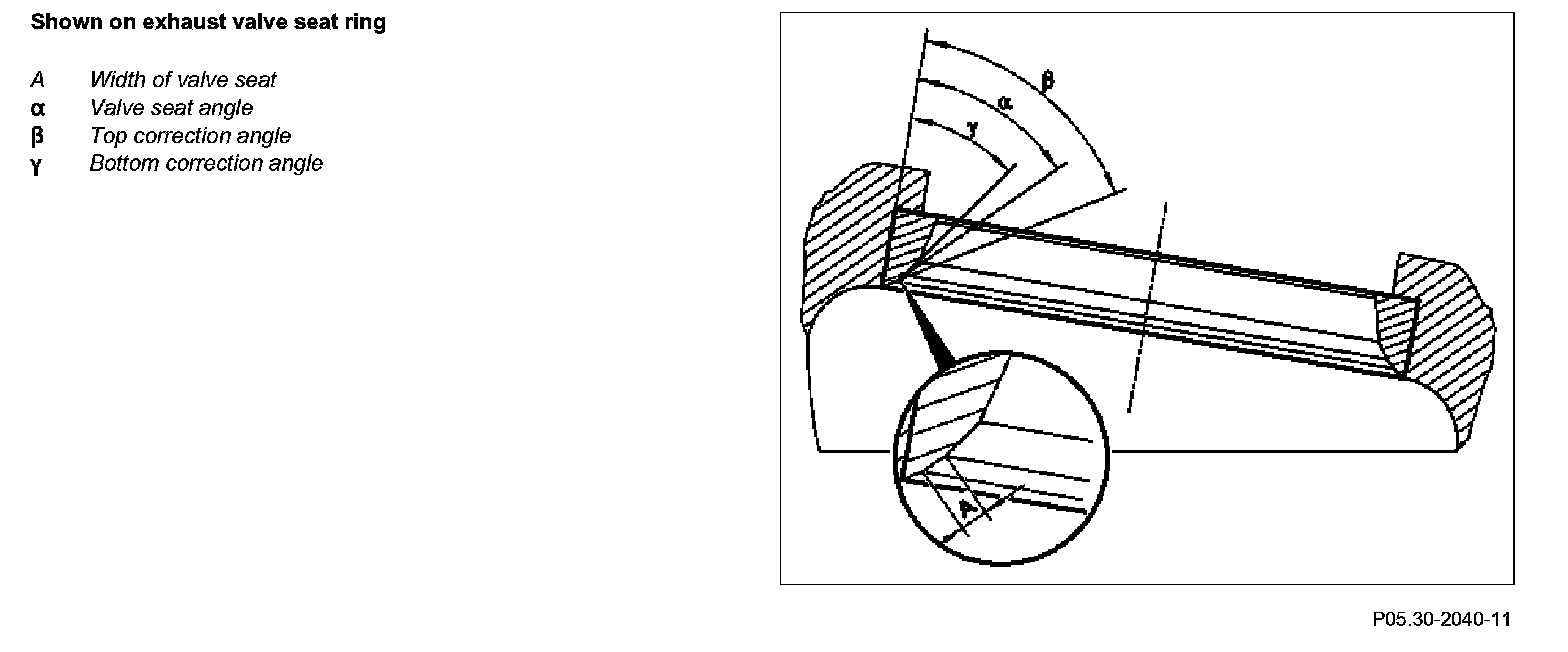

Component Identification:
