AN91.25-P-0001A Retrofitting Multi-Contour Seat
AN91.25-P-0001A Retrofitting Multi-Contour Seat
AN91.25-P-0001A Retrofitting Multi-contour Seat

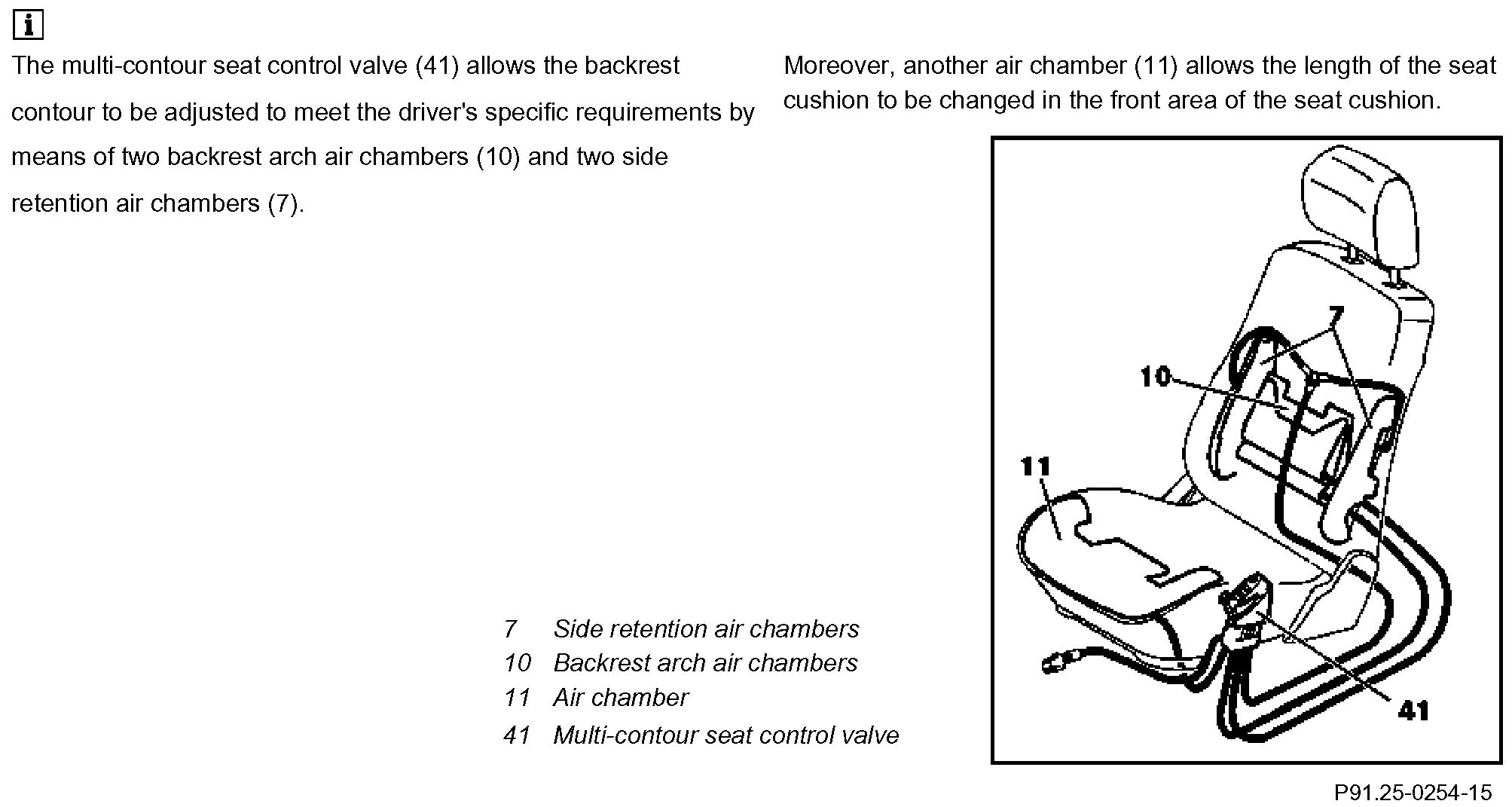

Component Identification:

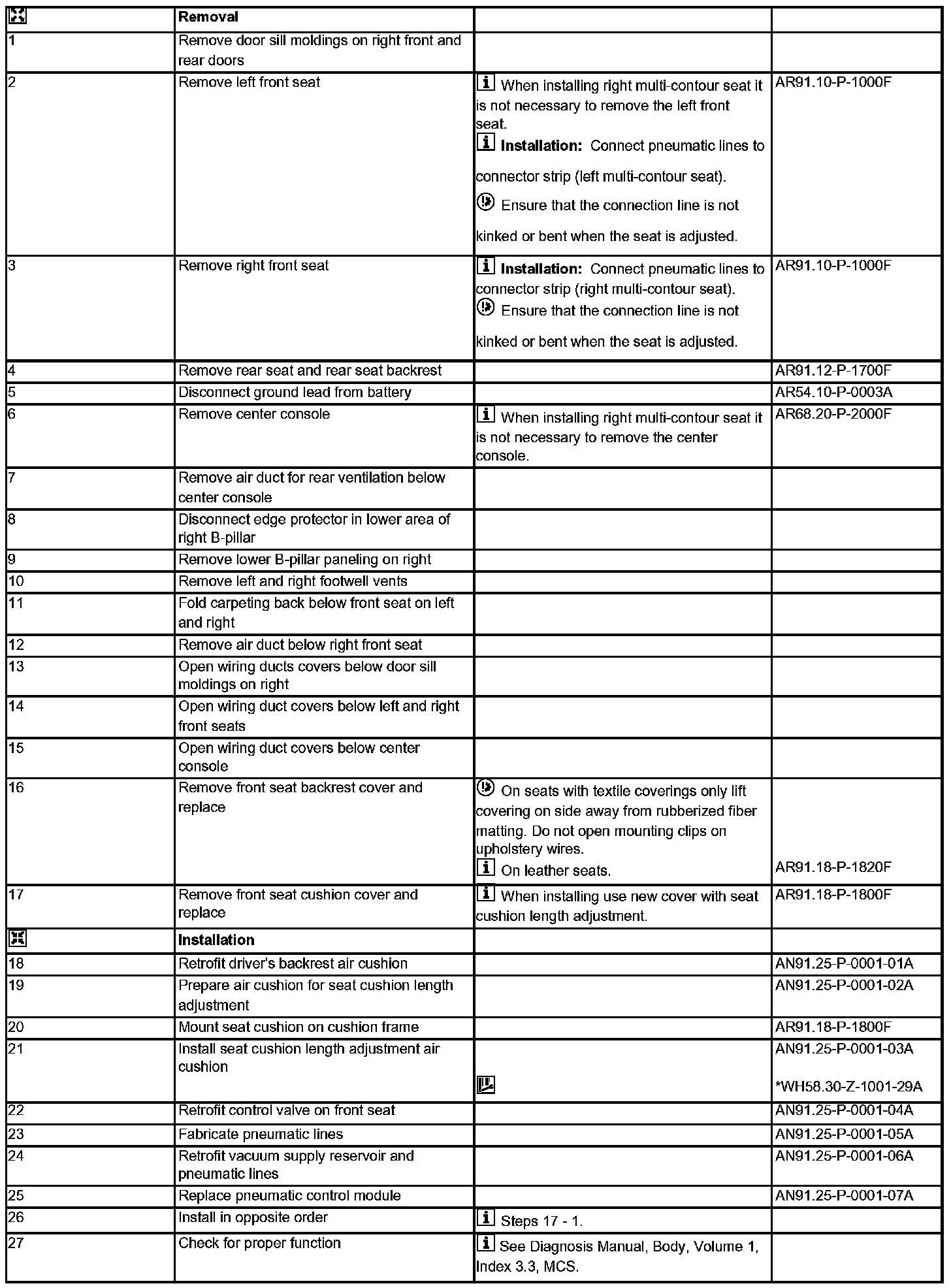

Steps 1 - 27:

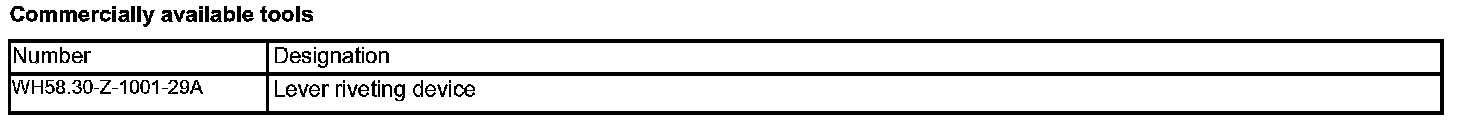

Commercially Available Tools:
Parts Ordering Notes:
