AR68.30-P-4580F Remove/Install and Disassembling Rear Shelf
AR68.30-P-4580F Remove/Install and Disassembling Rear Shelf
AR68.30-P-4580F Removing, Installing And Disassembling
Rear Shelf

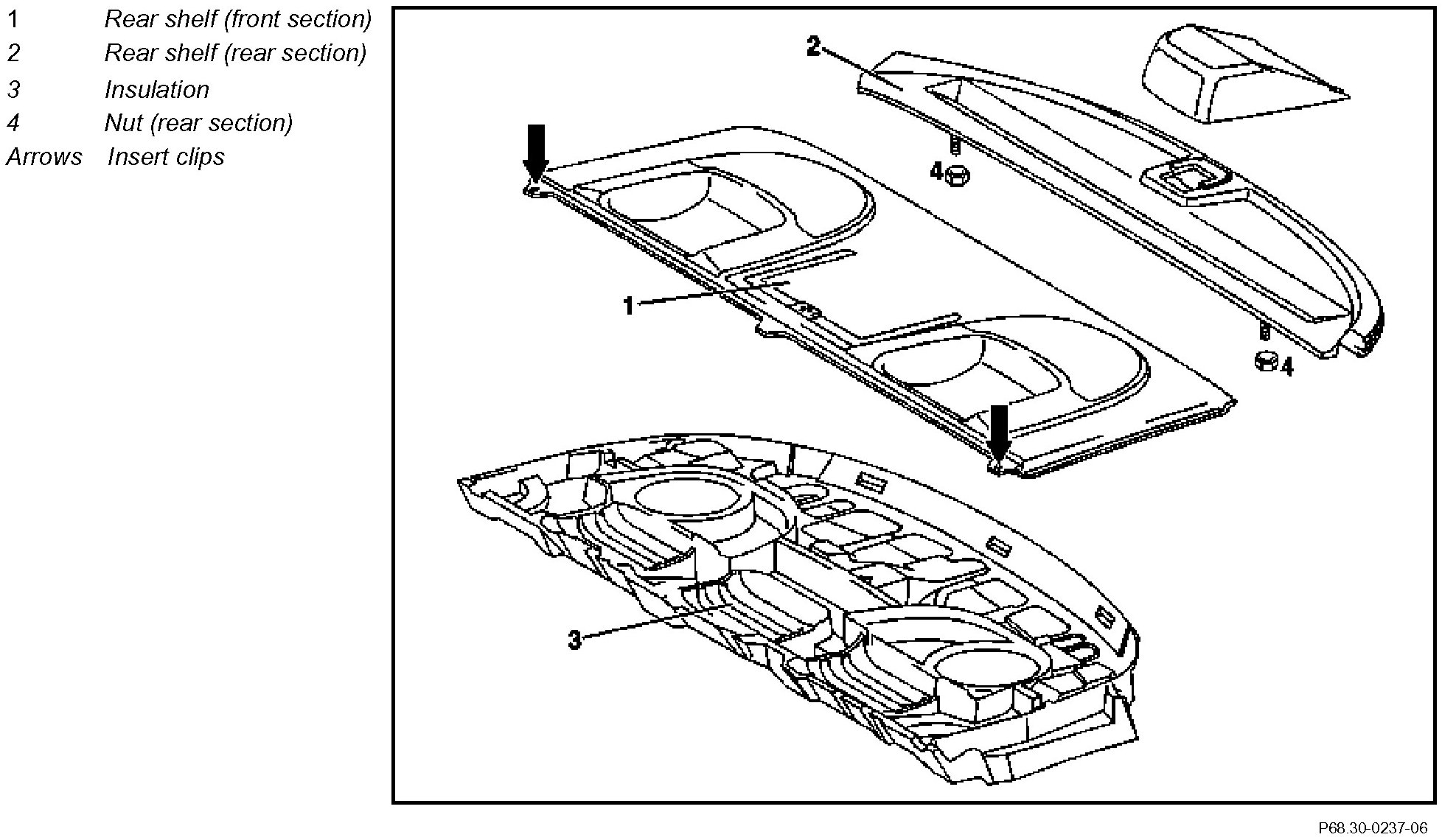

Component Identification:

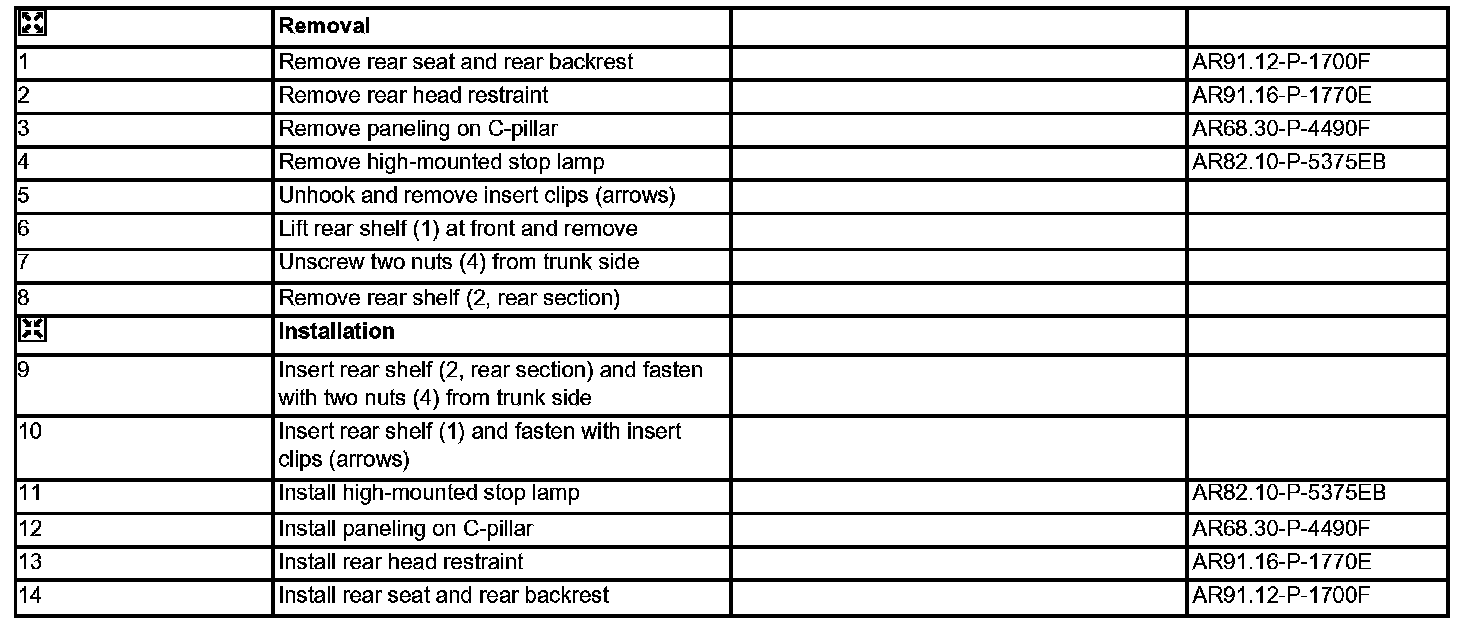

Steps 1 - 14:
