Curiosii for ever!: Car repair manuals for everyone.
Home >> Mercedes Benz >> 2000 >> E 320 4MATIC Sedan (210.082) V6-3.2L (112.941) >> Repair and Diagnosis >> Heating and Air Conditioning >> Heater Control Valve >> Service and Repair

Heater Control Valve: Service and Repair



Removing and Installing Duovalve

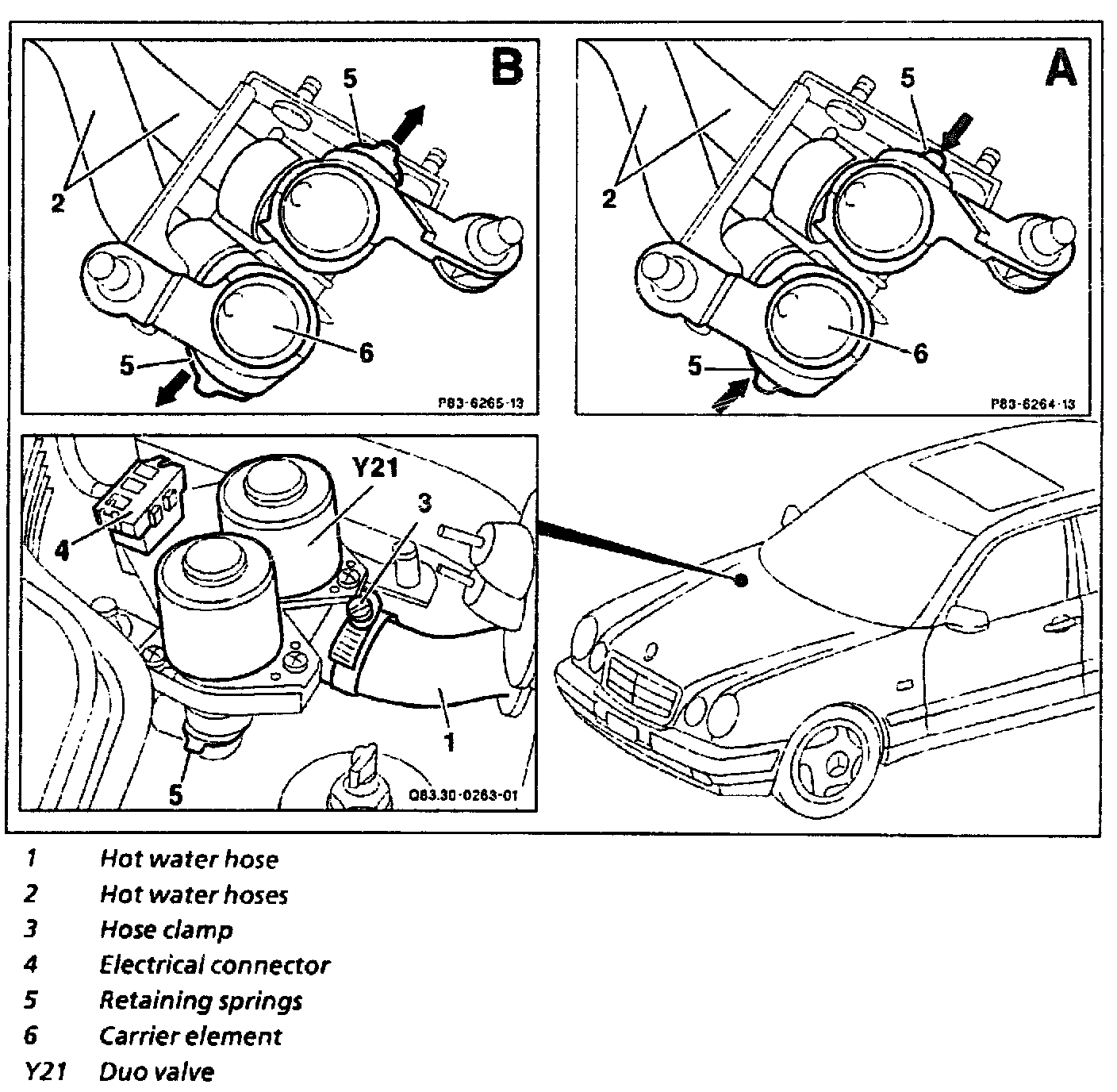

Component Identification

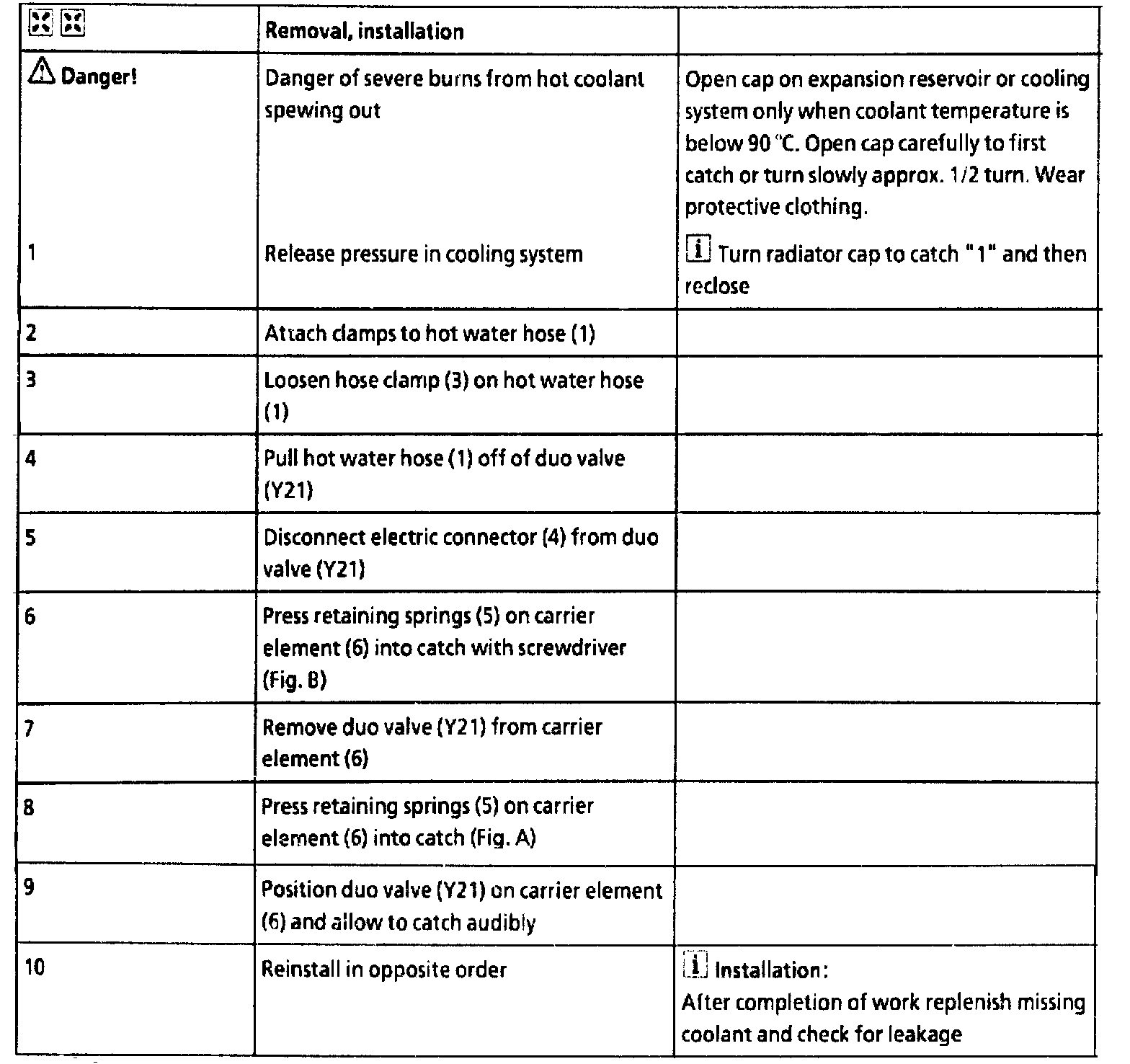

Removal, installation
