Curiosii for ever!: Car repair manuals for everyone.
Home >> Mercedes Benz >> 2000 >> E 320 4MATIC Sedan (210.082) V6-3.2L (112.941) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Component Tests and General Diagnostics >> Loudspeaker System (LS) >> With Standard Loudspeaker System >> Electrical Test Program >> Component Locations - Section 21

Component Locations - Section 21

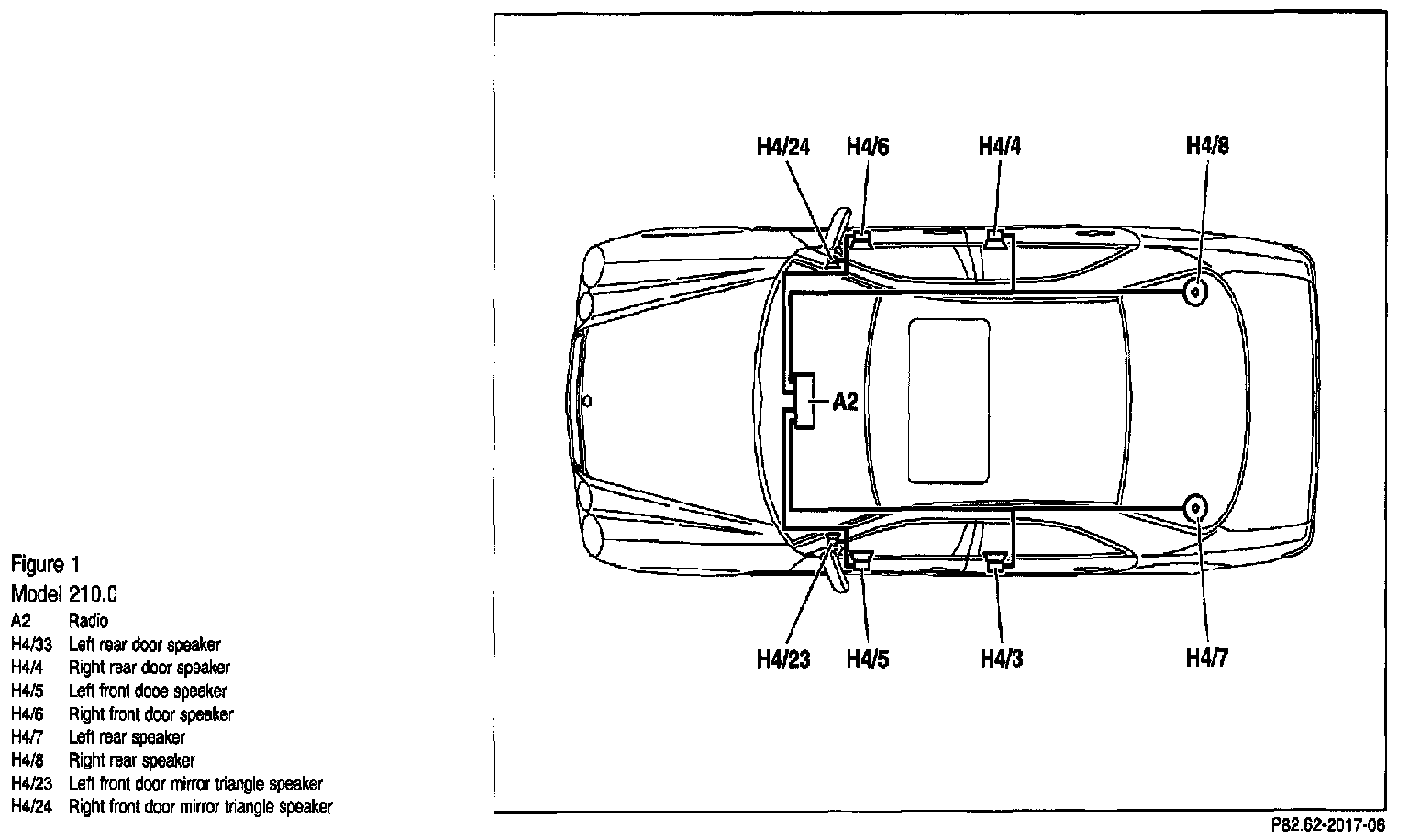

Sedan

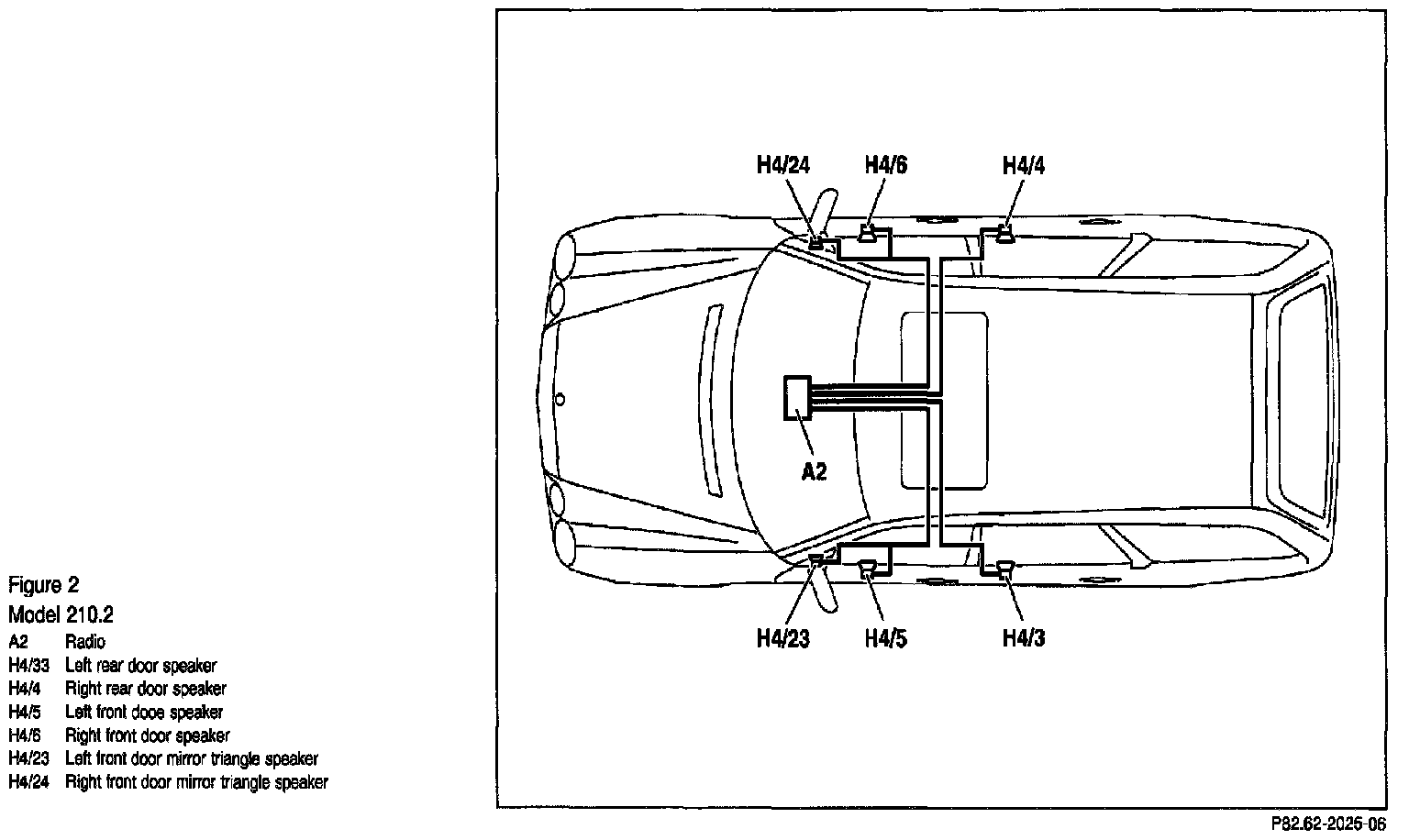

Wagon
