Drive Belt: Diagrams

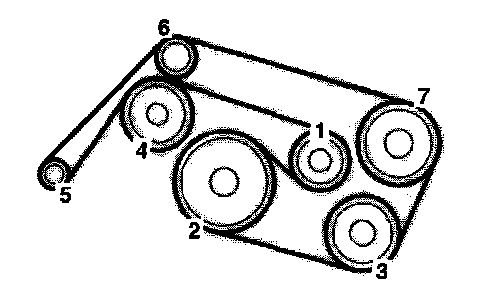

LAYOUT OF POLY-V-BELT DRIVE:





1 Automatic belt tensioner

2 Crankshaft

3 Air conditioner compressor

4 Coolant pump, fan

5 Generator (alternator)

6 Idler pulley

7 Power steering pump
