AR67.30-P-4000KA Remove/Install Rear Side Window

AR67.30-P-4000KA Remove/Install Rear Side Window







DANGER: Risk of injury due to hands being crushed when window is not secured
- Secure window against falling down

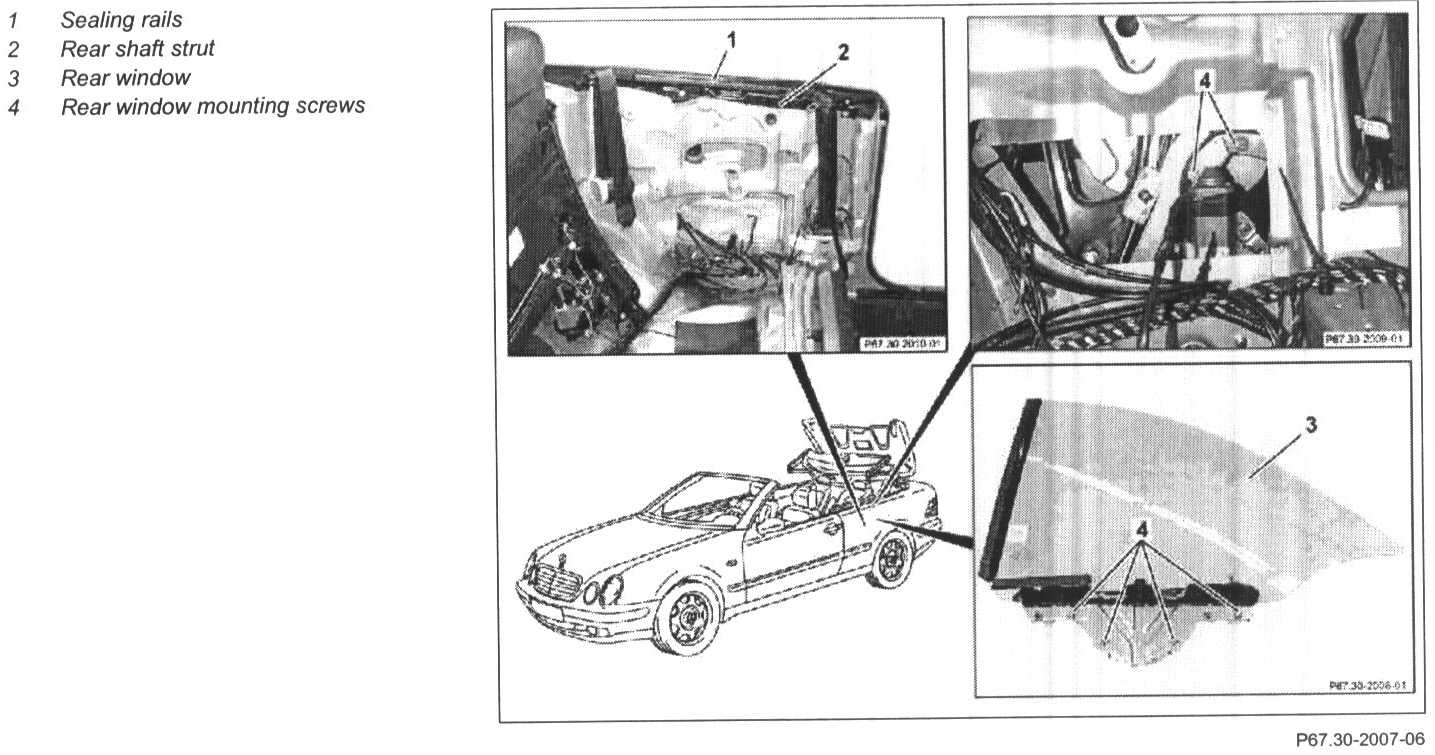

1 Remove rear passenger compartment side trim panel
2 Remove inner and outer sealing rail (1)

NOTE: Open soft top compartment cover

3 Remove rear shaft strut (2)
4 Unscrew screws (4)

NOTE: Move rear side window (3) up until screws (4) are accessible

5 Remove rear side window (3) upward

6 Install in the reverse order

NOTE: Installation: Adjust rear side window

Gap
Front door side window to soft top: Dimension "Z": 9.0 ± 1.0
Front door side window to rear side window: Dimension "N": 8.0 ± 2.0

See "Special Tools" given below.


Special Tools

Feeler Gage, P/N # 129 589 03 21 00:
