BE03.20-P-1000-04E Test Specifications For Crankshaft Bearing Clearance



BE03.20-P-1000-04E Test specifications for crankshaft bearing clearance

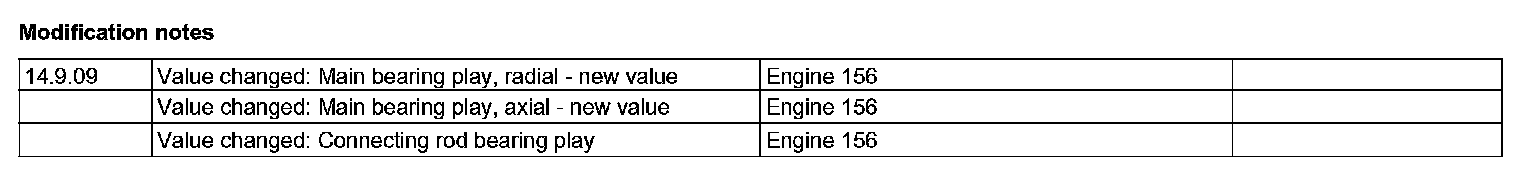

Modification notes:

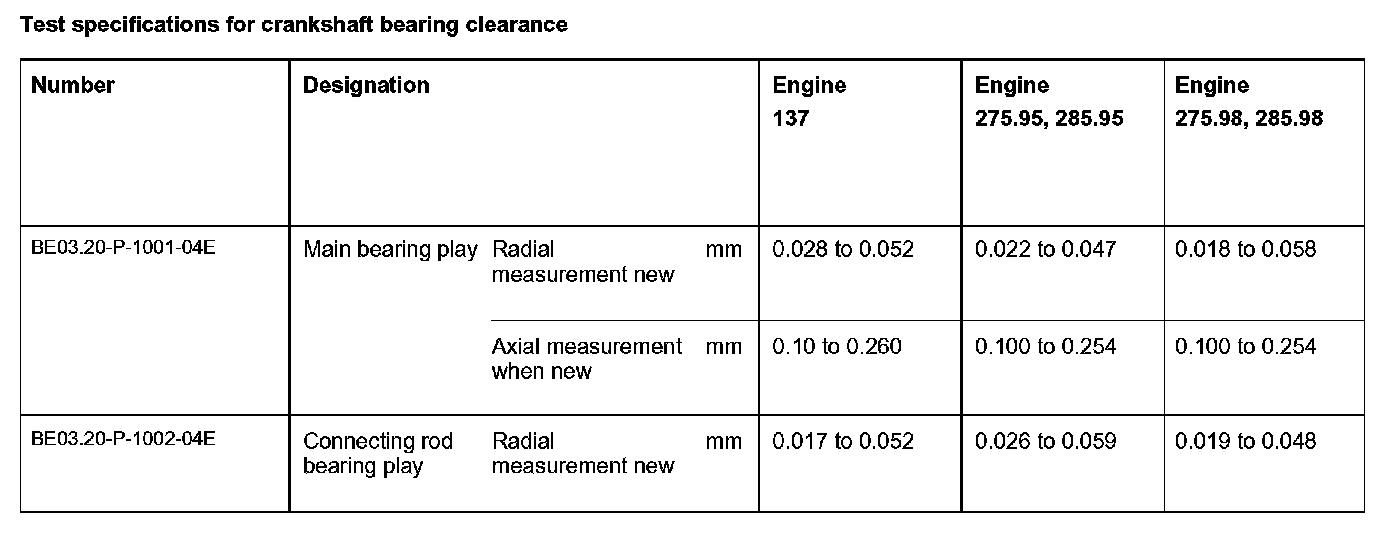

Test specifications for crankshaft bearing clearance:

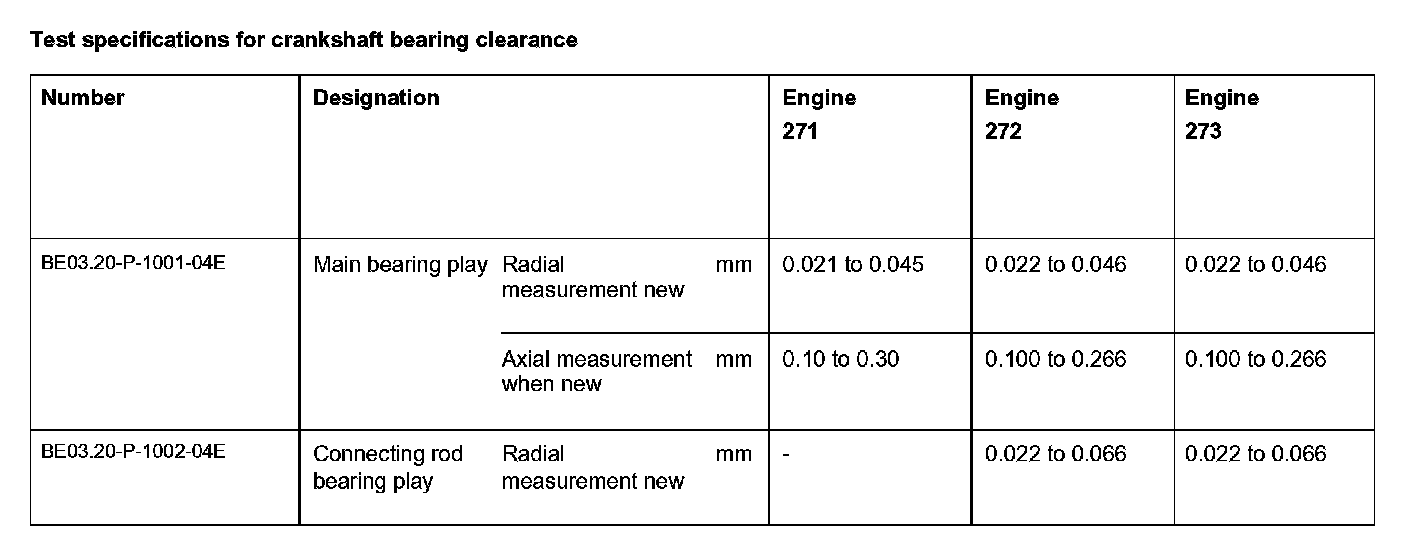

Test specifications for crankshaft bearing clearance:

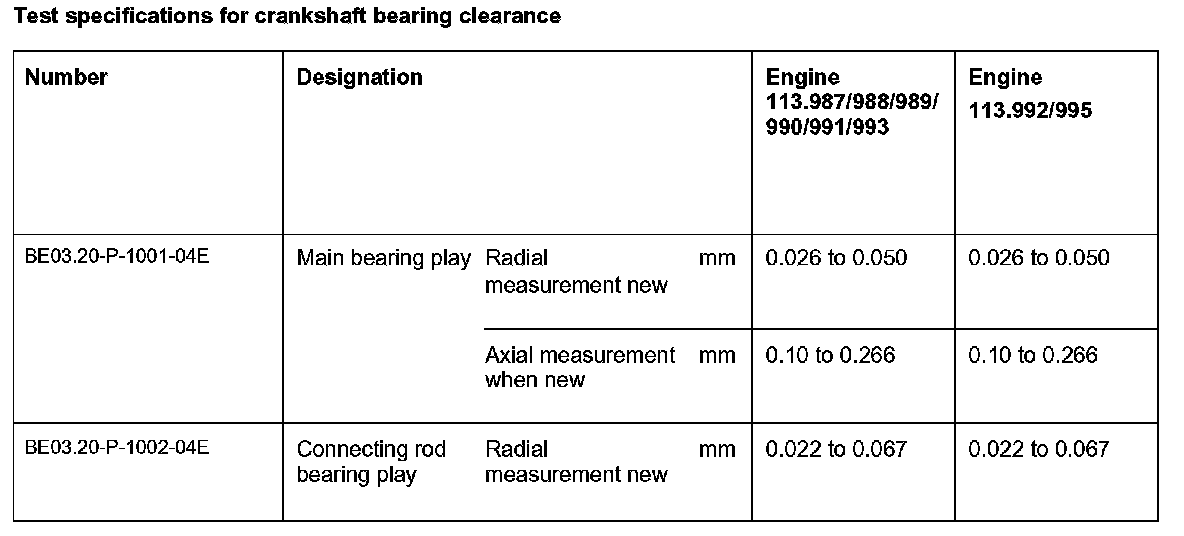

Test specifications for crankshaft bearing clearance:

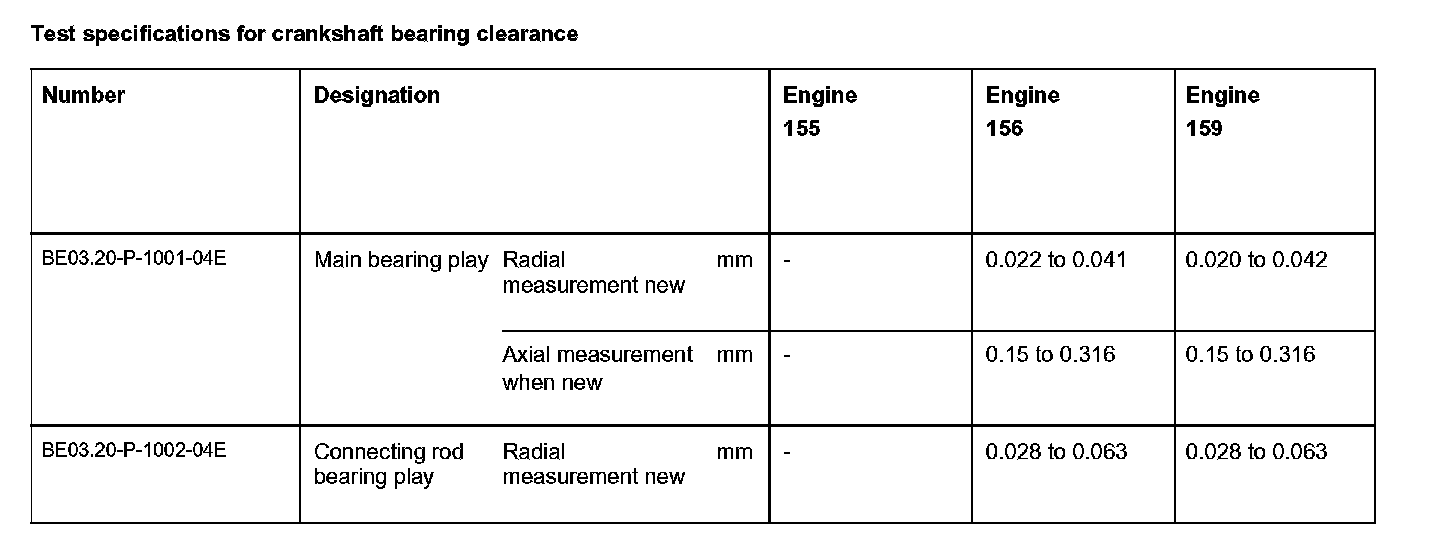

Test specifications for crankshaft bearing clearance:

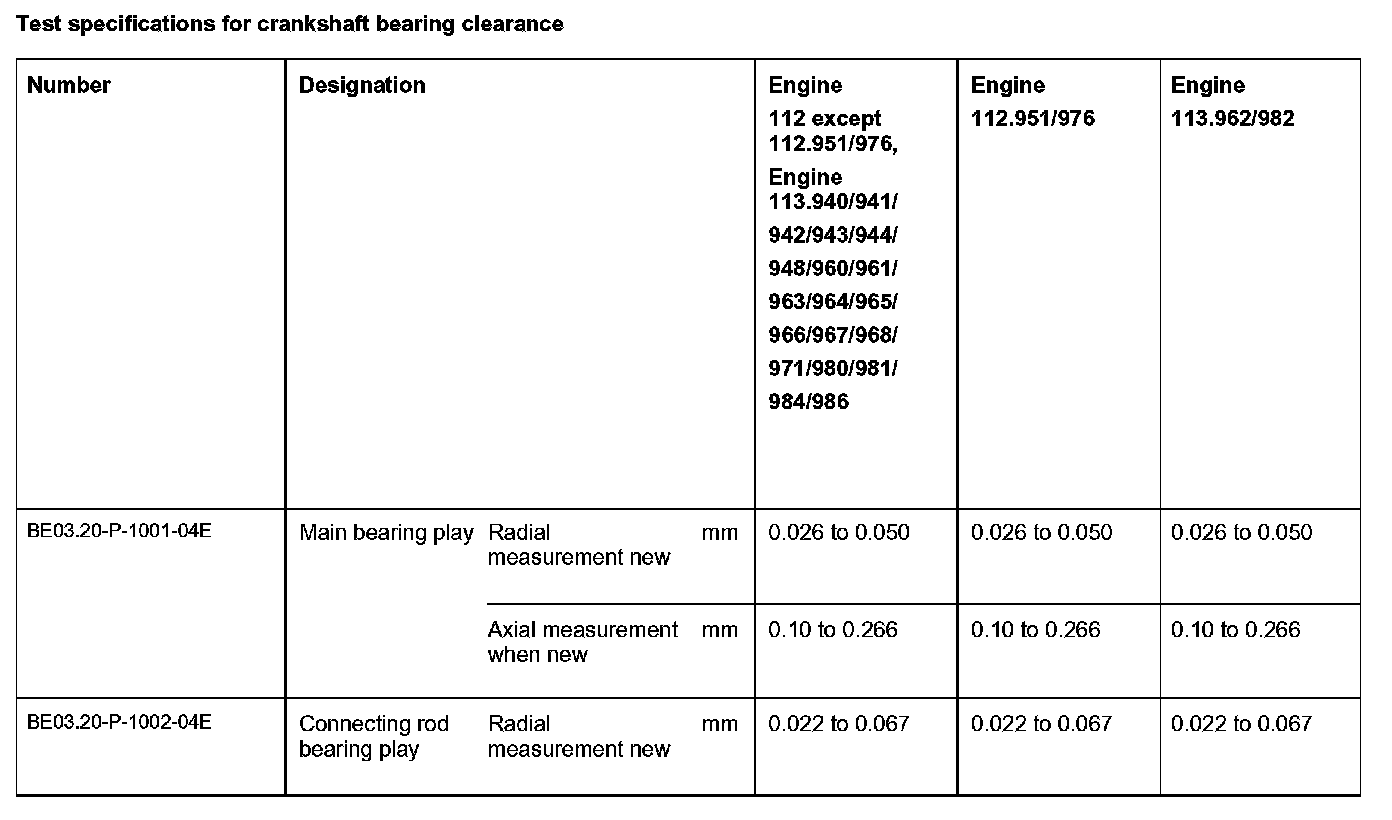

Test specifications for crankshaft bearing clearance:
