Mercedes Benz
>>
2000
>>
CLK 320 (208.365) V6-3.2L (112.940)
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Diagnostic Connector
>>
Locations

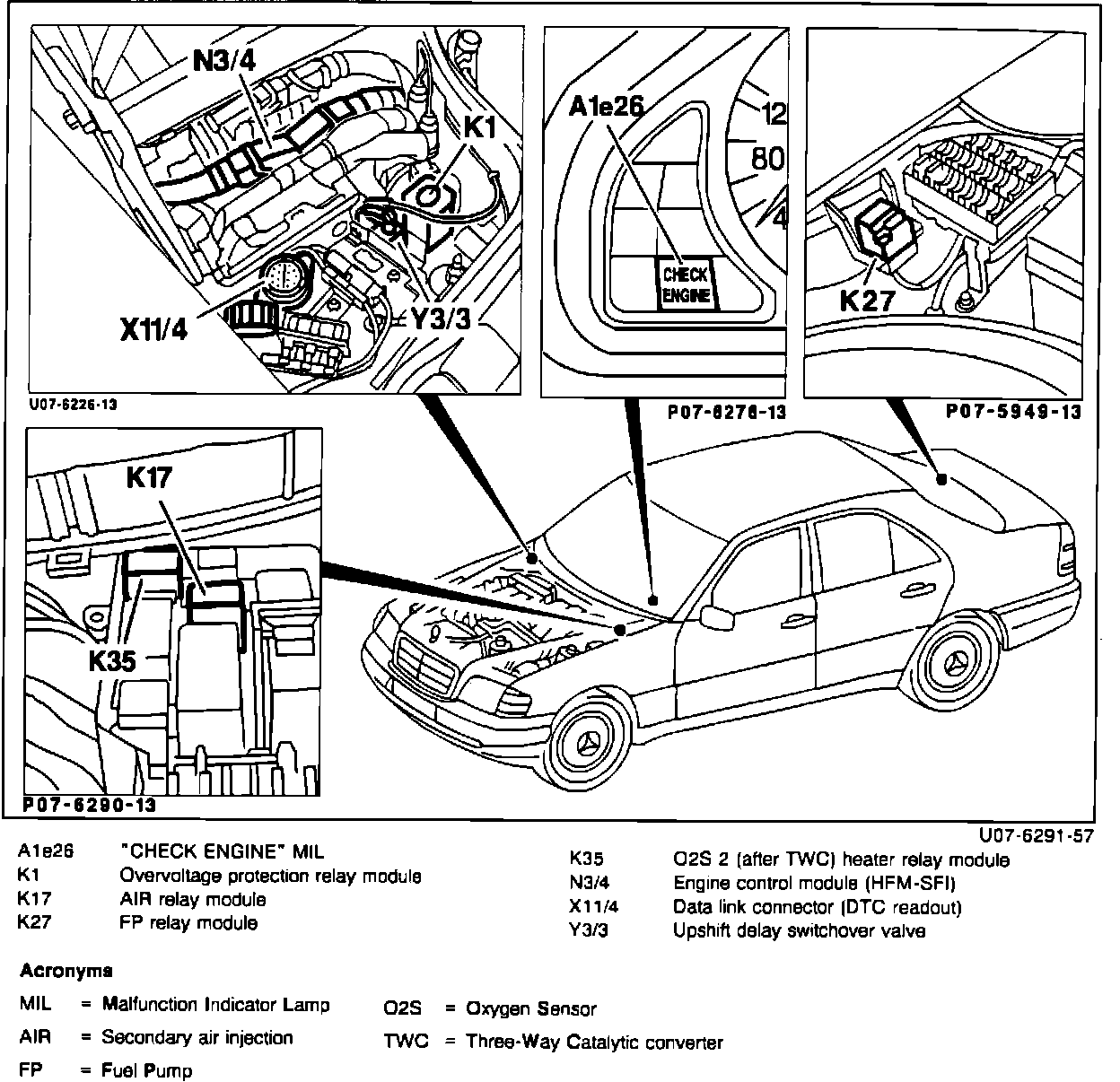

Diagnostic Connector: Locations
Figure 1:
