AR68.10-P-1150K Remove/Install Center Air Nozzle

AR68.10-P-1150K Remove/Install Center Air Nozzle







1 Remove center console

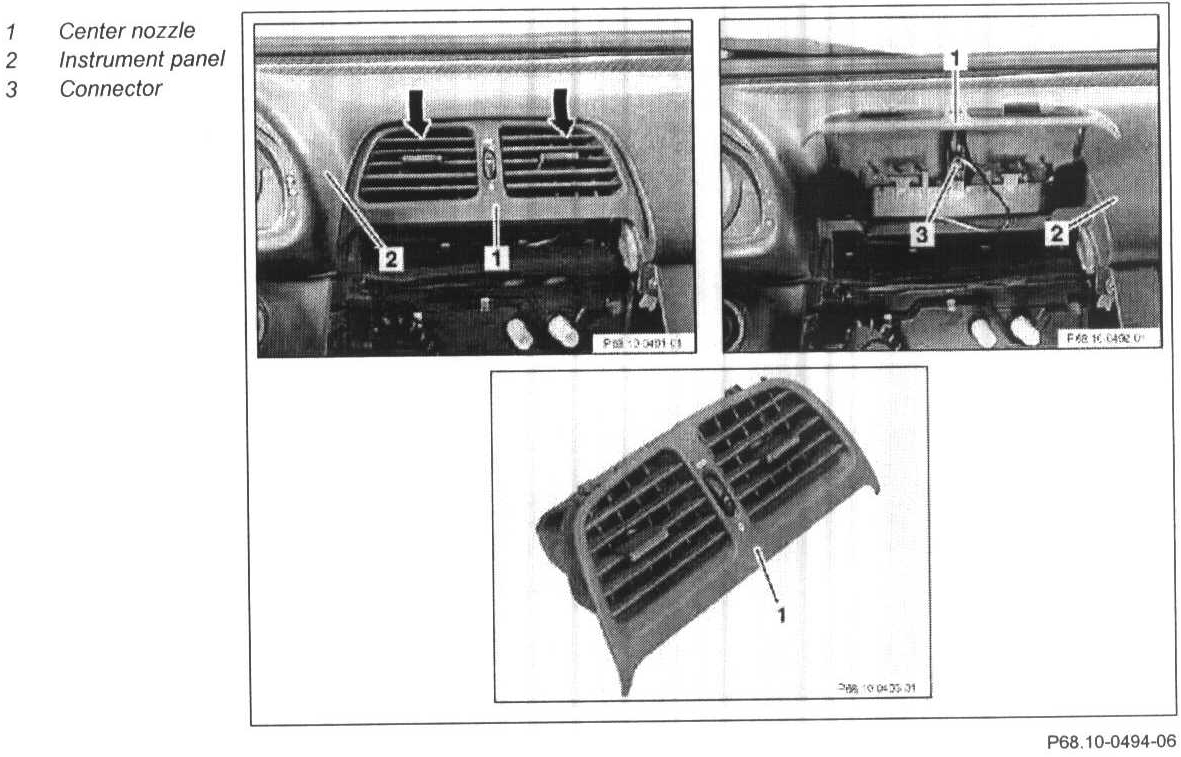

2 Pull out center nozzle (1)

CAUTION: To remove pull down catch (arrows) with small screwdriver

3 Disconnect connector (3) and lay down air nozzle (1)
4 Reinstall in opposite order
