AR68.10-P-1100K Remove/Install Side Air Nozzle

AR68.10-P-1100K Remove/Install Side Air Nozzle







1 Remove bottom section of instrument panel on driver's and passenger sides
- Driver's side
- Passenger side

2 Unscrew screw (2)
3 Pull catch (arrow) down and remove air nozzle (1)

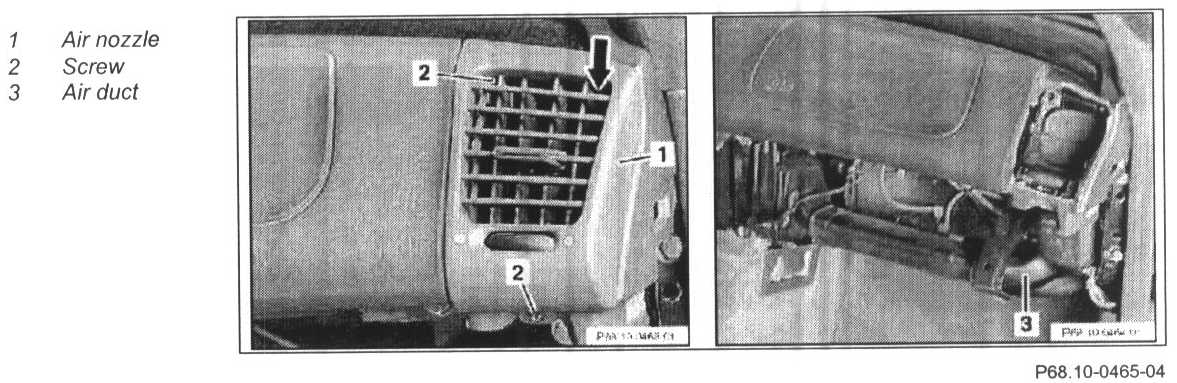

NOTE: When installing the air duct (3) check installation position and attach air nozzle (1)

4 Reinstall in opposite order
