Seat Cushion: Service and Repair
AR91.10-P-1070K Removing And Installing Driver's
Seat Cushion

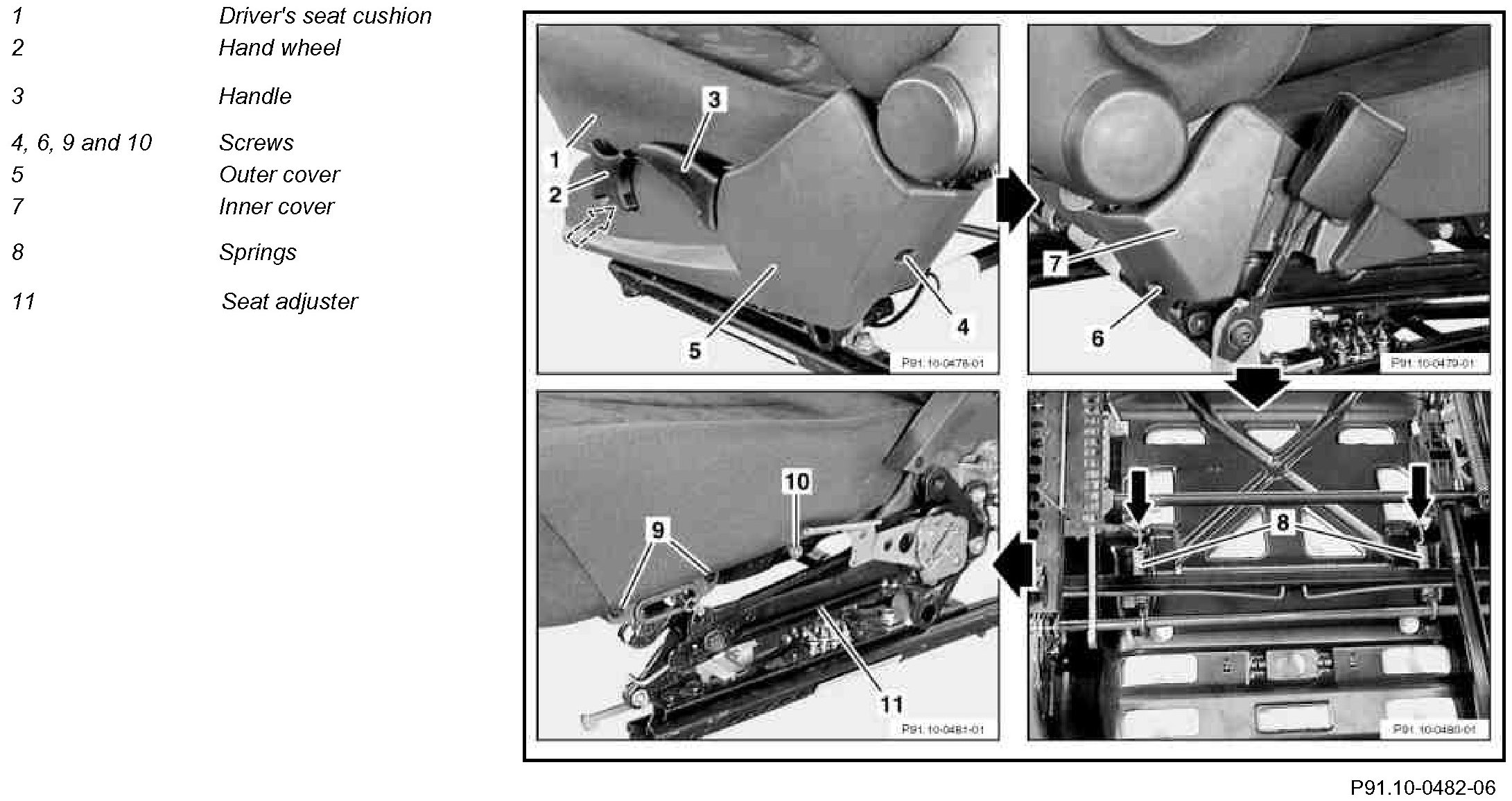

Component Identification:

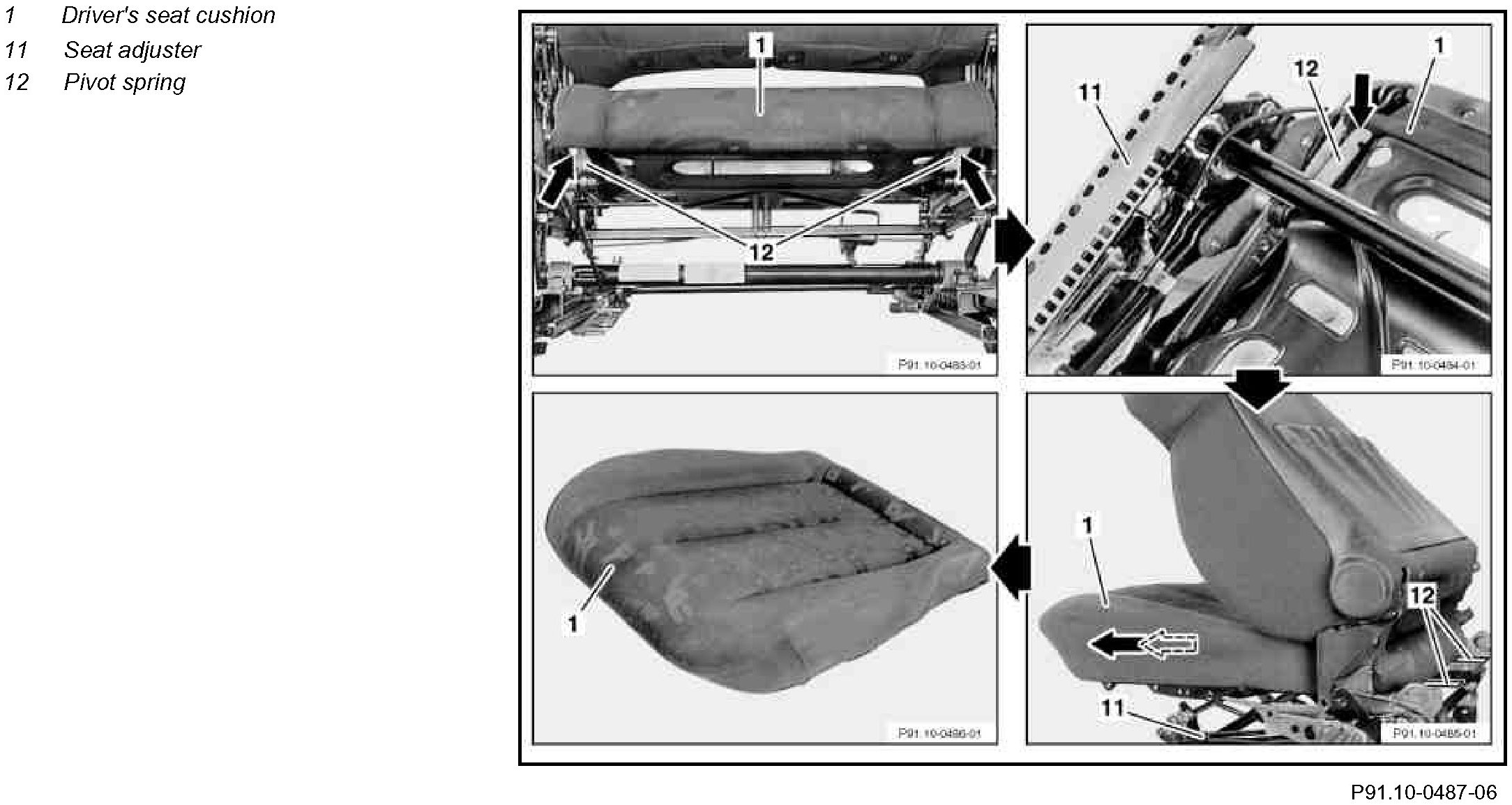

Component Identification:

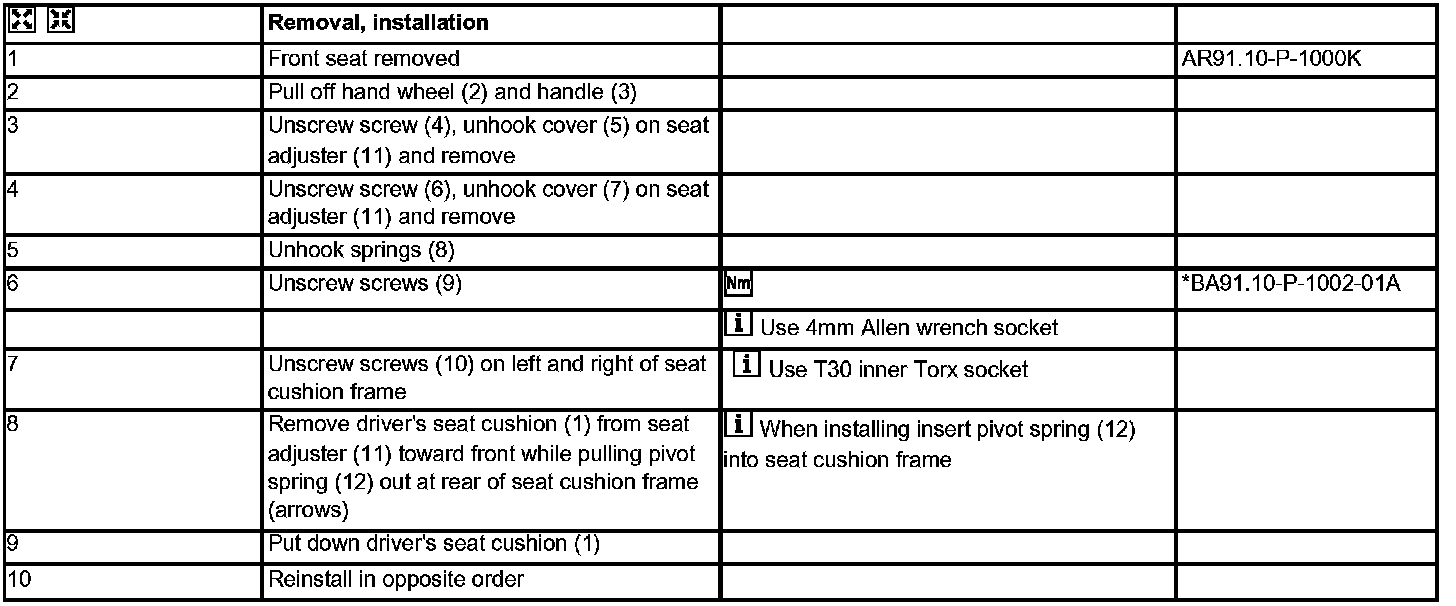

Steps 1 - 10:

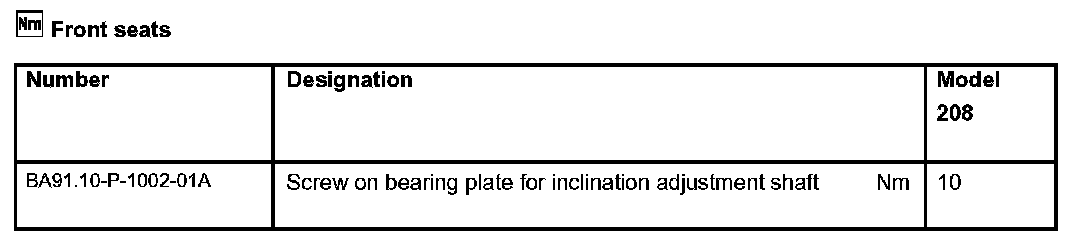

Front Seats:
