AR91.10-P-1060K Remove/Install Front Seat Backrest
AR91.10-P-1060K Remove/Install Front Seat Backrest
AR91.10-P-1060K Removing And Installing Front
Seat Backrest

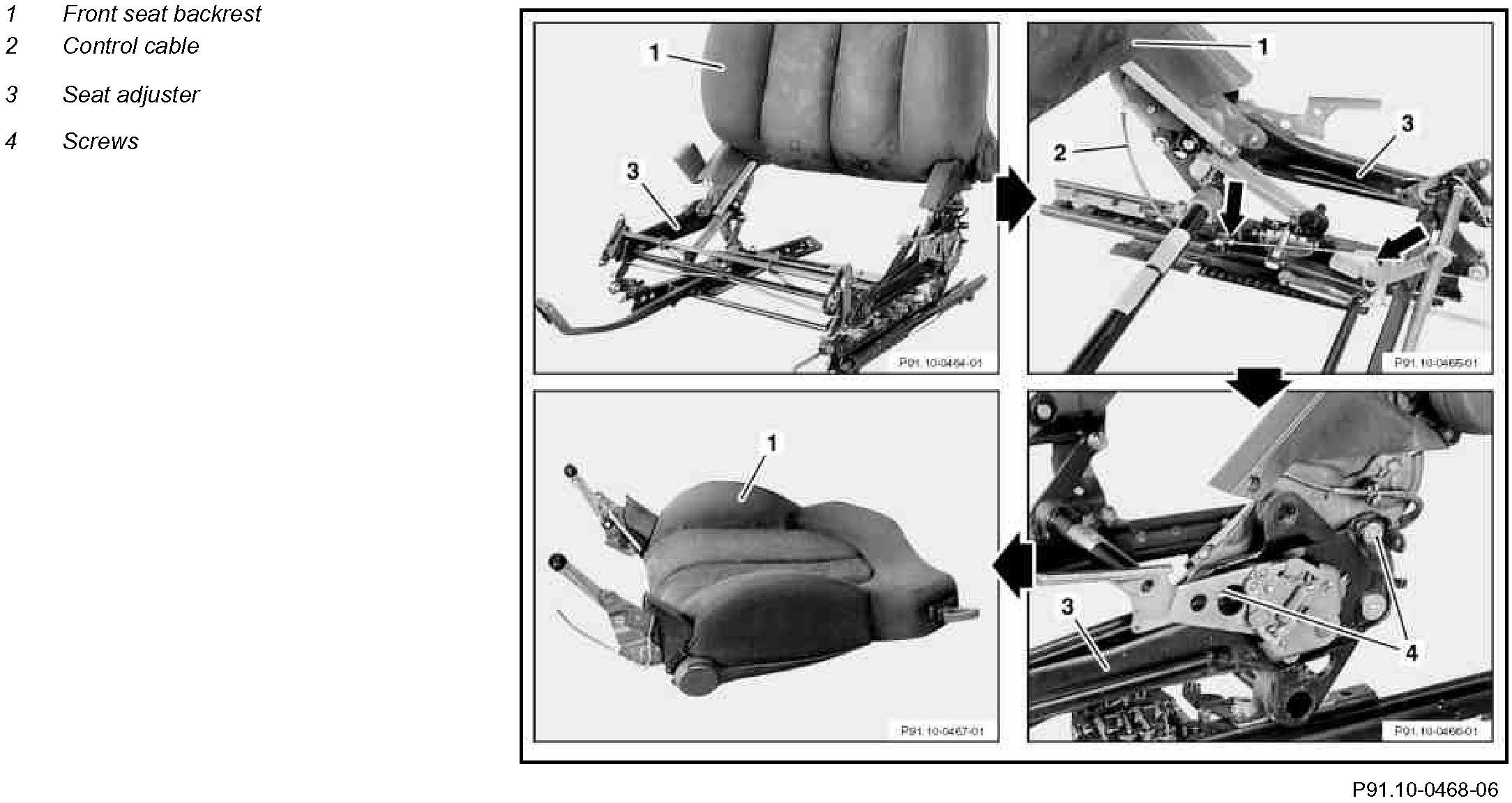

Component Identification:

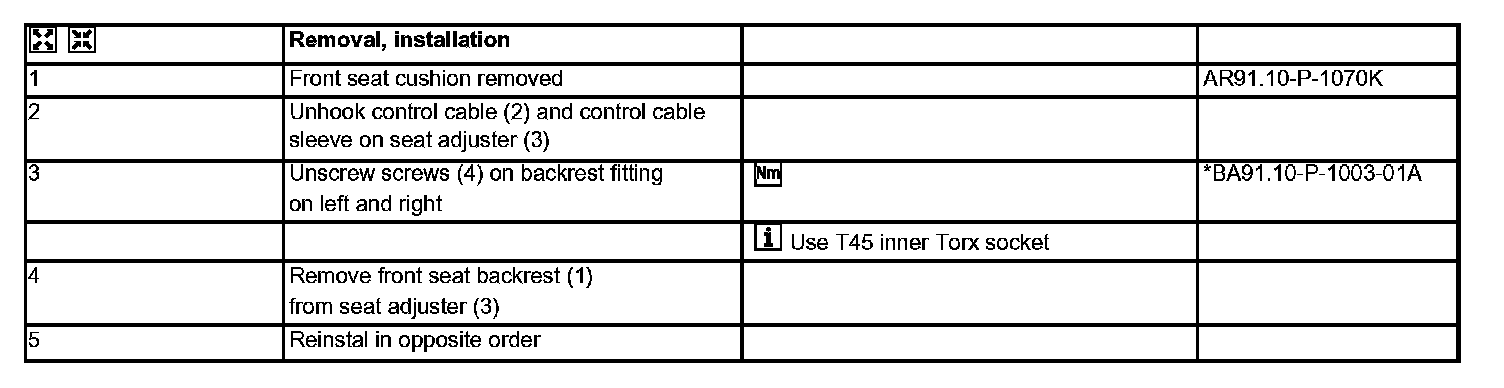

Steps 1 - 5:

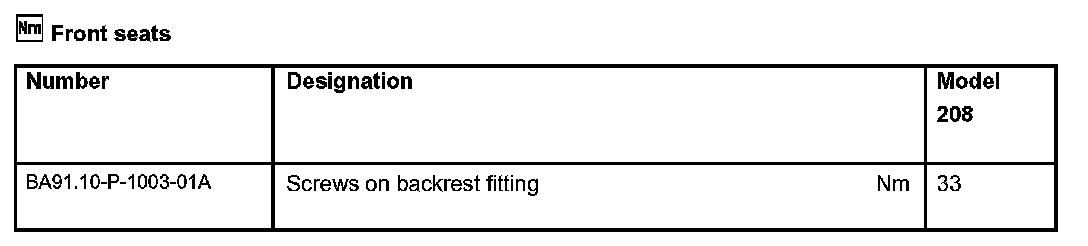

Front Seats:
