Electric Mirror, Steering Column Adj., Heated Mirrors (EMSC)
>>
ETP - Electrical Test Program
>>
Component Locations
Component Locations

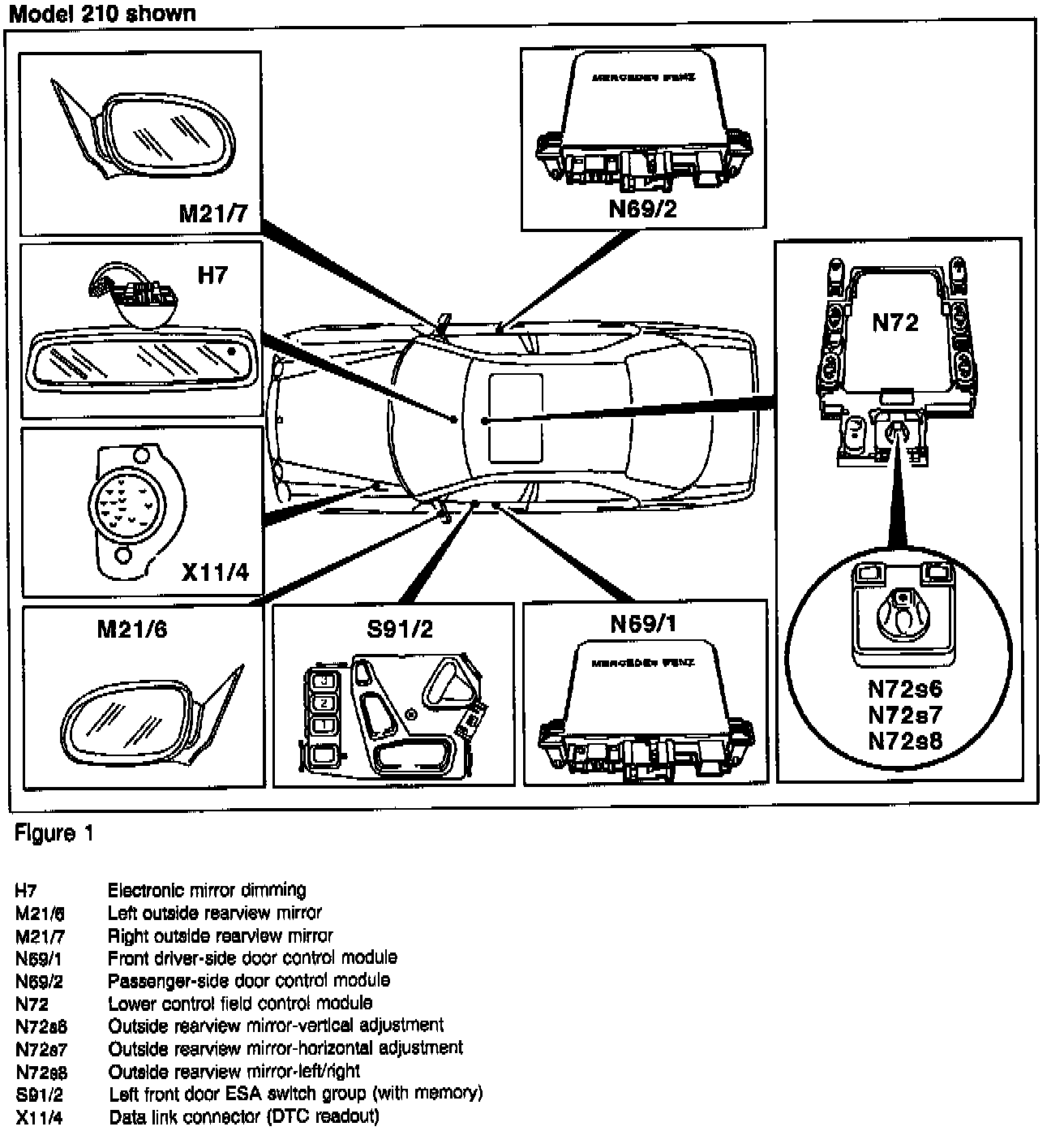

Figure 1:
Figure 2:
