Steering Column Lock: Service and Repair



Removing and Installing Steering Lock

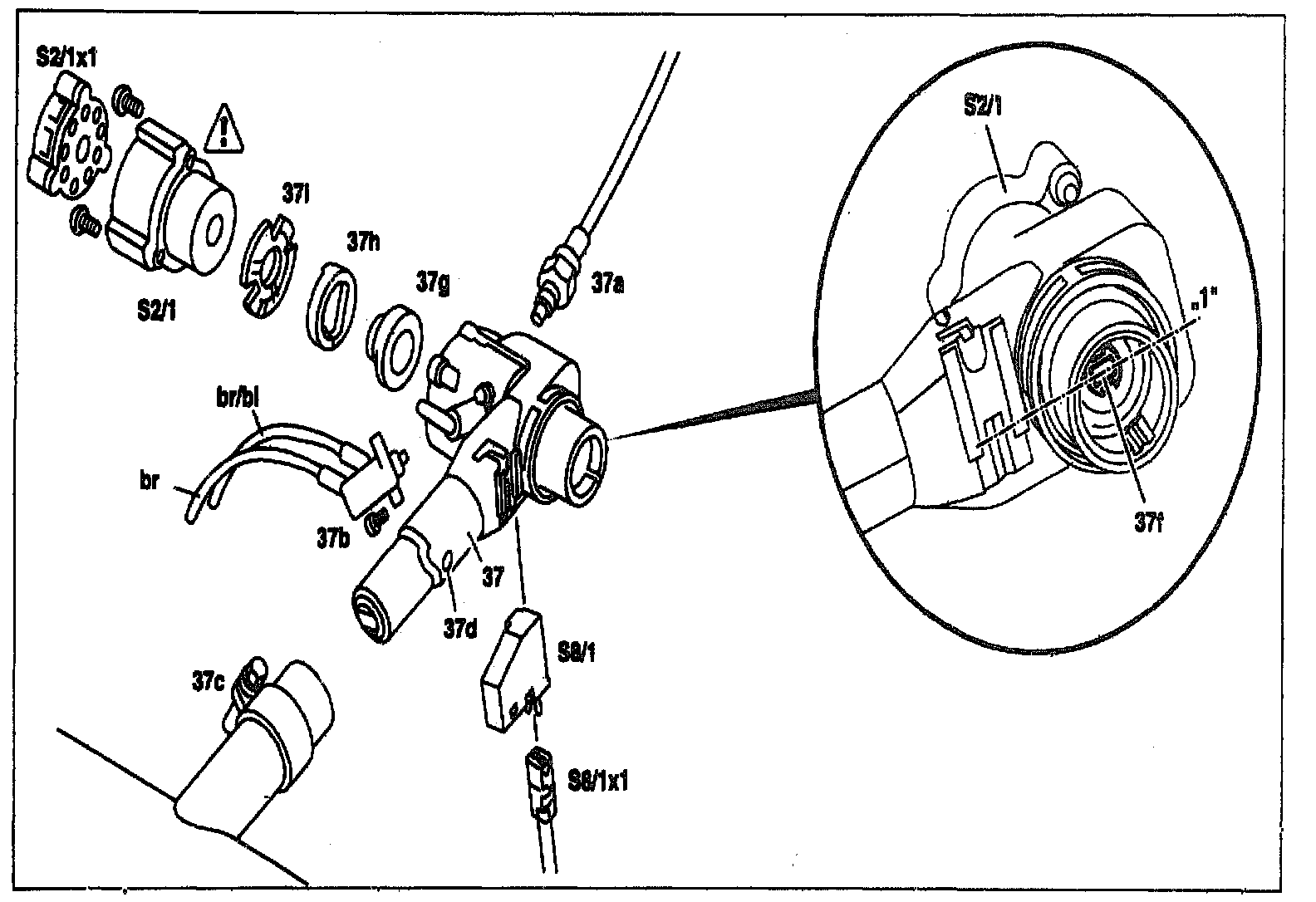

Component Identification:






Removal/Installation, Steps 1 - 8:

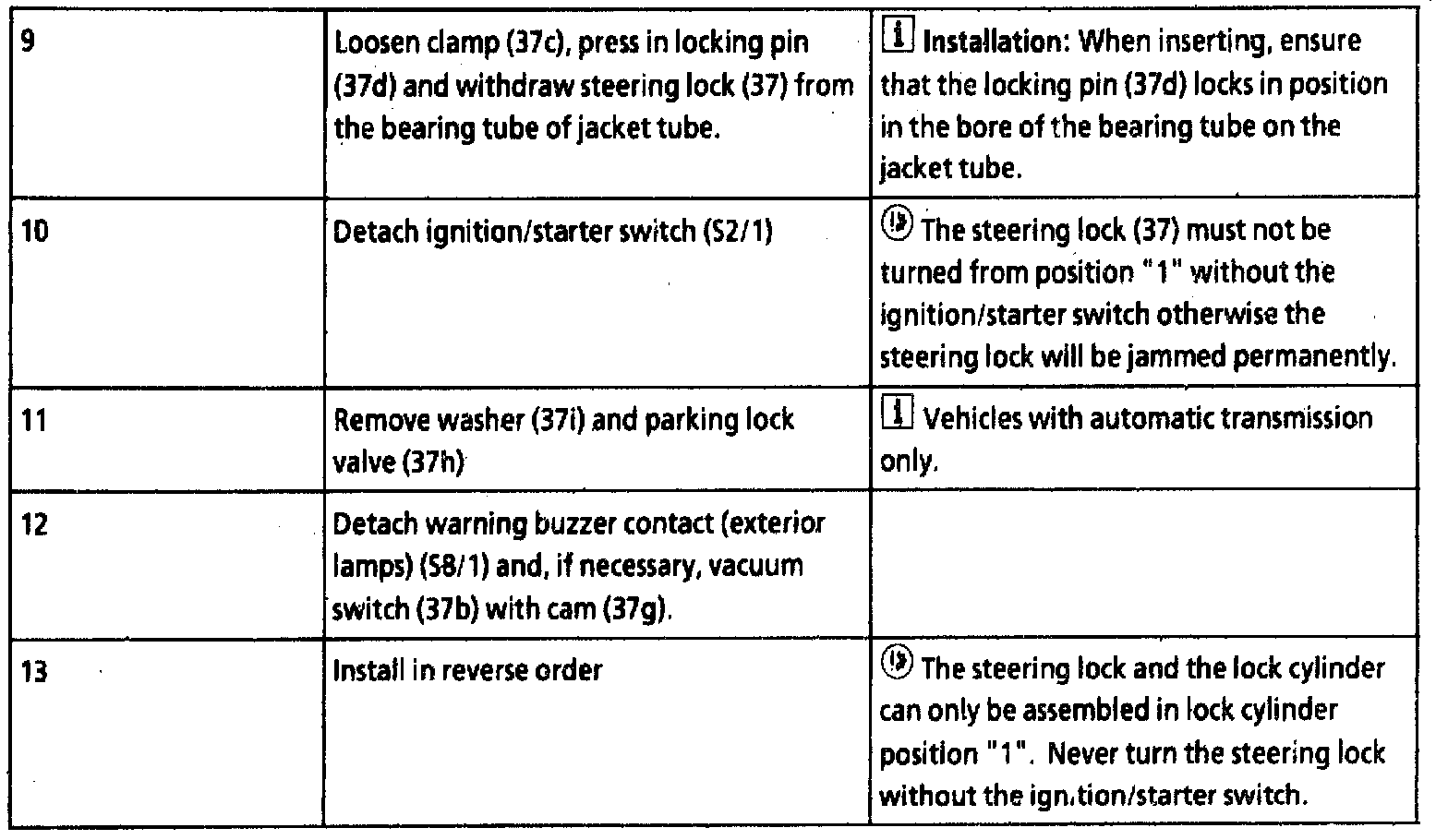

Removal/Installation, Steps 9 - 13:
