Evaporative Shut Valve: Service and Repair

Removing, Installing Shutoff Valve







Removing, installing


DANGER:
- Risk of explosion from ignition. Risk of poisoning from inhaling and swallowing fuel. Risk of injury as a result of fuel coming into contact with skin and eyes.
- No fire, naked flame or smoking.
- Pour fuels only into suitable and into appropriately marked containers.
- Wear protective clothing when handling fuel.

1 Remove wheel housing liner
- Rear left

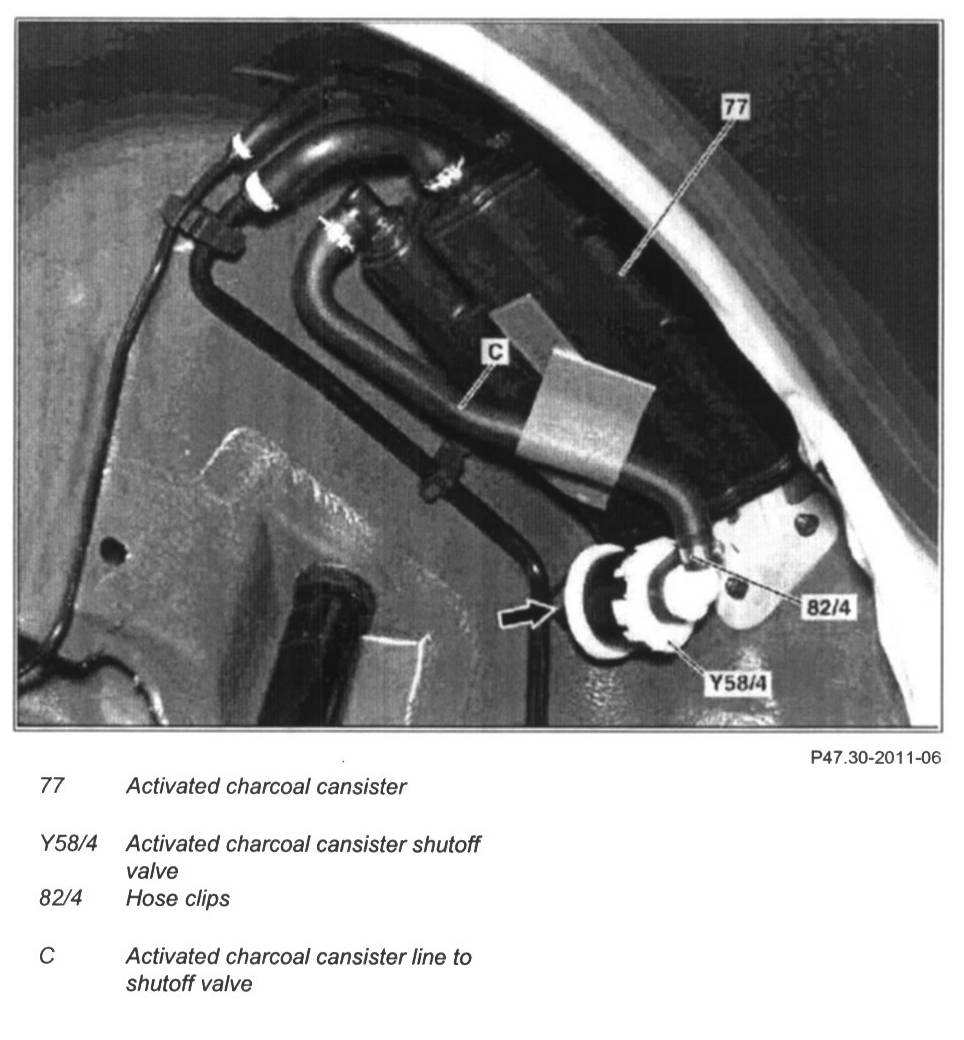

2 Disconnect line (arrow) at shutoff valve (Y58/4)
3 Slacken hose clip (82/4) and disconnect line (C)
4 Unclip shutoff valve (Y58/4) at bracket of activated charcoal canister

NOTE: On-board refuelling vapor recovery ORVR function

5 Install in the reverse order
