Air Diverter Solenoid: Locations
Air Pump Switchover Valve Arrangement

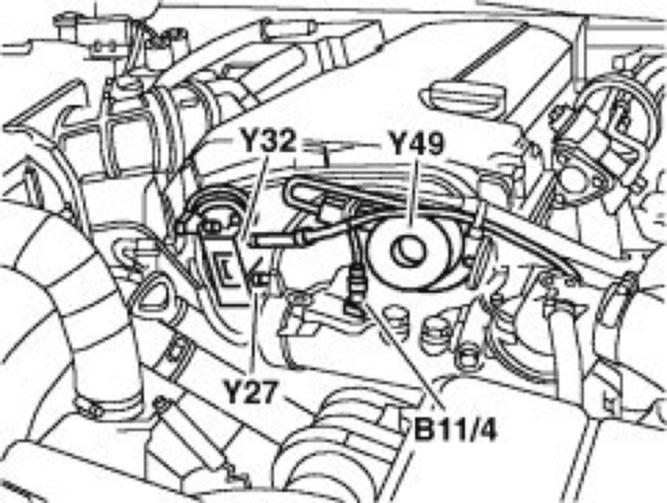

Position on engine 111 without EURO3
Y32 Air pump switchover valve

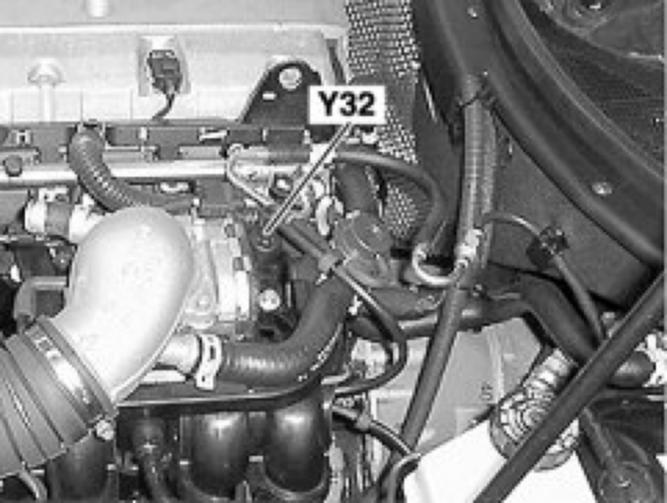

Position on engine 111 with EURO#
Y32 Air pump switchover valve
Air Pump Switchover Valve Arrangement
Position on engine 111 without EURO3
Y32 Air pump switchover valve
Position on engine 111 with EURO#
Y32 Air pump switchover valve
