Home
>>
Mercedes Benz
>>
2000
>>
C 230K (202.024) L4-2.3L SC (111.975)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Component Tests
>>
ETP - Electrical Test Program
>>
Component Locations - Section 21
>>

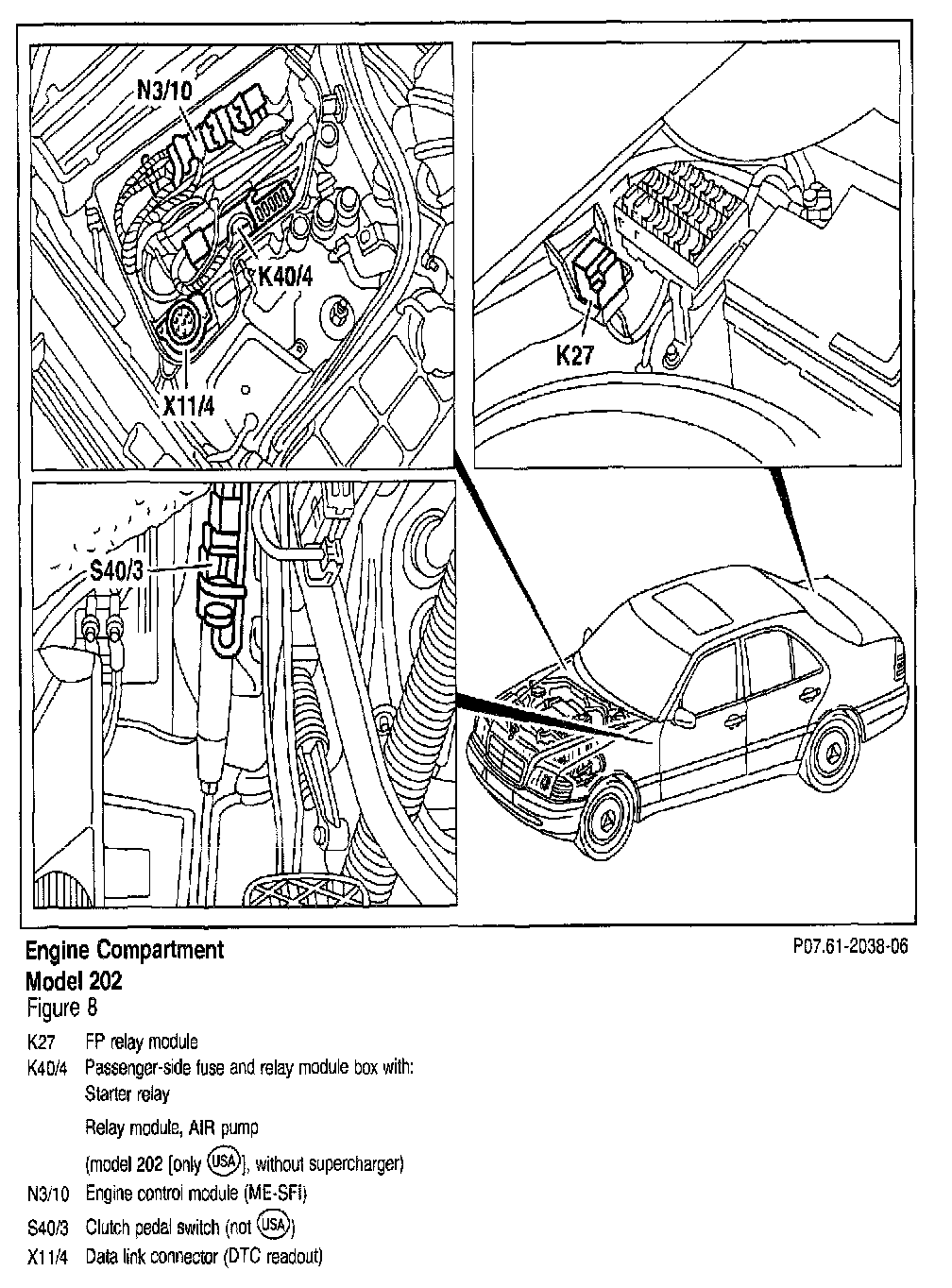

Figure 8 - Engine Compartment
Figure 8 - Engine Compartment
