B1.4 Interior Compartment (Left)

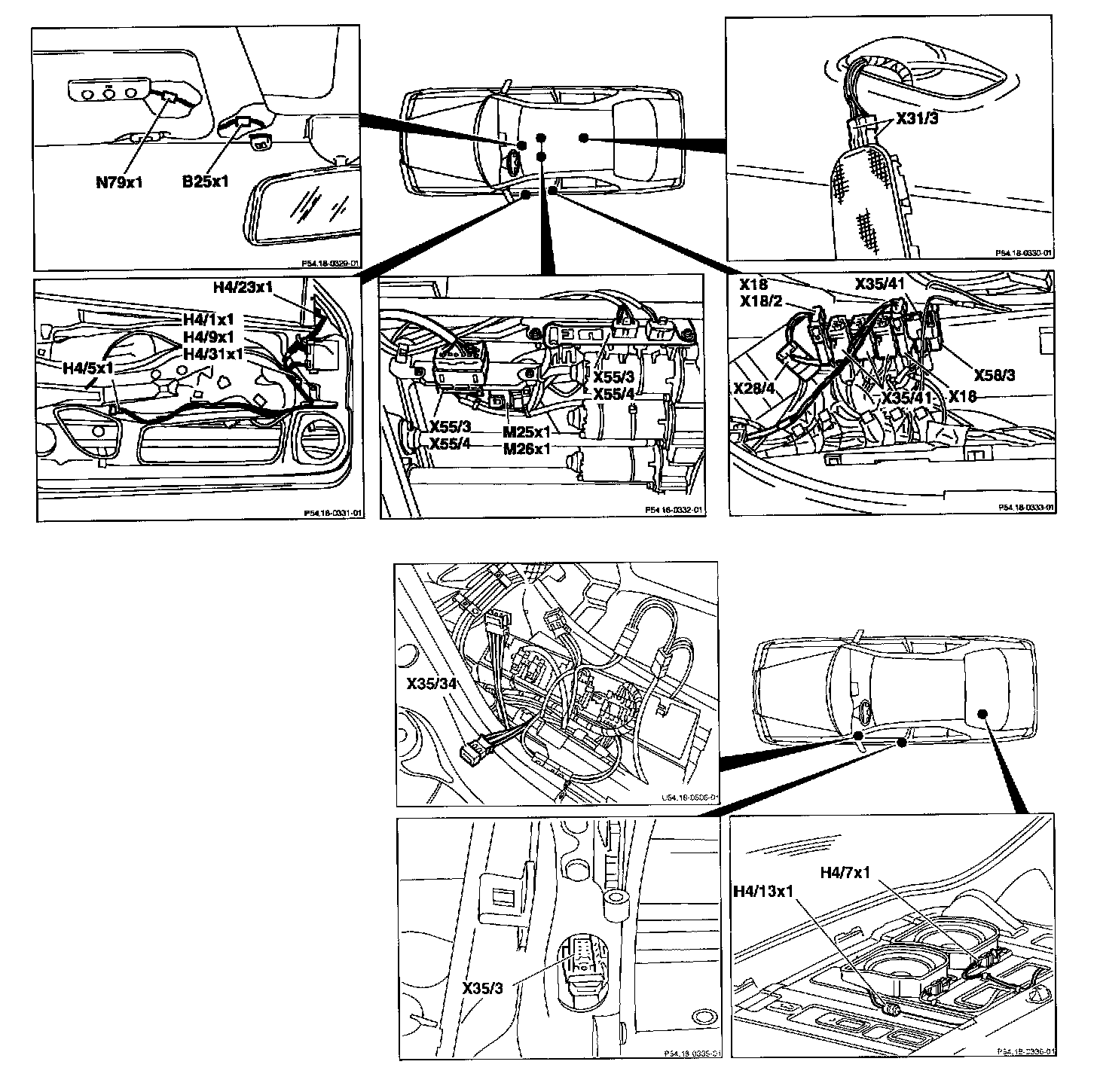

Arrangement and assignment of the wiring and plug connectors, interior compartment (left)

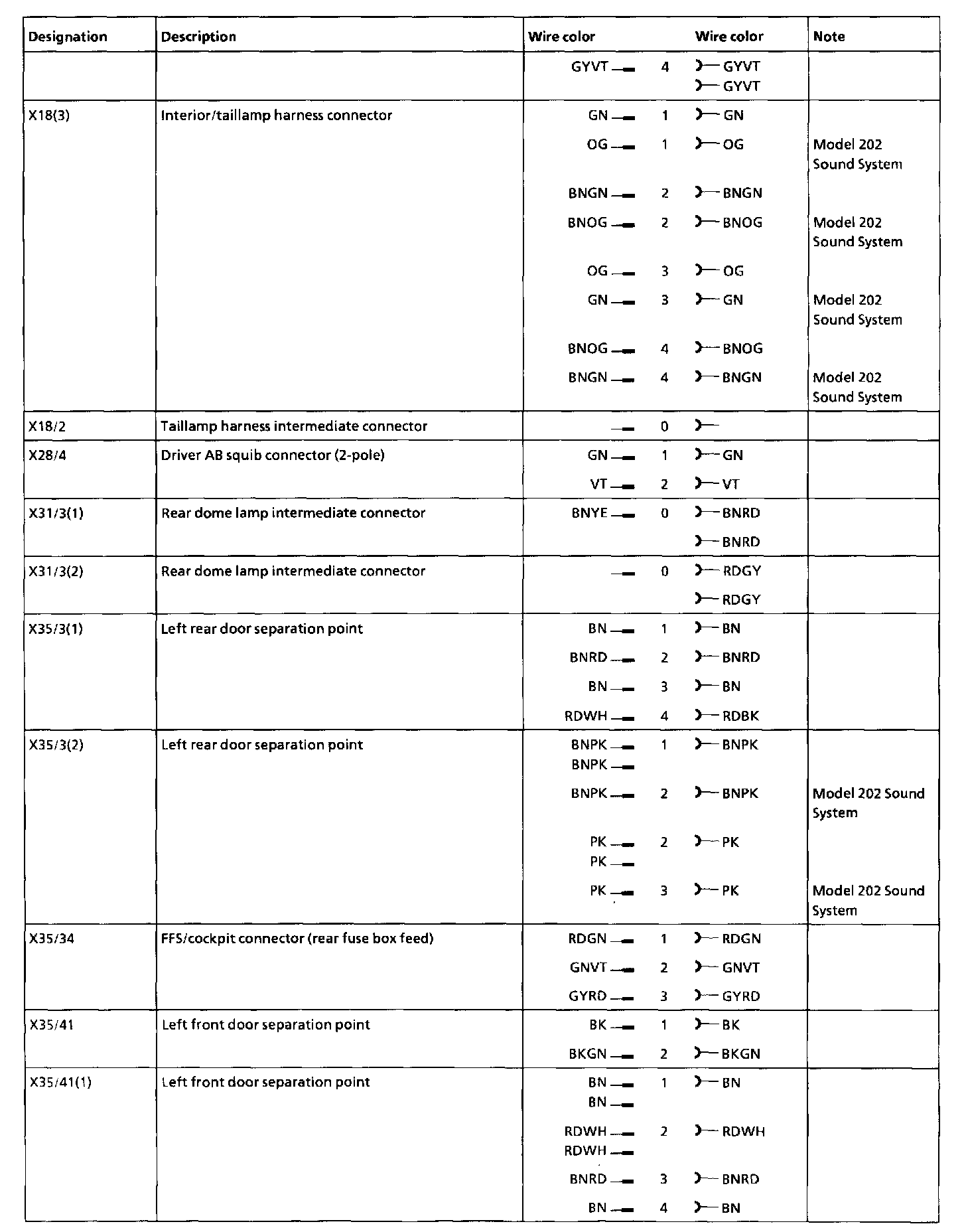

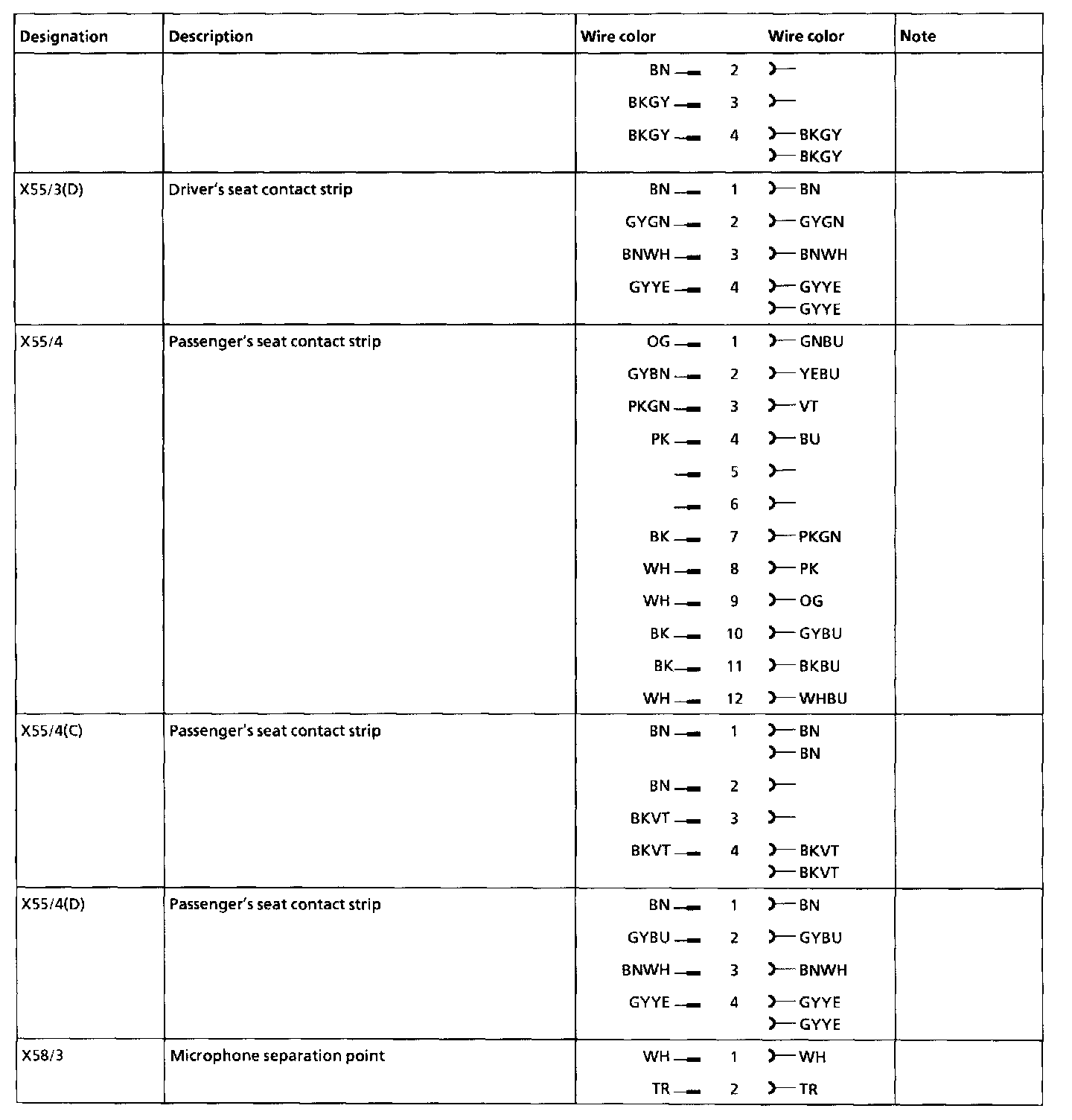

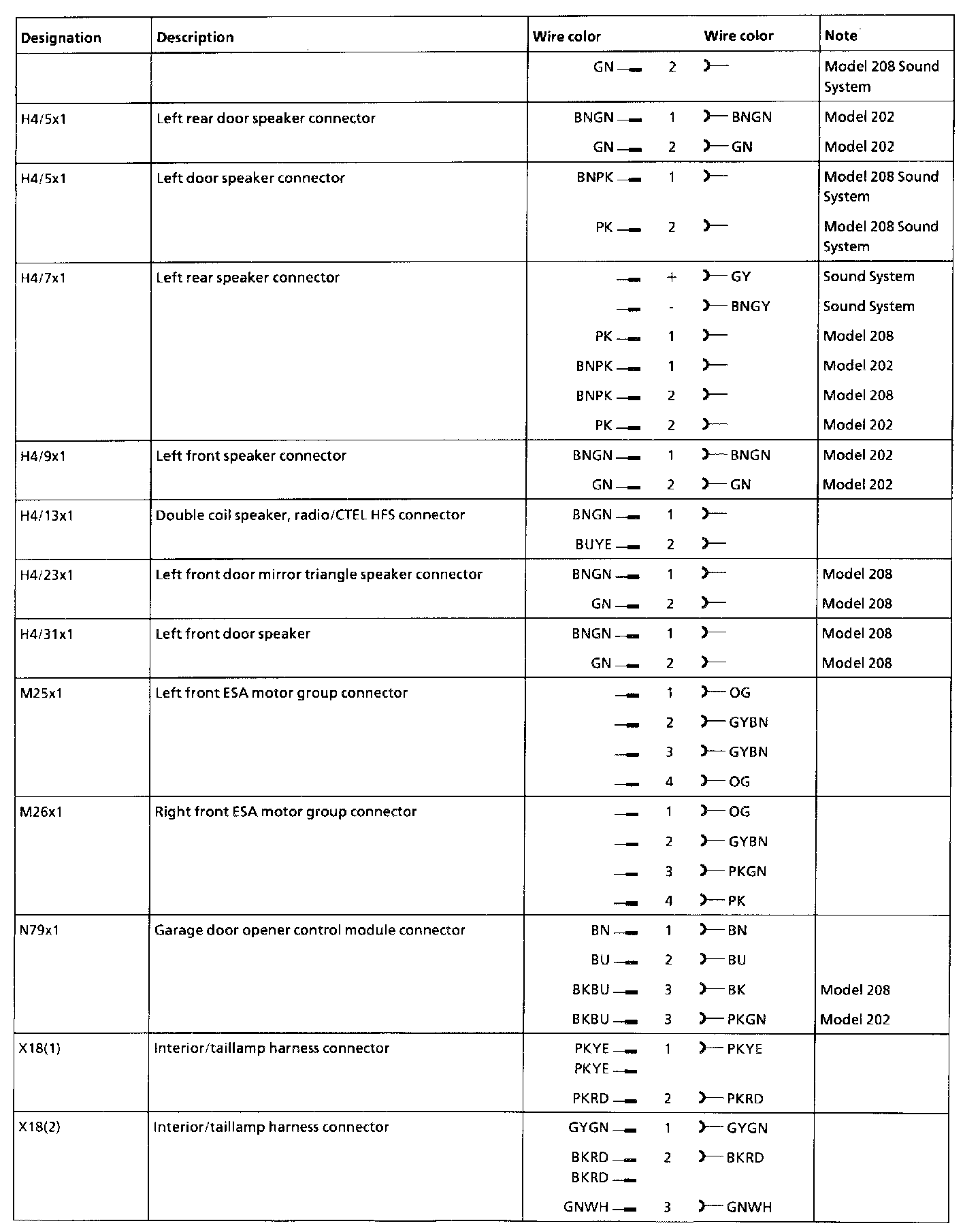

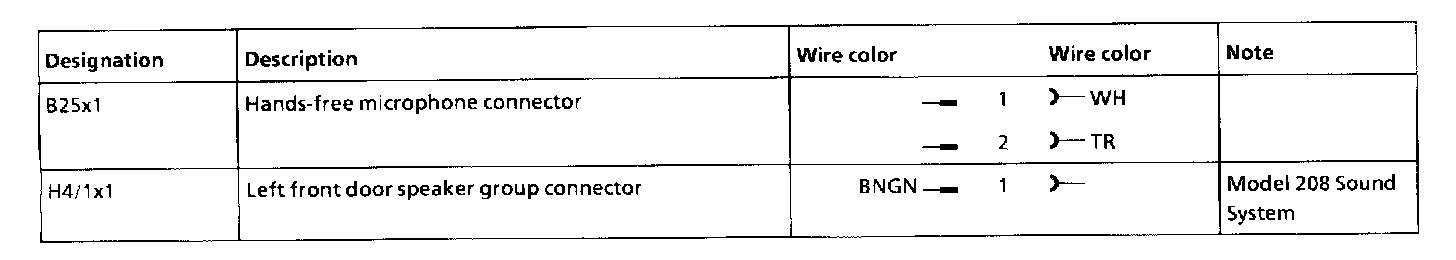

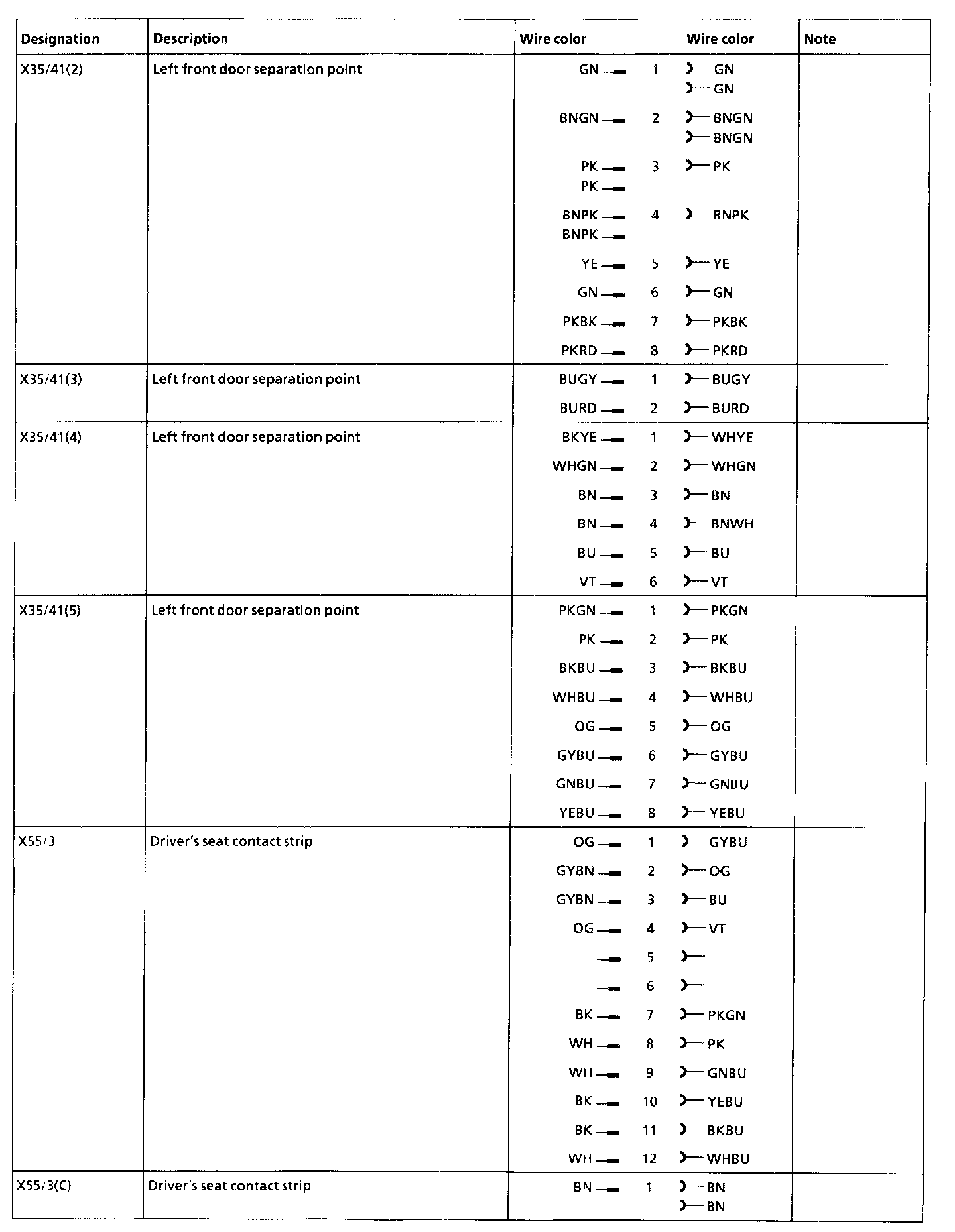

Connector Locations:






Connector ID

B25/1 - H4/1x1:





H4/4x1 - X18(2):





X18(3) - X35/41(1):





X35/41(2) - X55/3(C):





X55/3(C) - X58/3:
