AR68.10-P-1150E Remove/Install Center Air Nozzle
AR68.10-P-1150E Remove/Install Center Air Nozzle
AR68.10-P-1150E Removing And Installing Center Air
Nozzle

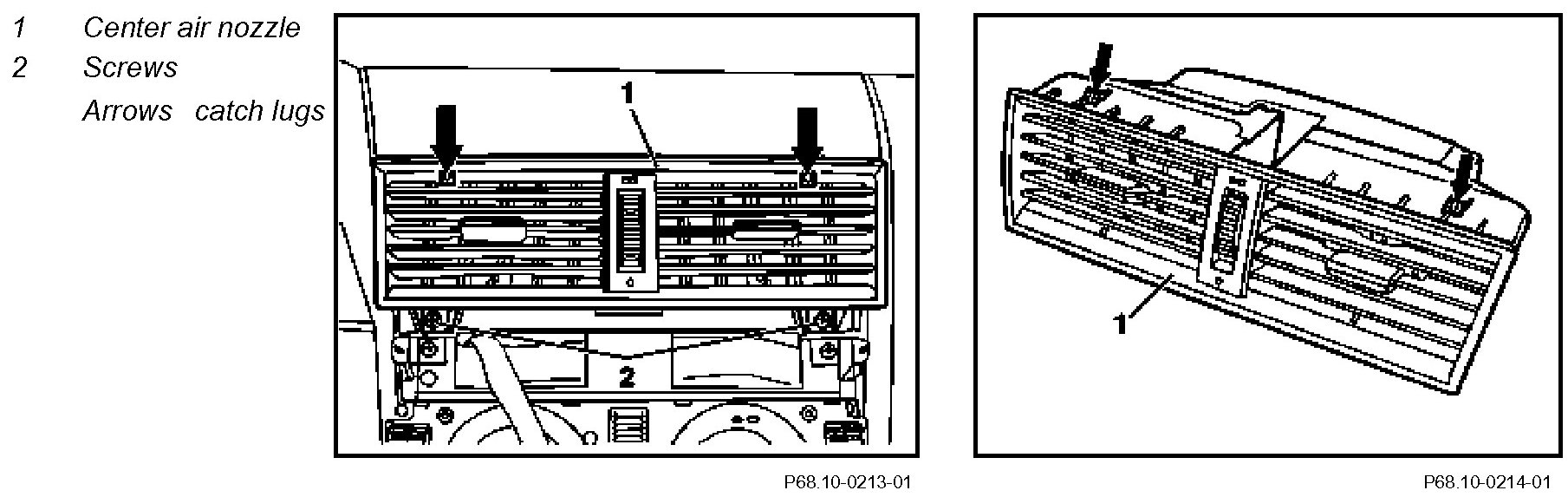

Component Identification:

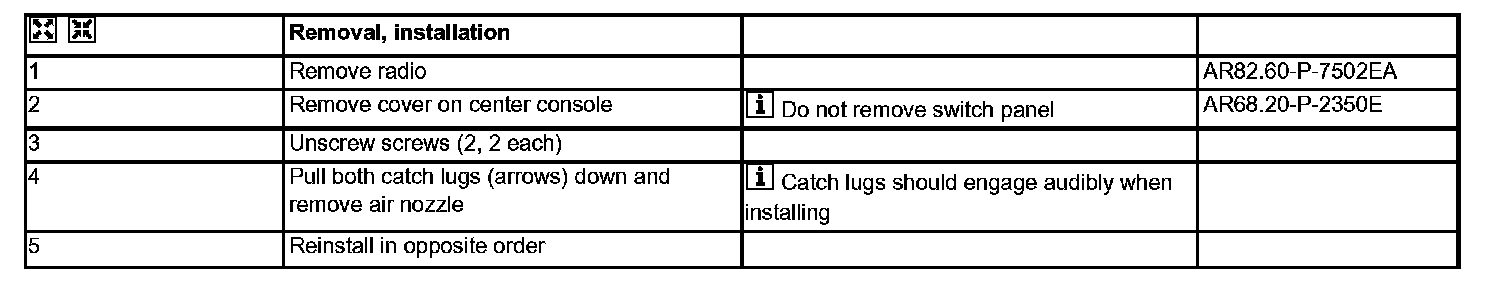

Steps 1 - 5:
