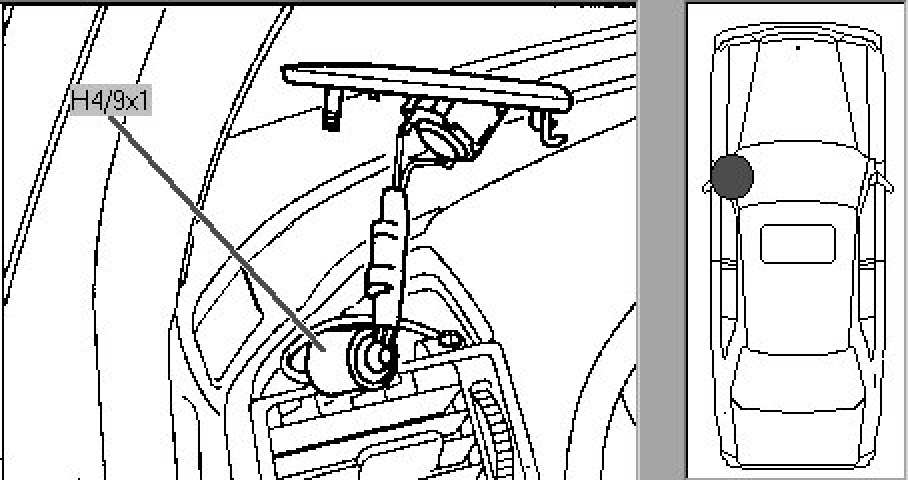

H4/9x1 - LF Speaker Connection
H4/9x1 - LF Speaker Connection
Left side of dashboard, above left A/C outlet, beneath plastic grill
