AR62.30-P-1600E Replace Front Spring Support



AR62.30-P-1600E Replace Front Spring Support
- After accident

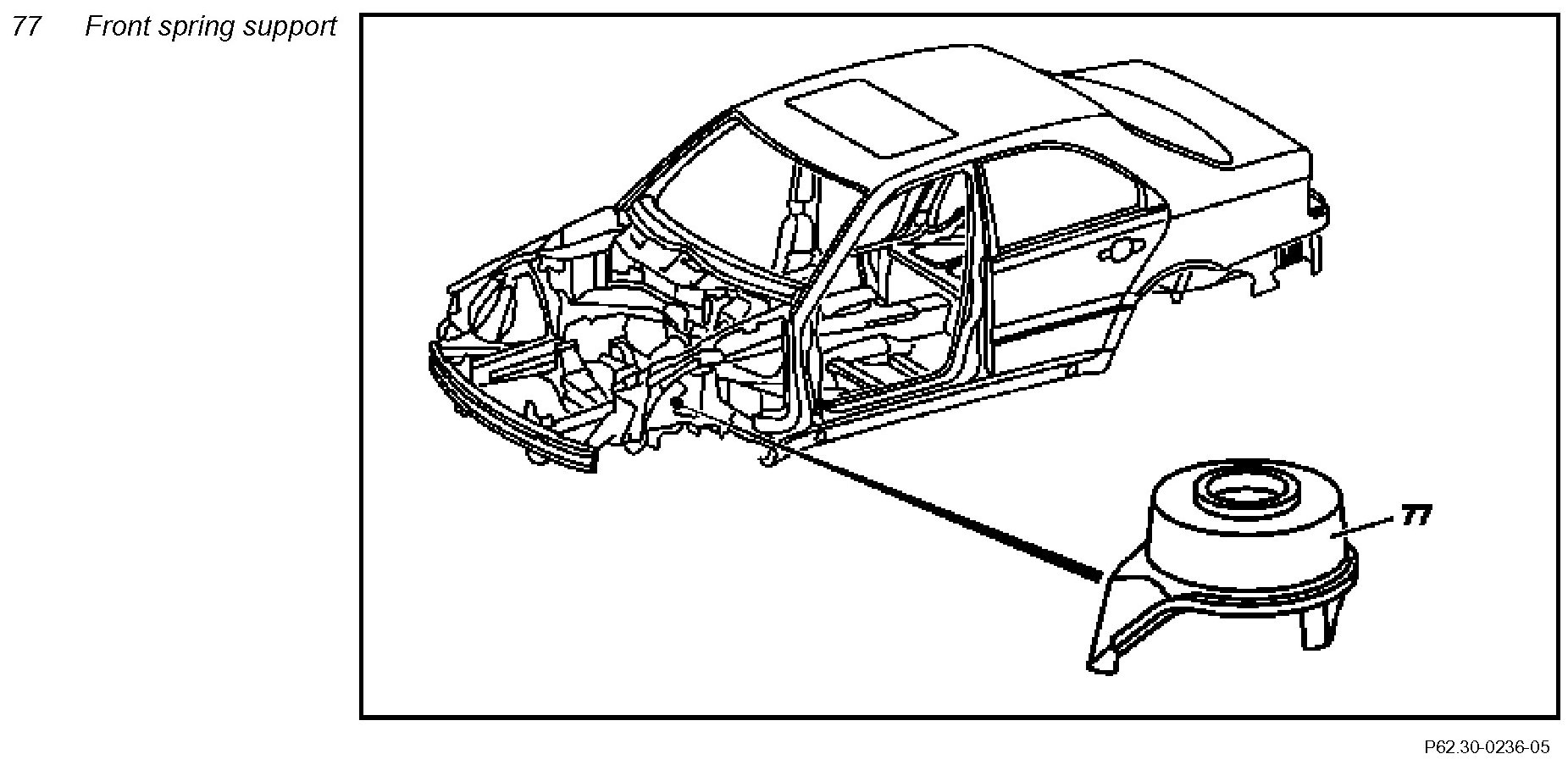

Component Identification:

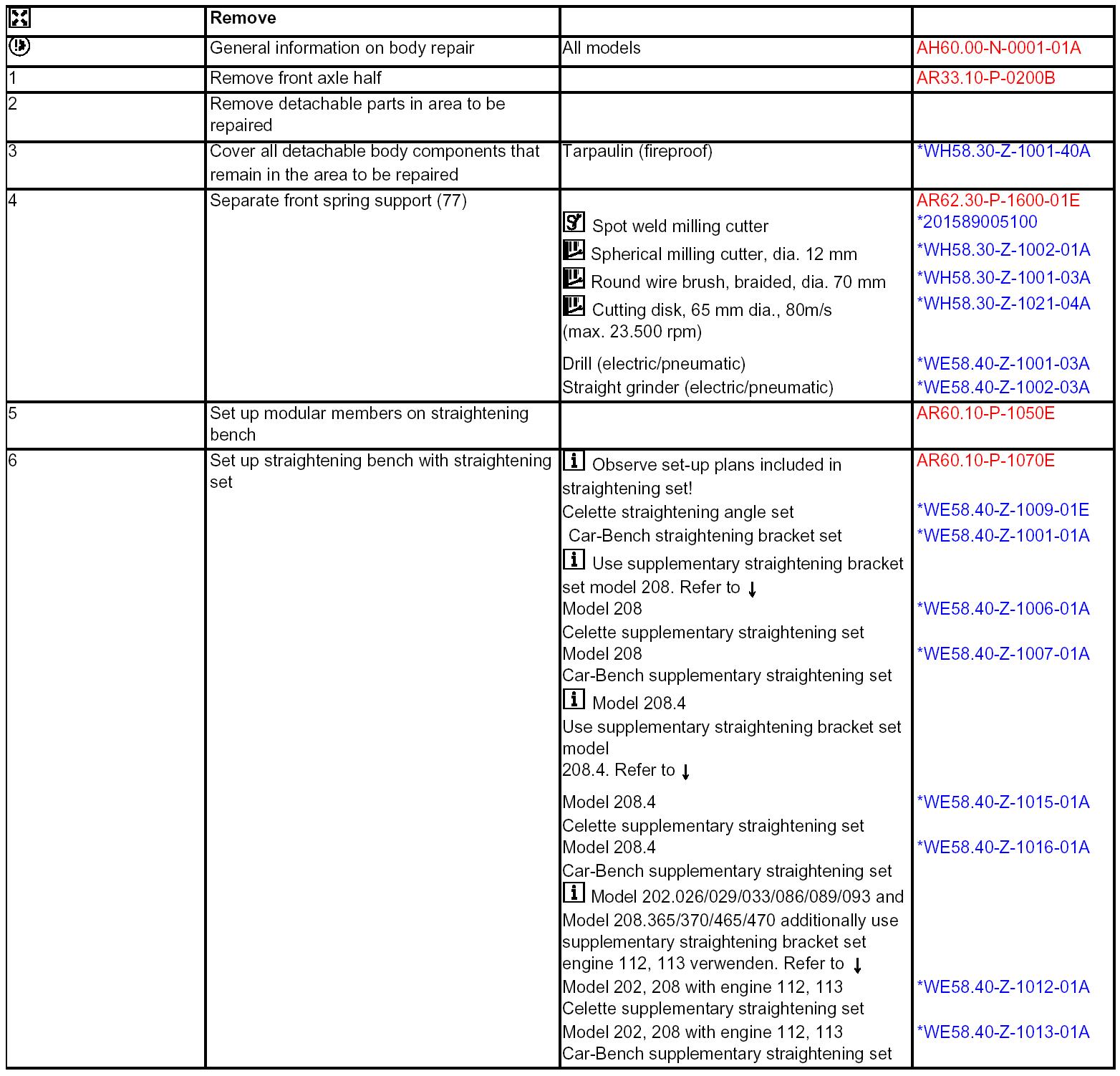

Steps 1 - 6:

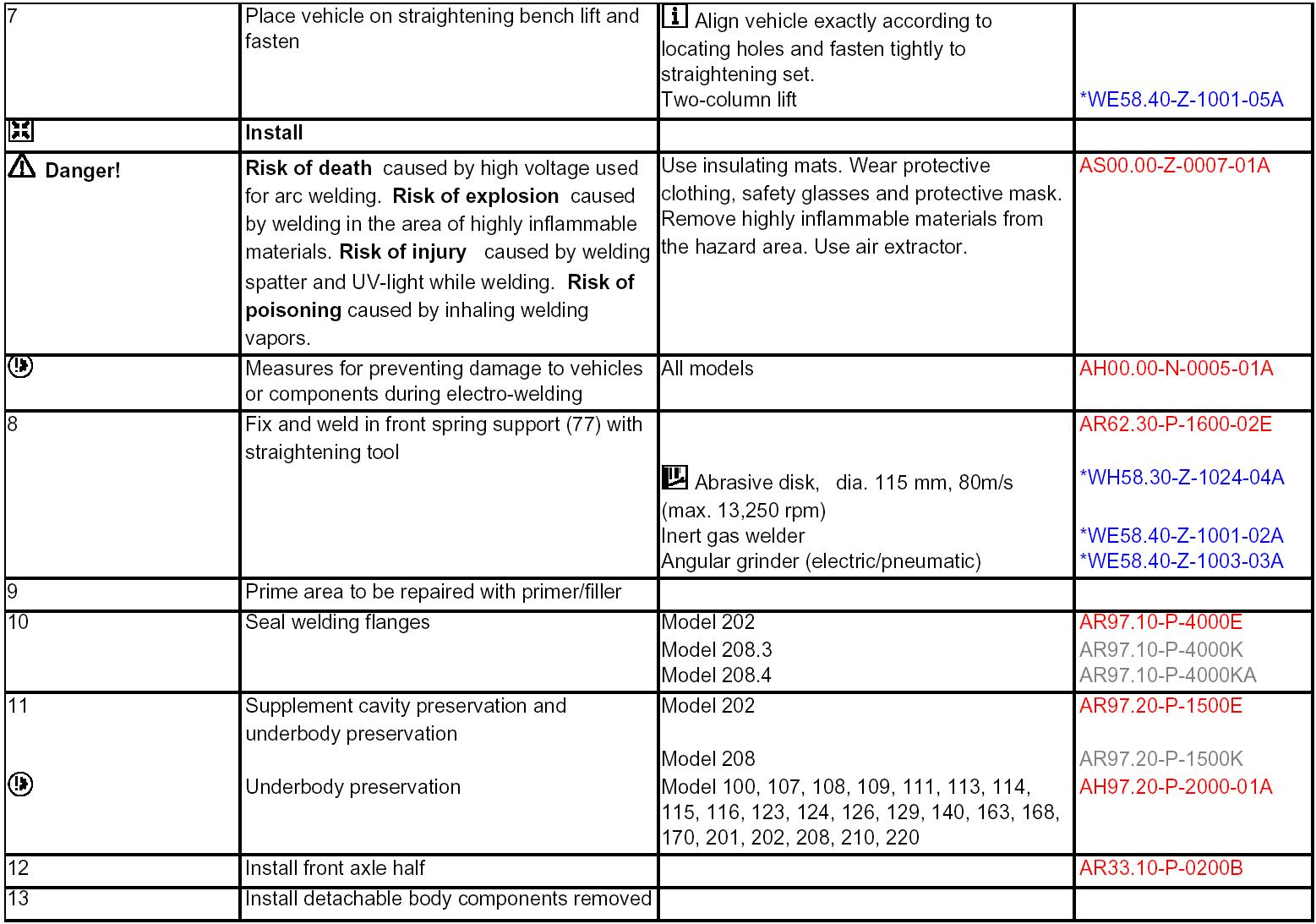

Steps 7 - 13:




Special Tools:

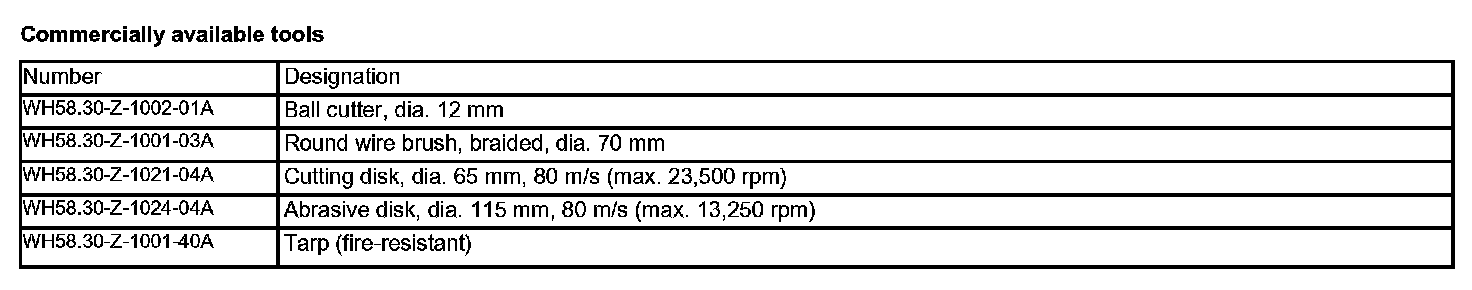

Commercially Available Tools:

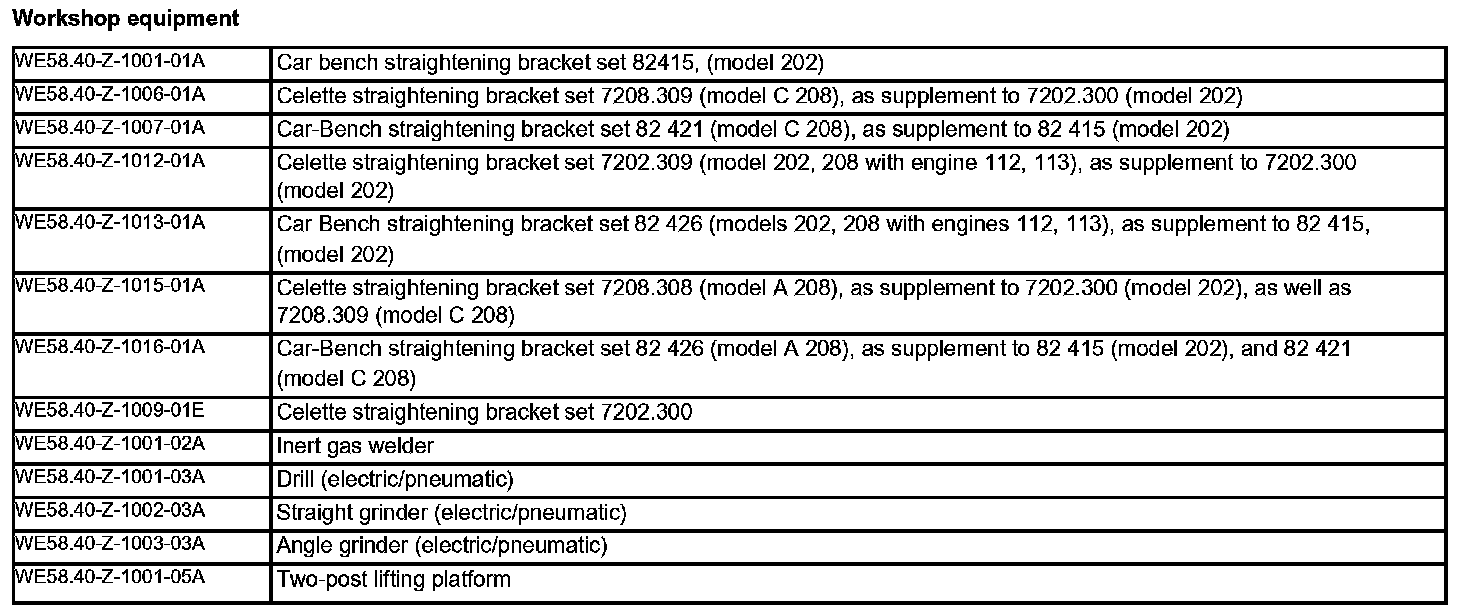

Workshop Equipment:
