AR91.10-P-1050E Repairing Thread For Seat Mount
AR91.10-P-1050E Repairing Thread For Seat Mount
AR91.10-P-1050E Repairing Thread For Seat Mount

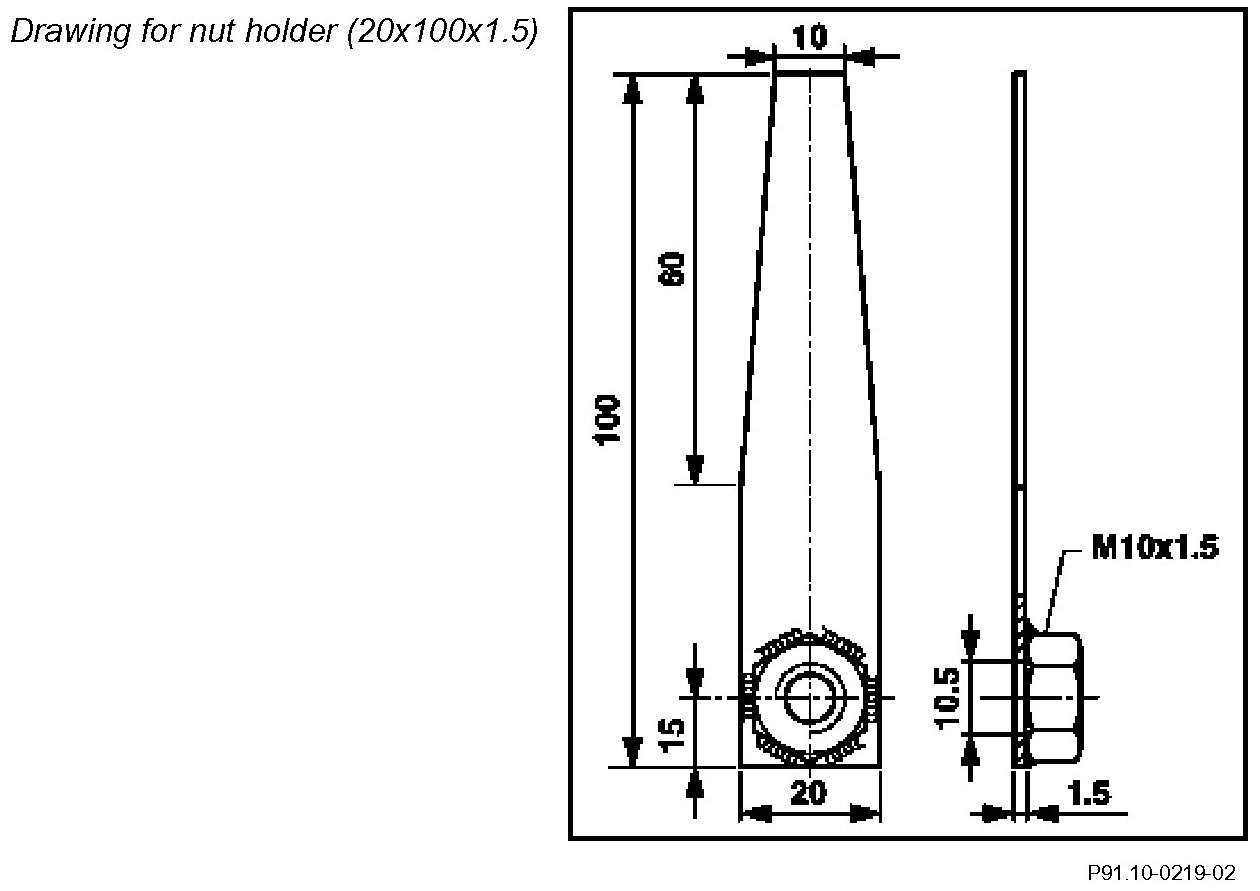

Component Identification:

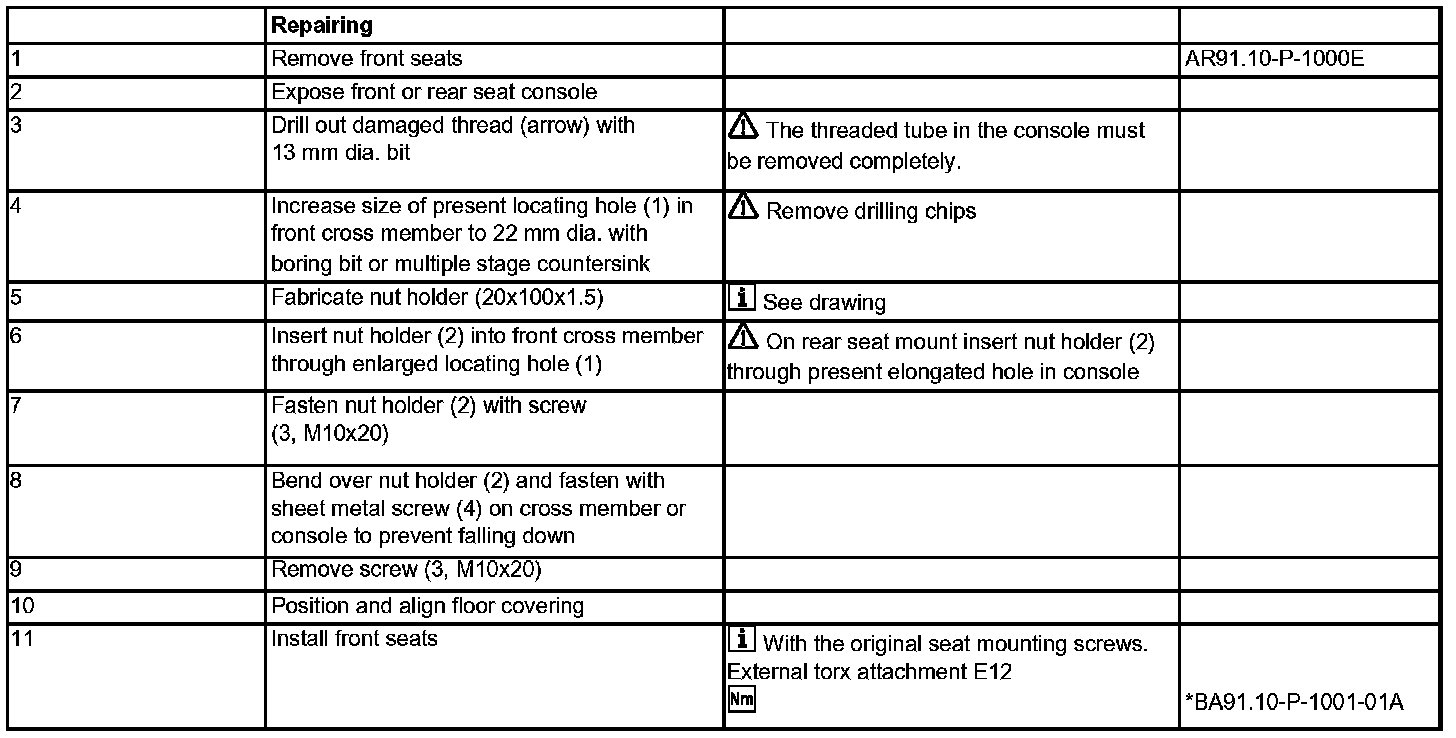

Steps 1 - 11:

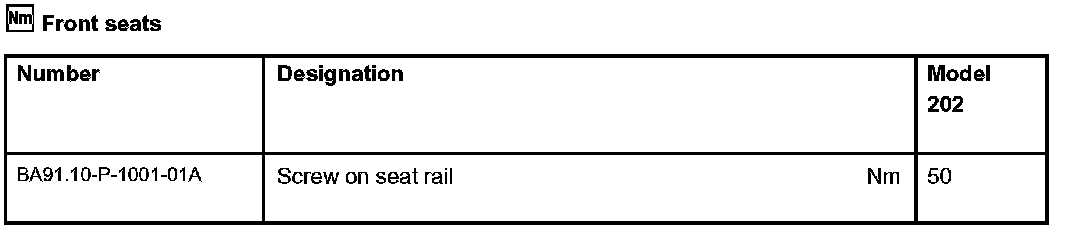

Front Seats:
