Seat Bladder Reservoir: Service and Repair



AR91.25-P-1650E Removing And Installing Pressure Supply Reservoir For Multi-contour Backrest
- with CODE (404) orthopaedic front seat backrest, left
- with CODE (405) orthopaedic front seat backrest, right

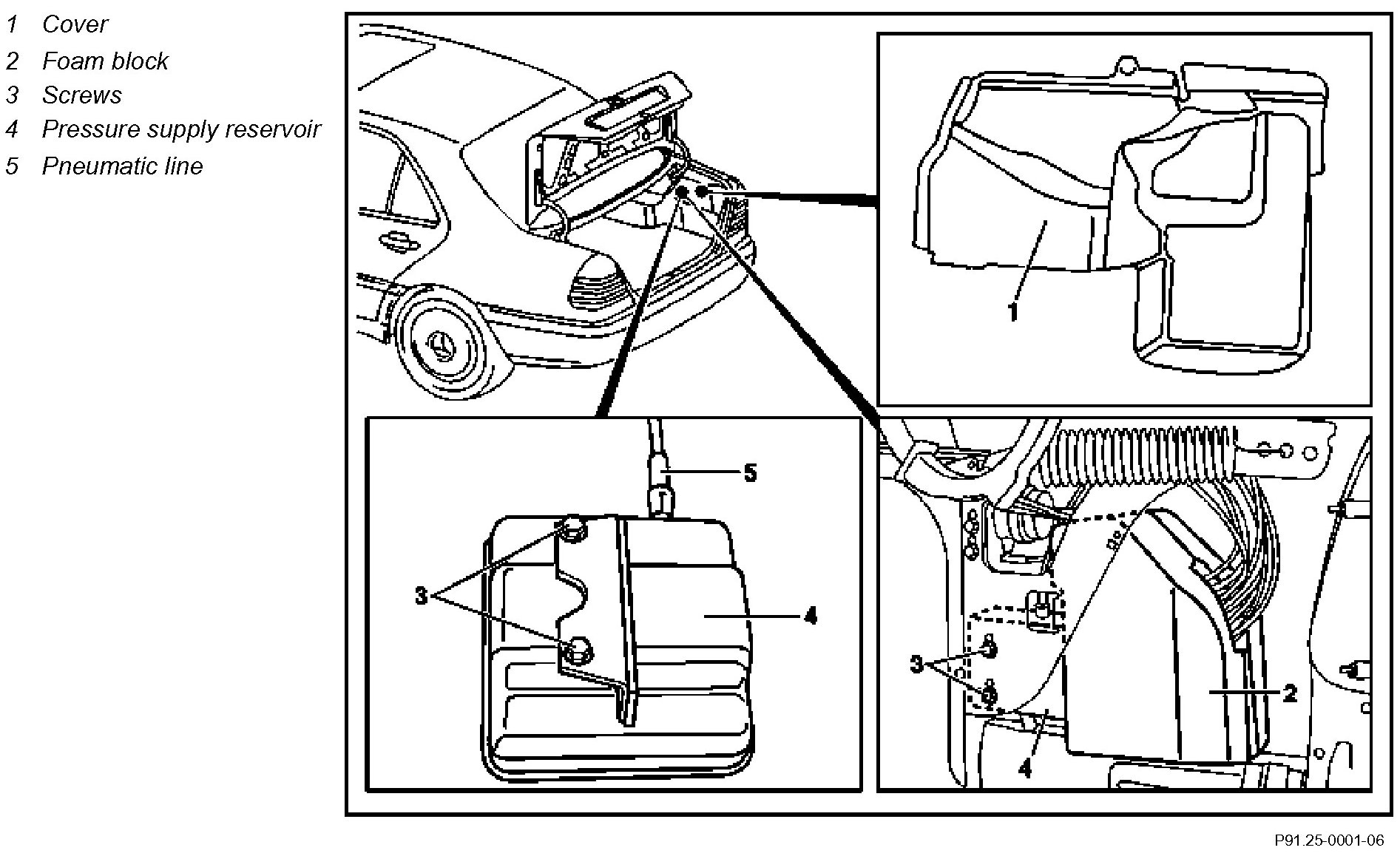

Component Identification:

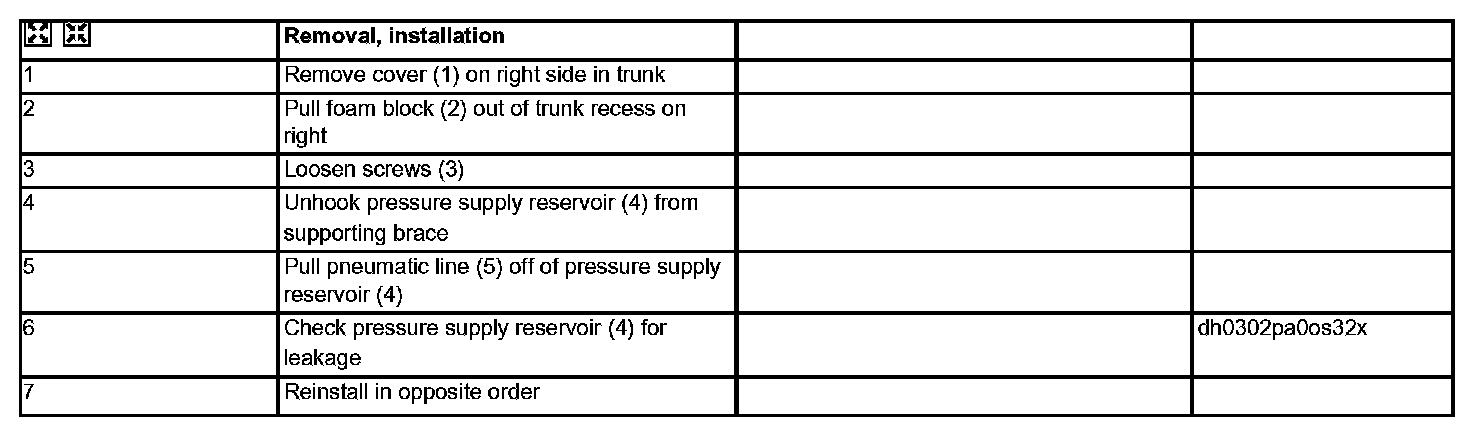

Steps 1 - 7:
