Ash Tray: Service and Repair
AR68.20-P-2400E Removing And Installing Ashtray Housing At Front Of Center Console

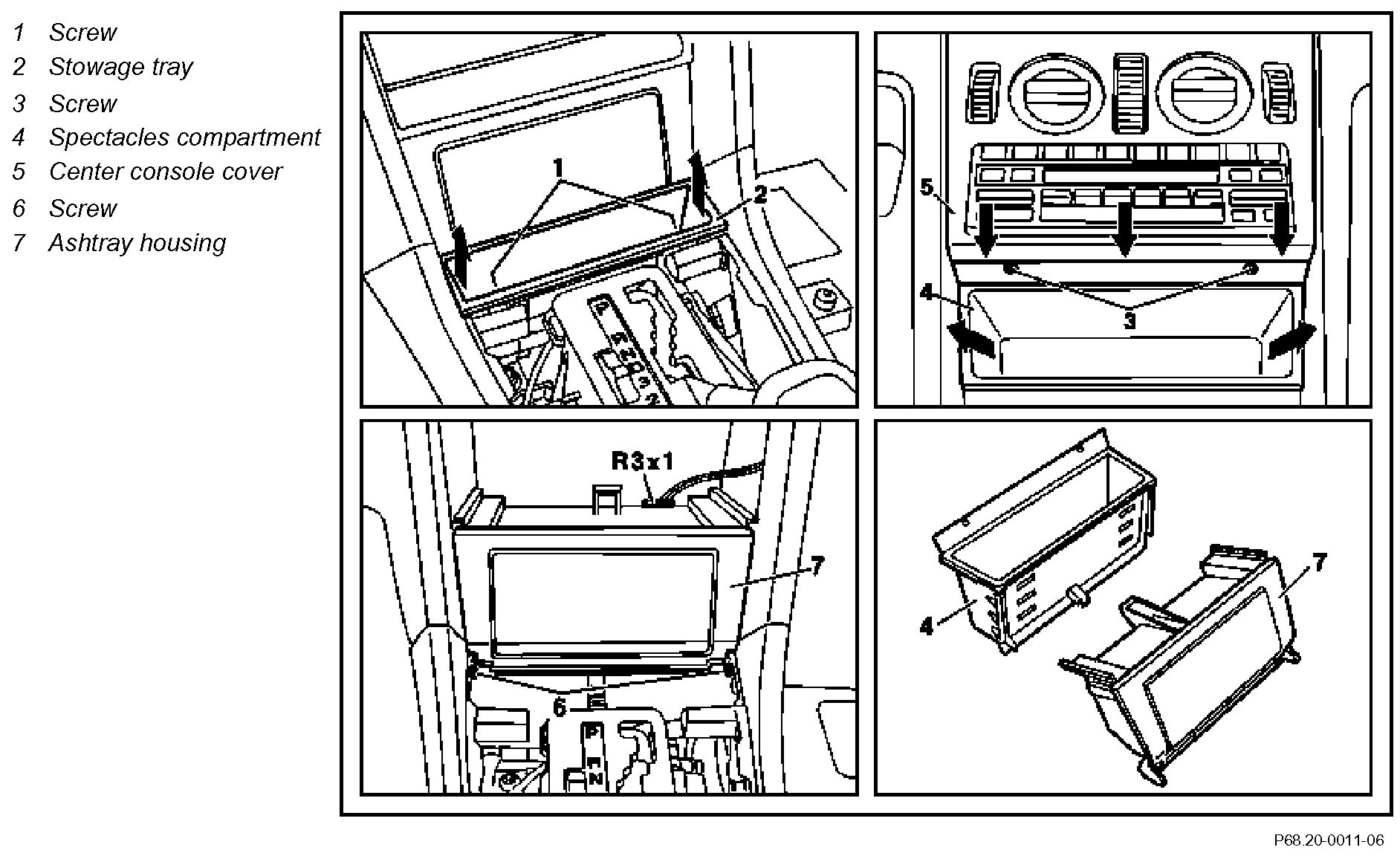

Component Identification:

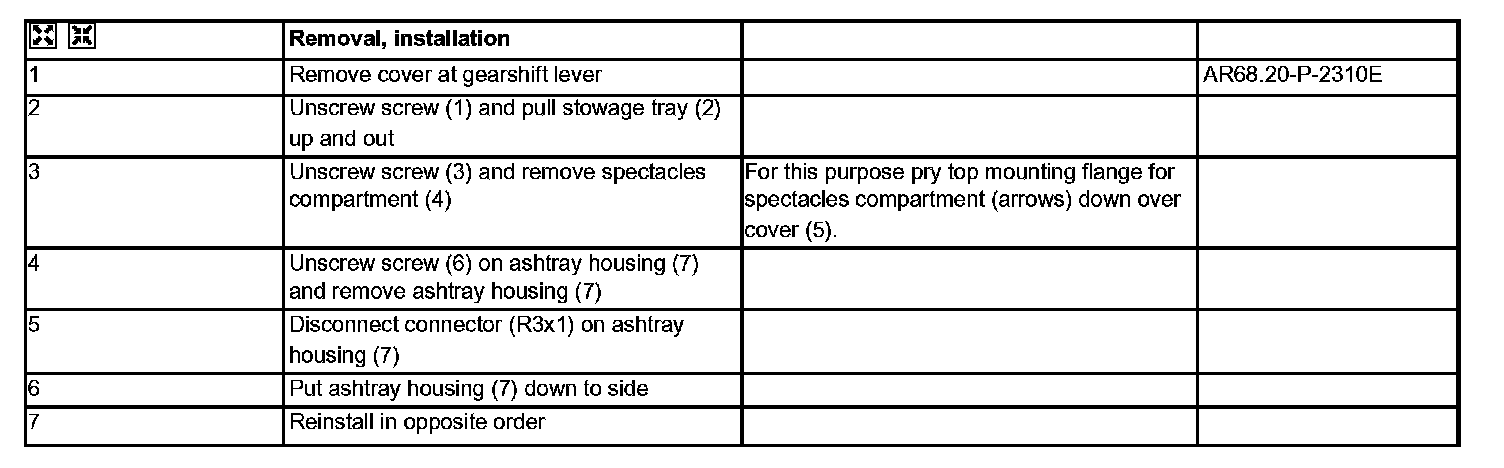

Steps 1 - 7:
