AR88.20-P-2200E Removing And Installing Rear
Bumper

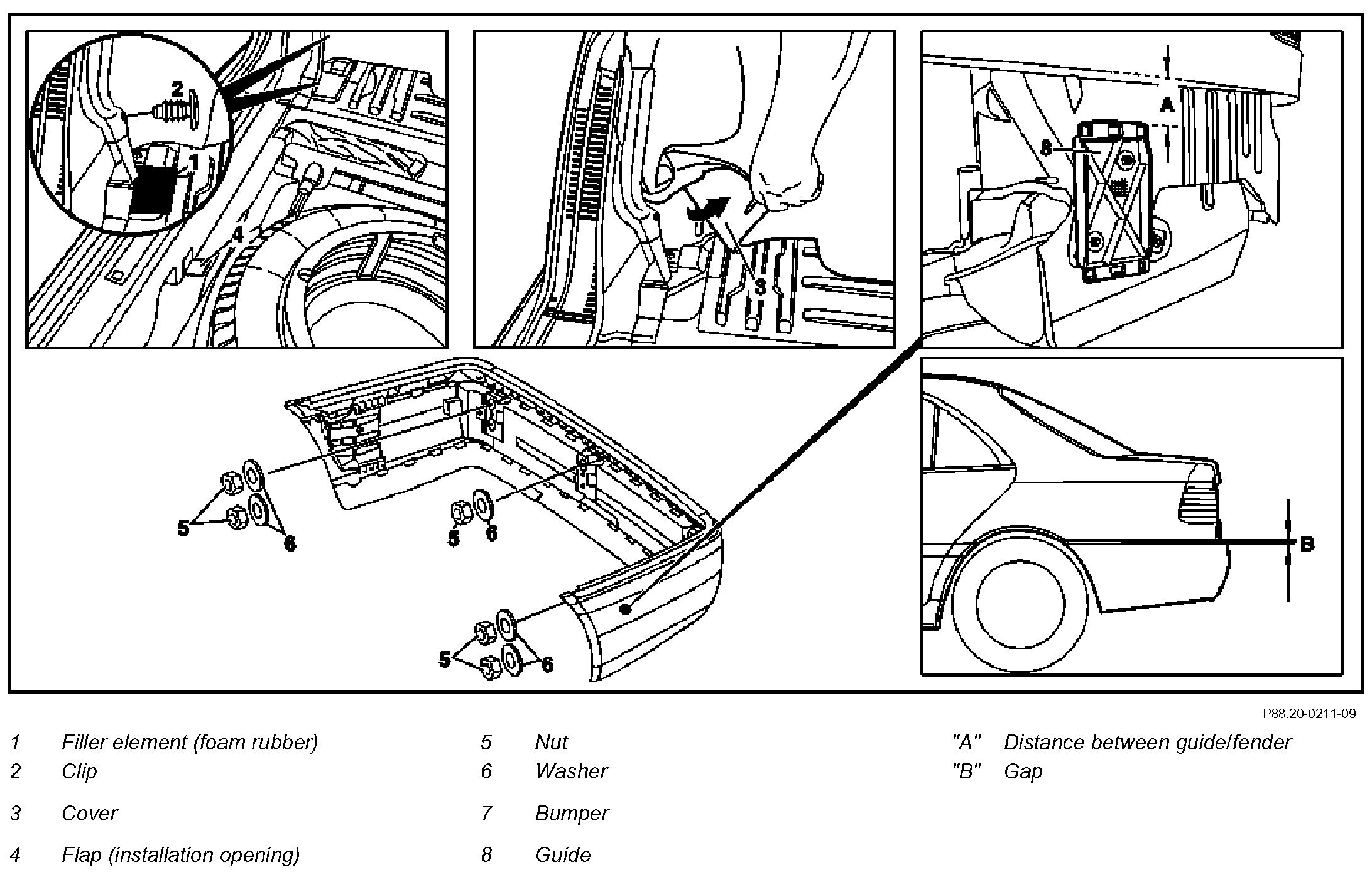

Component Identification:

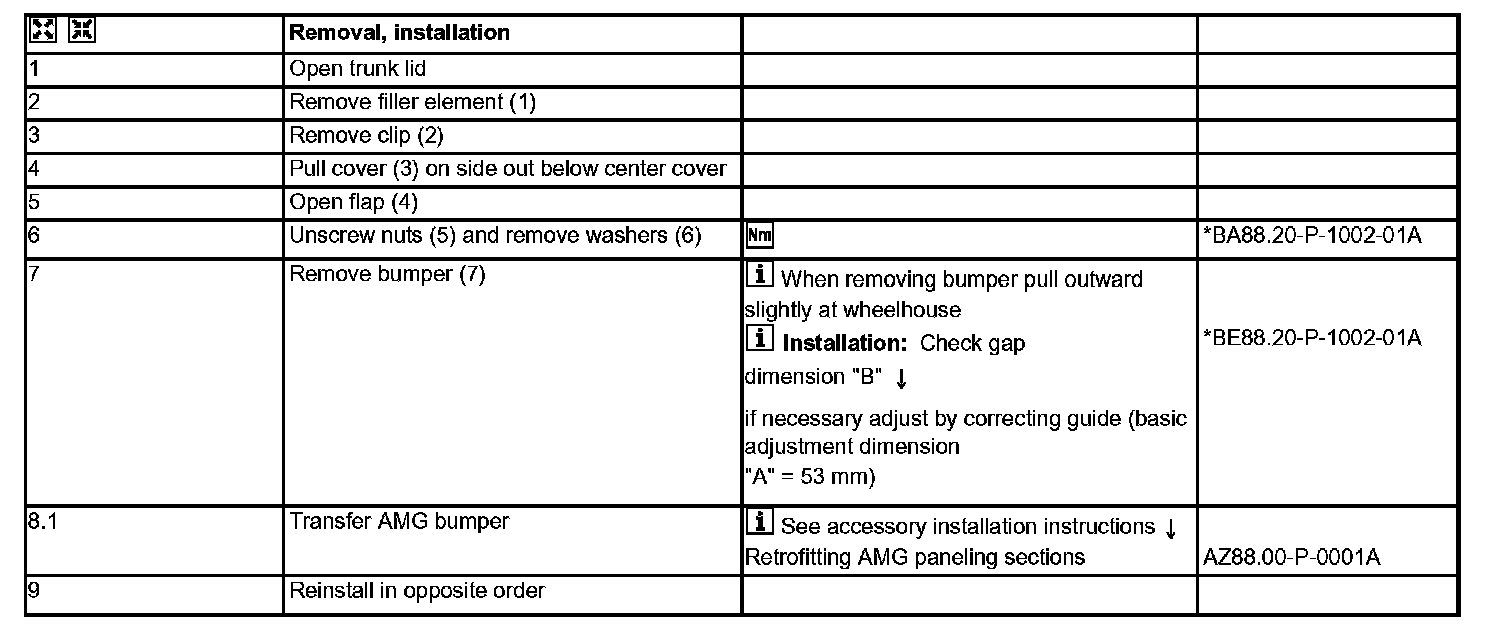

Steps 1 - 9:

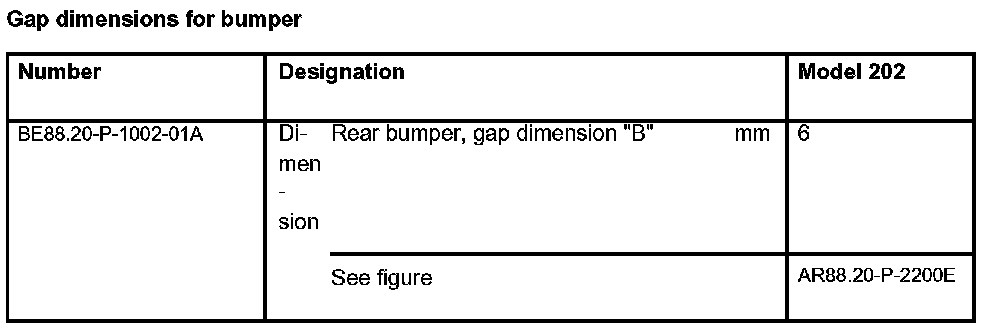

Gap Dimensions For Bumper:

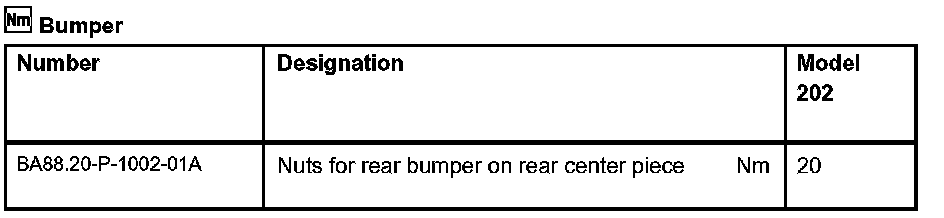

Bumper:
