AR88.20-P-2000E Removing And Installing Front
Bumper

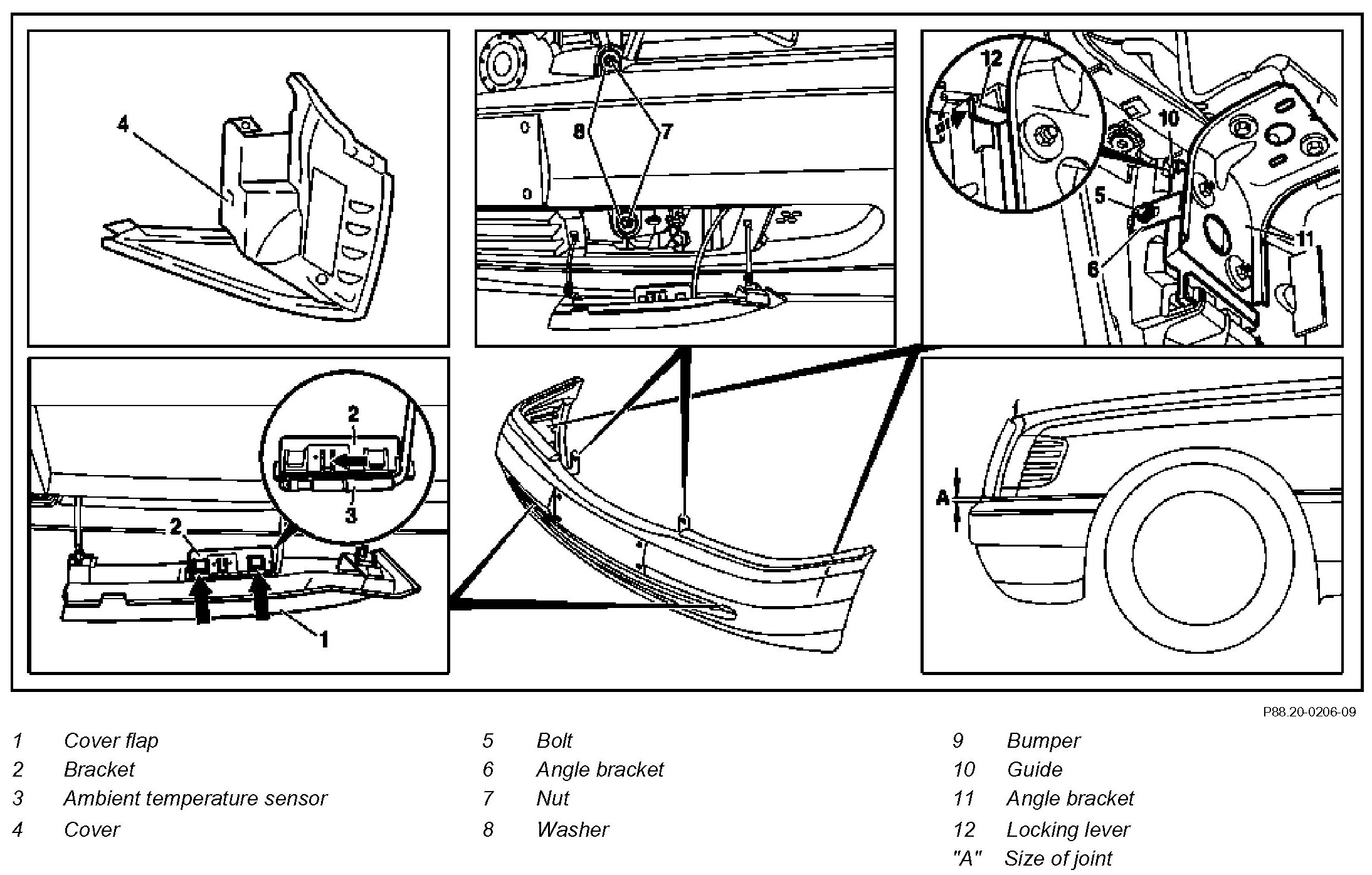

Component Identification:

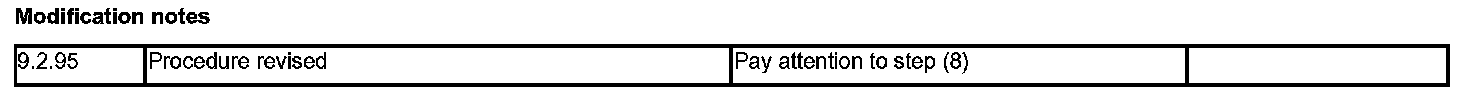

Modification Notes:

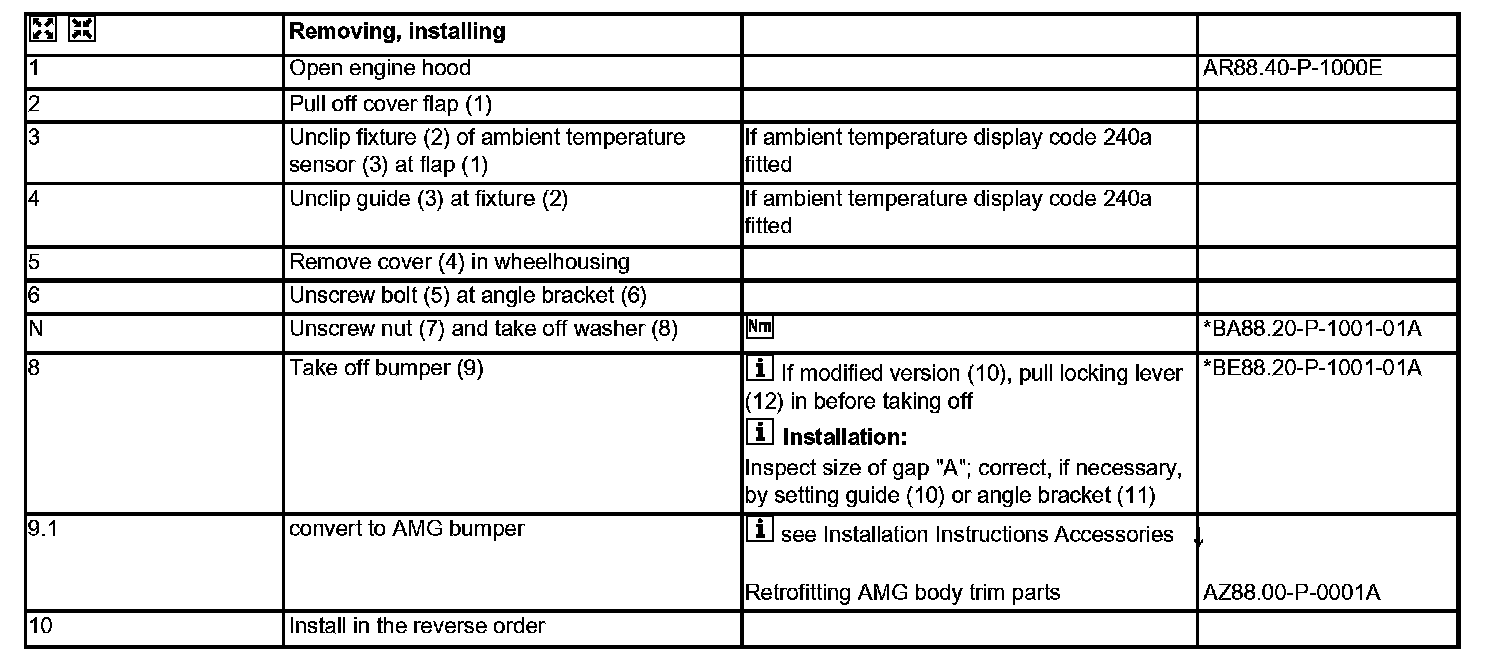

Steps 1 - 10:

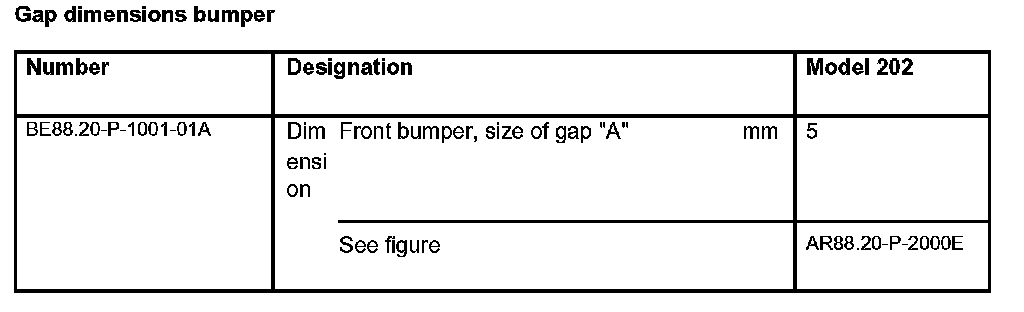

Gap Dimensions Bumper:

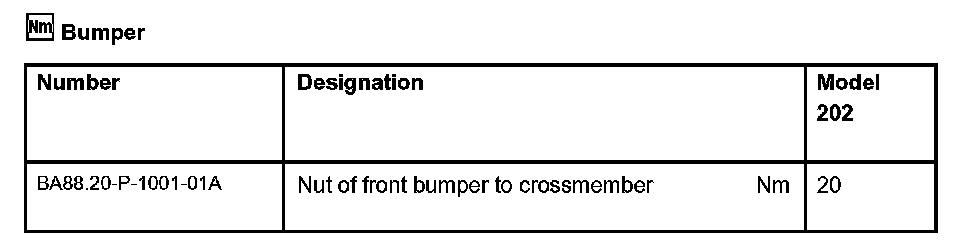

Bumper:
