Amplifier: Service and Repair

Removing And Installing Control Module Of Speaker Amplifier

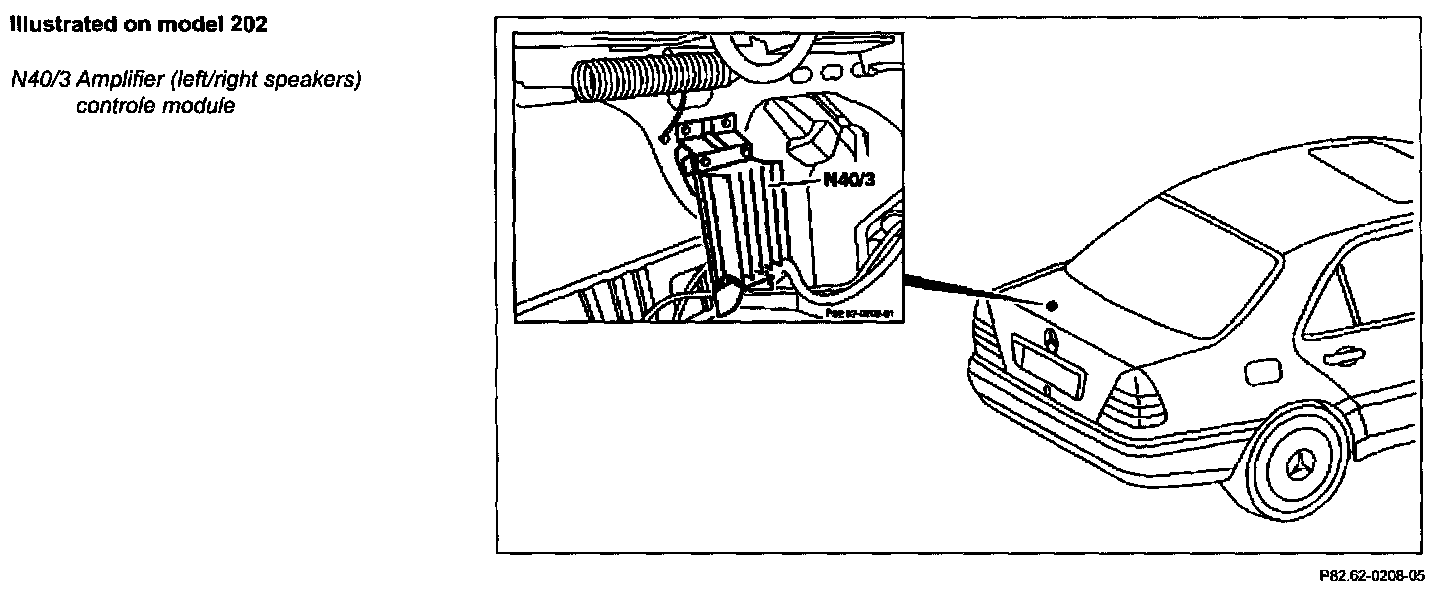

Illustrated On Model 202:

1 Disconnect ground cable at the battery
2 Fold back side paneling on left side
3 Remove control module of left/right loudspeaker amplifier (N40/3)


4 Reinstall in opposite order
