Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
1999
>>
E 430 (210.070) V8-4.3L (113.940)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Frame
>>
Trailer Hitch
>>
Service and Repair
>>
Procedures
>>
AN31.10-P-8080FFA Retrofitting Trailer Coupling
AN31.10-P-8080FFA Retrofitting Trailer Coupling
AN31.10-P-8080FFA Retrofitting Trailer Coupling
- with CODE (809) vehicles without integrated turn signal indicators in outside mirrors

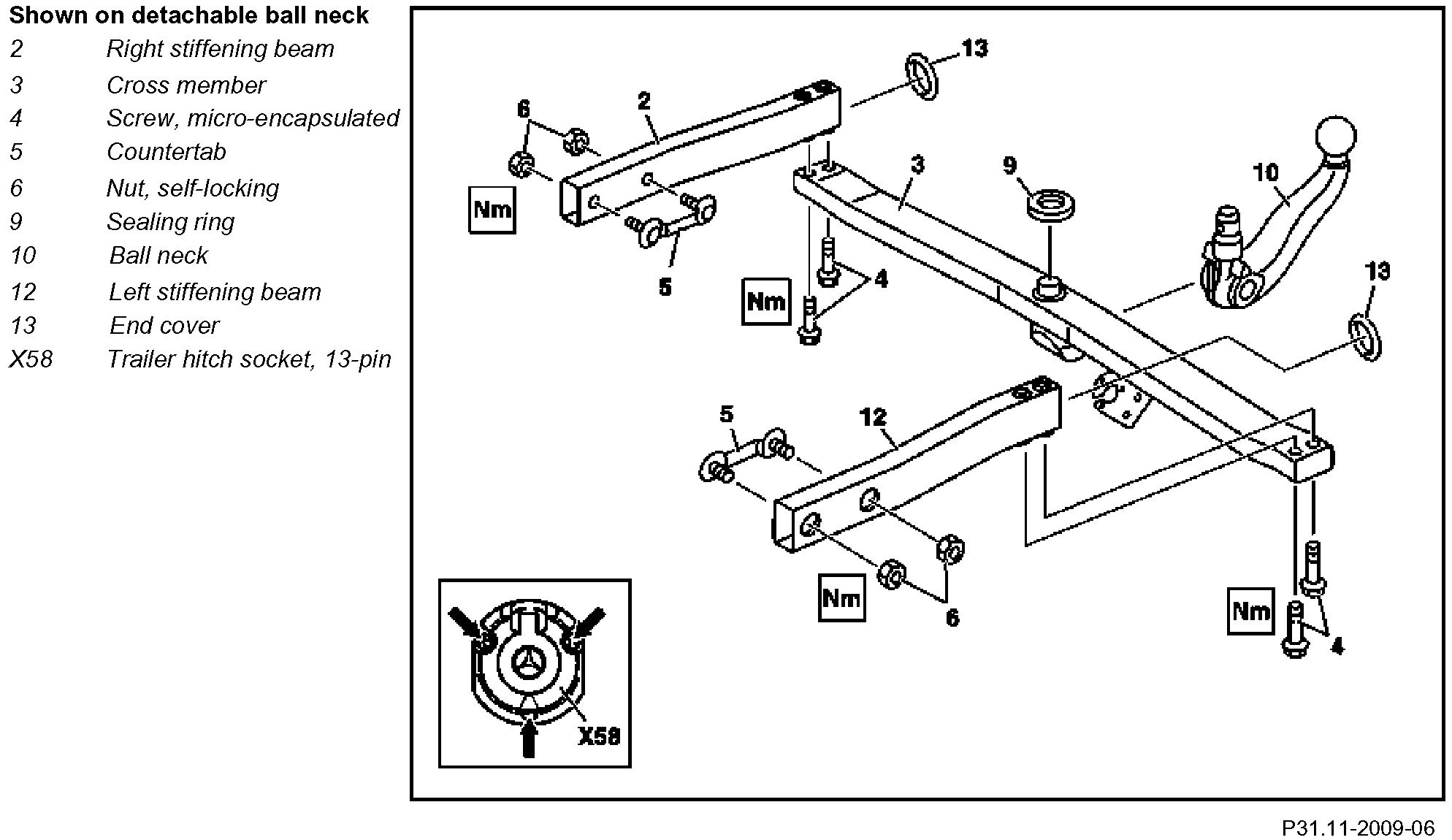

Component Identification:

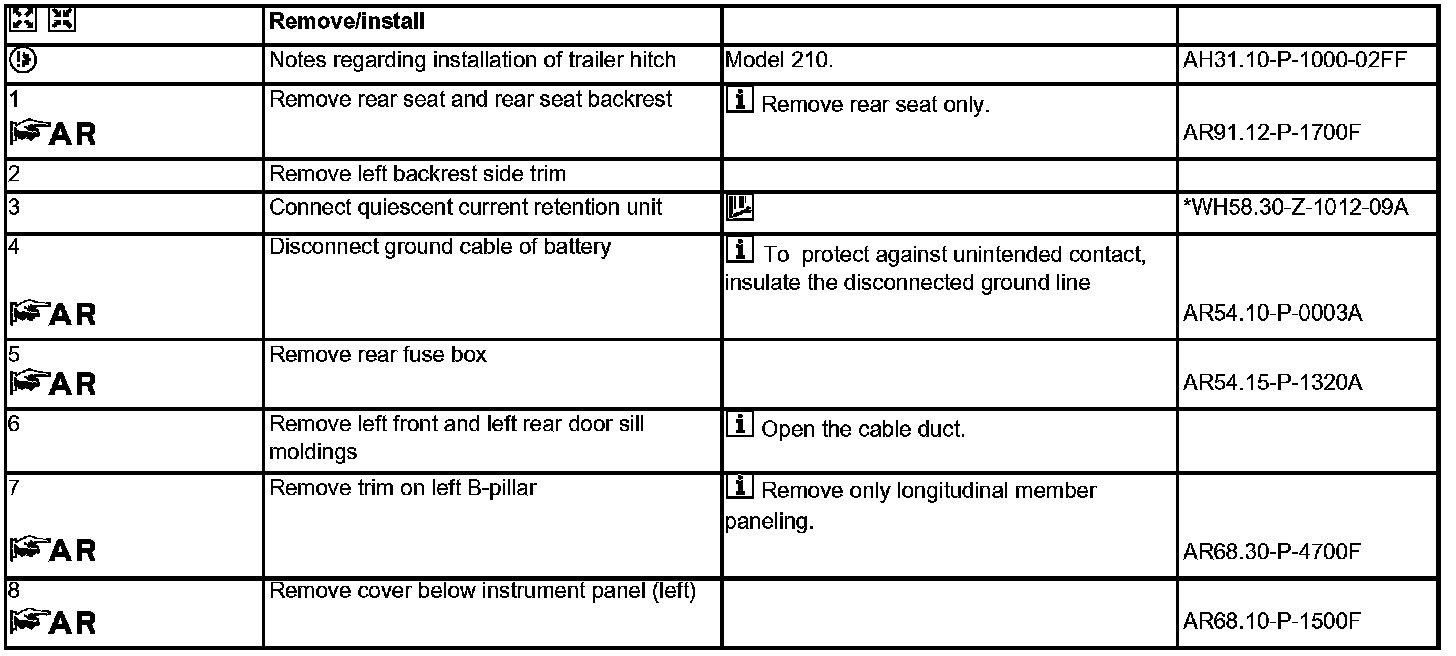

Steps 1 - 8:

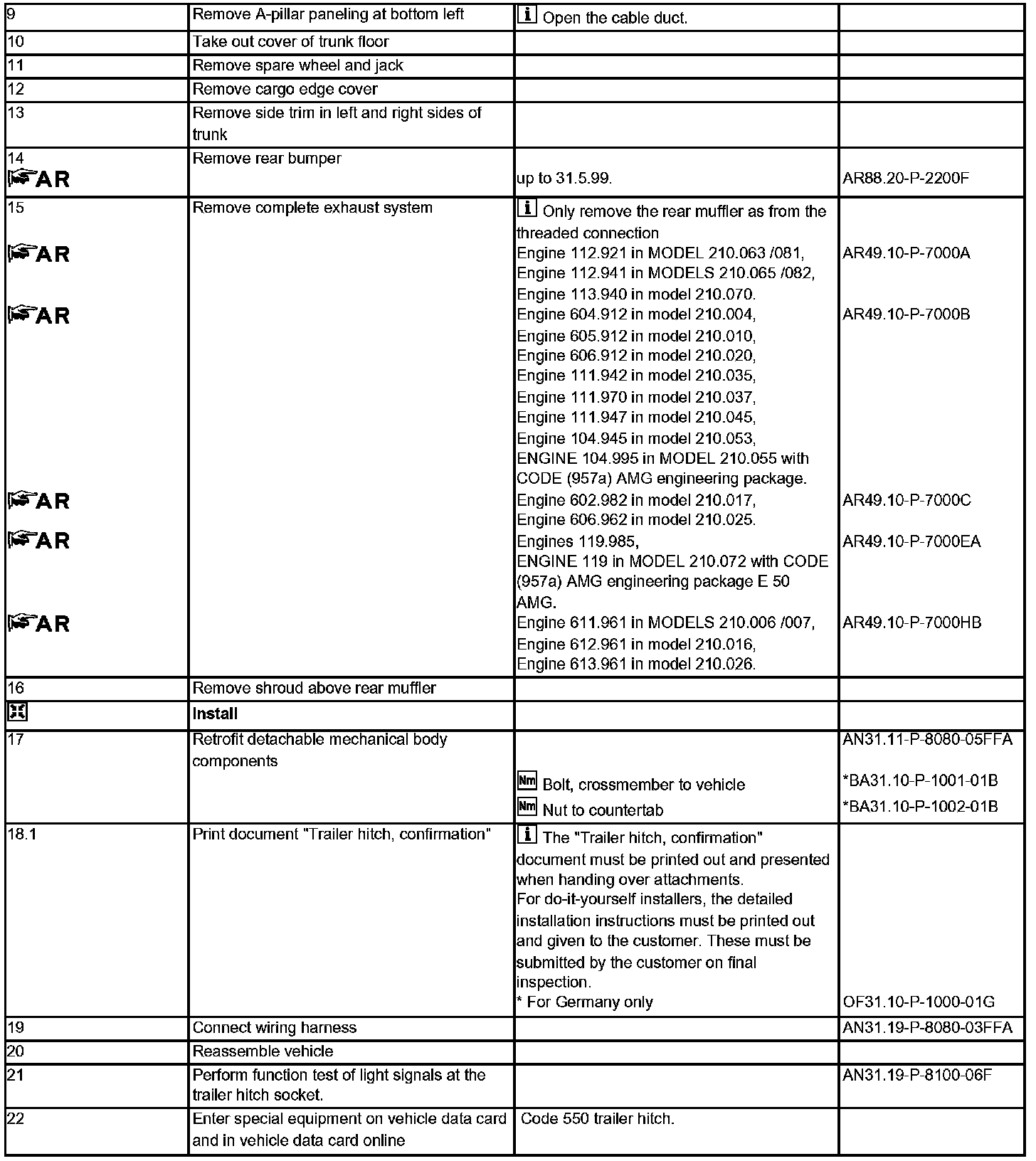

Steps 9 - 22:

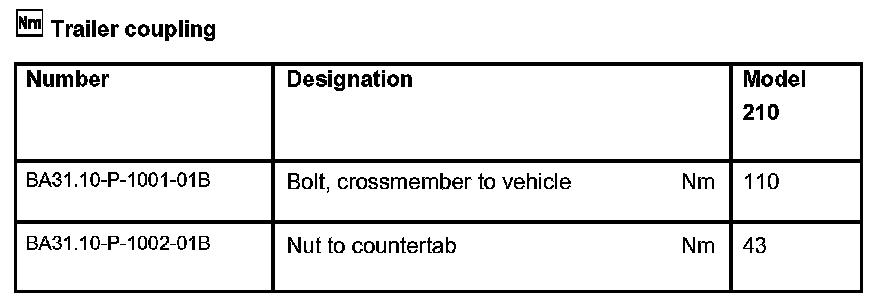

Trailer Coupling:

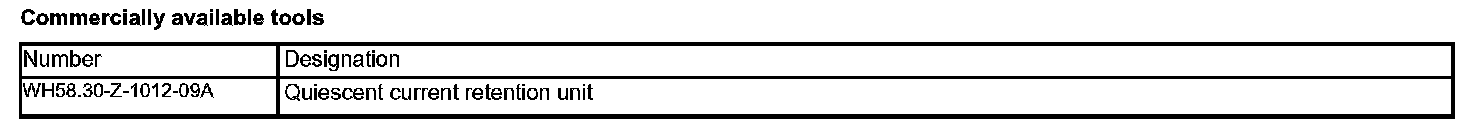

Commercially Available Tools:

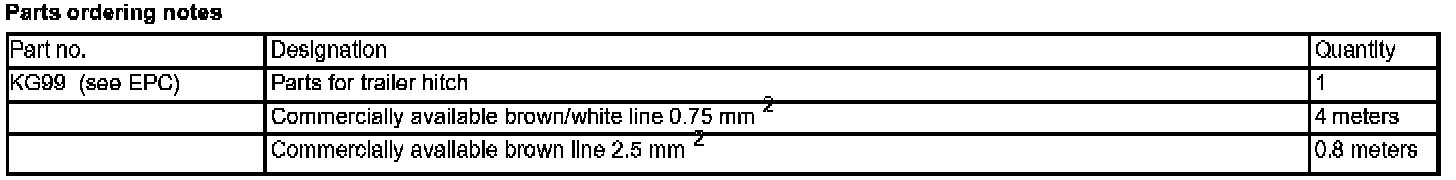

Parts Ordering Notes:
