ETP - Electrical Test Program
>>
Component Locations - Section 21
>>

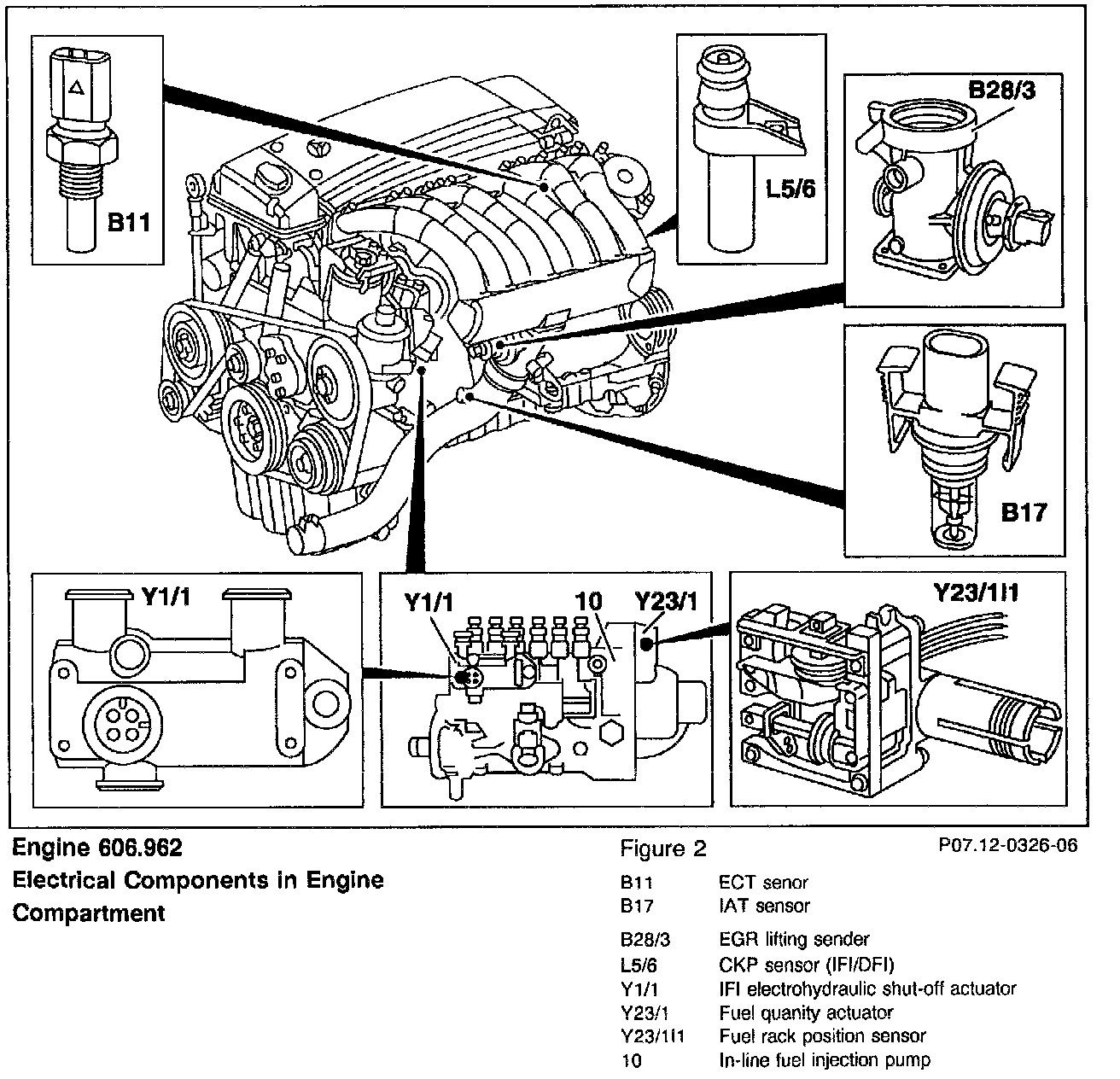

Figure 2 - In Engine Compartment
Figure 2 - In Engine Compartment
Figure 2:
