Convenience Actuation With Lock Switch, Function

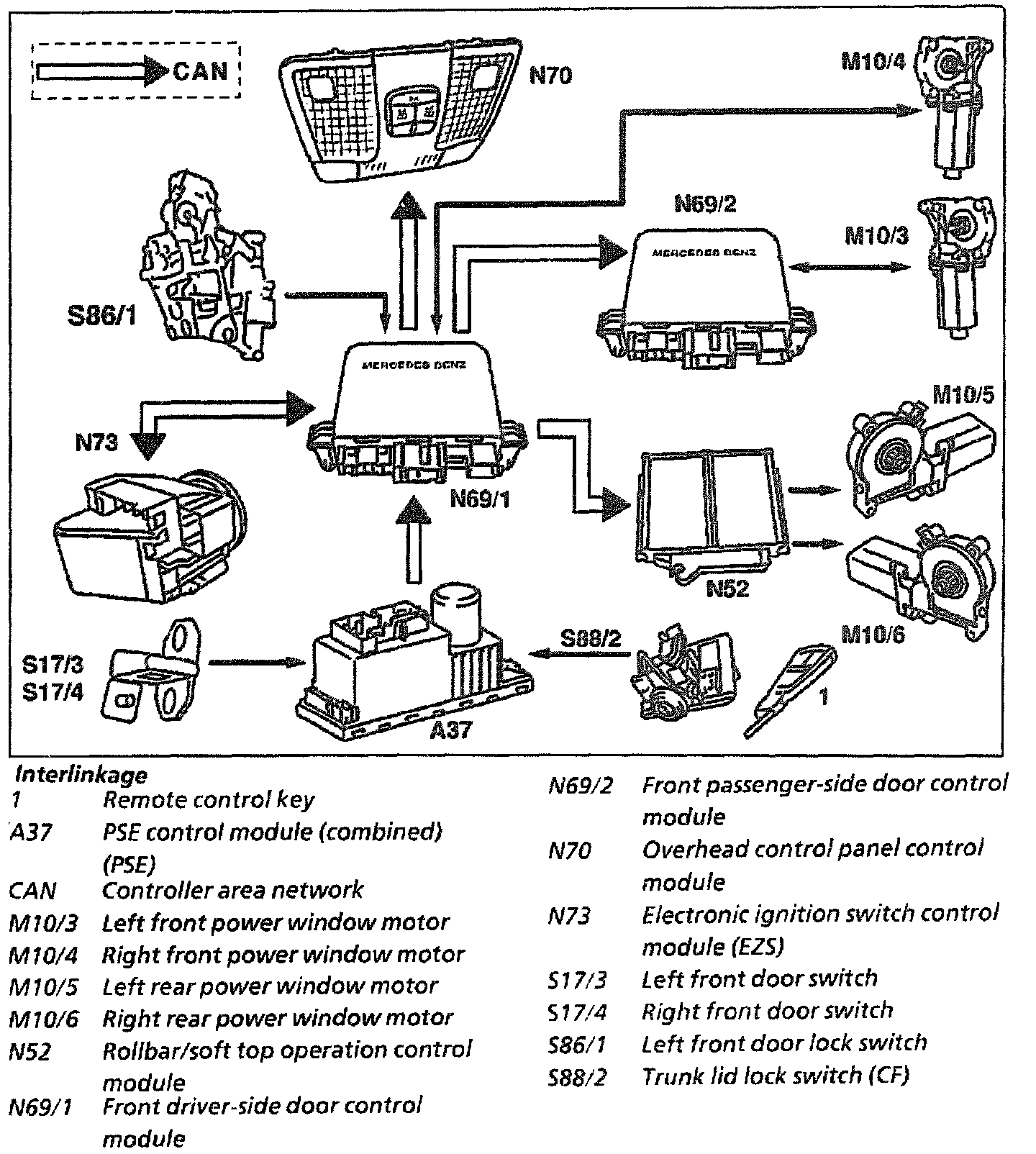

Interlinkage:

Function prerequisites:
- Voltage not too low or too high
- Circuit 15_off and circuit 15R_off
- All doors closed.

Convenience closing function with lock switch in driver's door
Actuation of the left front door lock switch (CF, S86/1) causes the central locking to lock the vehicle. If the lock switch is also pressed for longer than 5 seconds, the front driver-side door control module (N69/1) relays the convenience closing command to the CAN bus. The command is transmitted as long as the lock switch is actuated.

The door control modules perform the power window convenience closing function.

Convenience closing function with trunk lid lock switch
In this case the trunk lid lock switch (CF, S88/2) is actuated and the CAN instruction is transmitted by the PSE control module (combined) (A37)

When the "unlock vehicle" button is pressed the corresponding functions are performed for convenience opening.
