Quarter Window Glass: Service and Repair

Preliminary work:
Rear side wall panelling removed (do not screw off seat belt swivel fitting on frame side member). Service and Repair

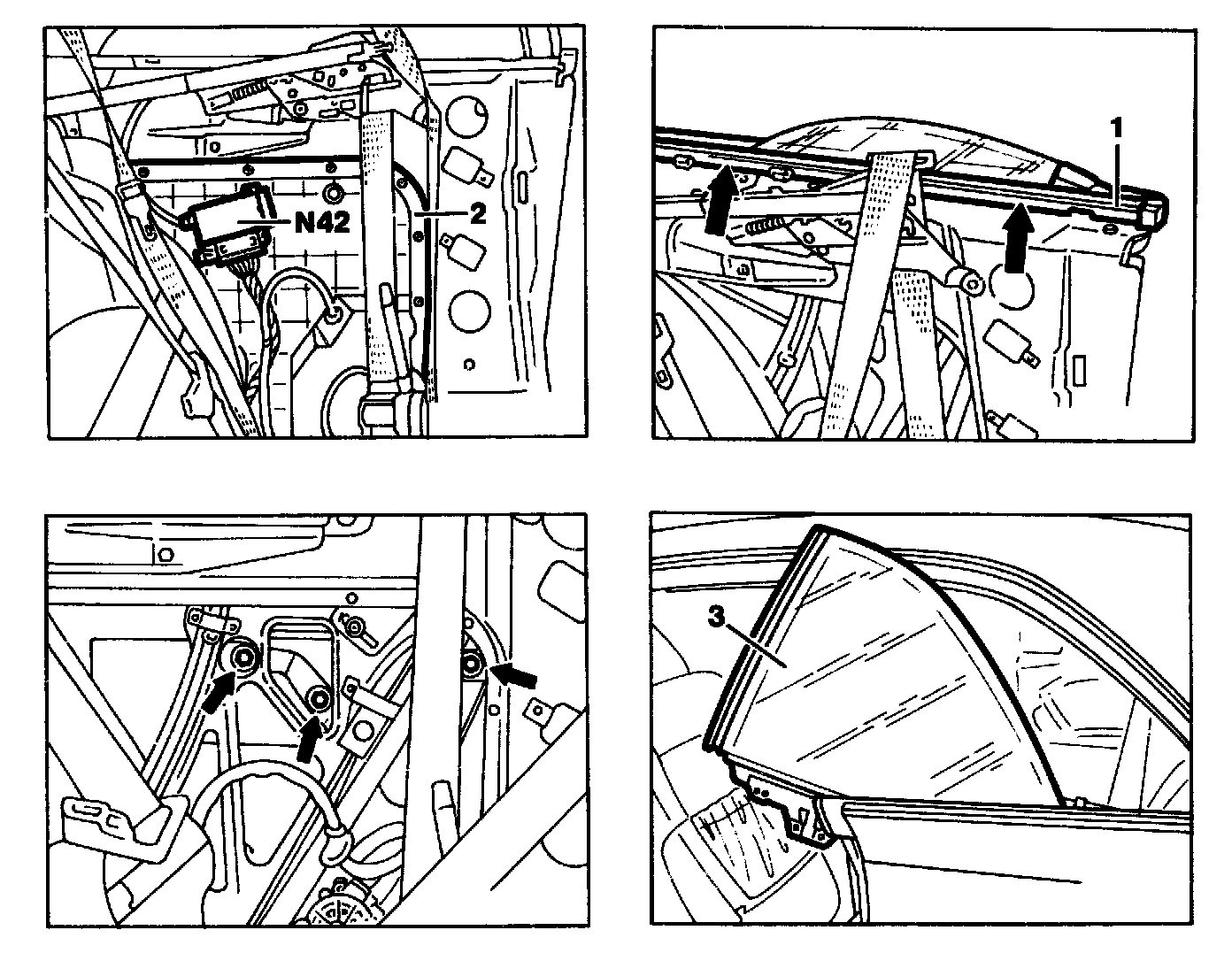

Cover (2) on installation opening
remove, install (7 screws), disconnect, reconnect electrical plug connections (2 each) on control unit (N42), expose wires.

Inside sealing rail (1) on window shaft
remove, install.

Rear side window
close until screws (3 each) on window lift bar are visible in installation opening.

Screws (arrows)
screw out, screw in (10 mm).

Rear side window (3)
remove from window shaft upward, insert.

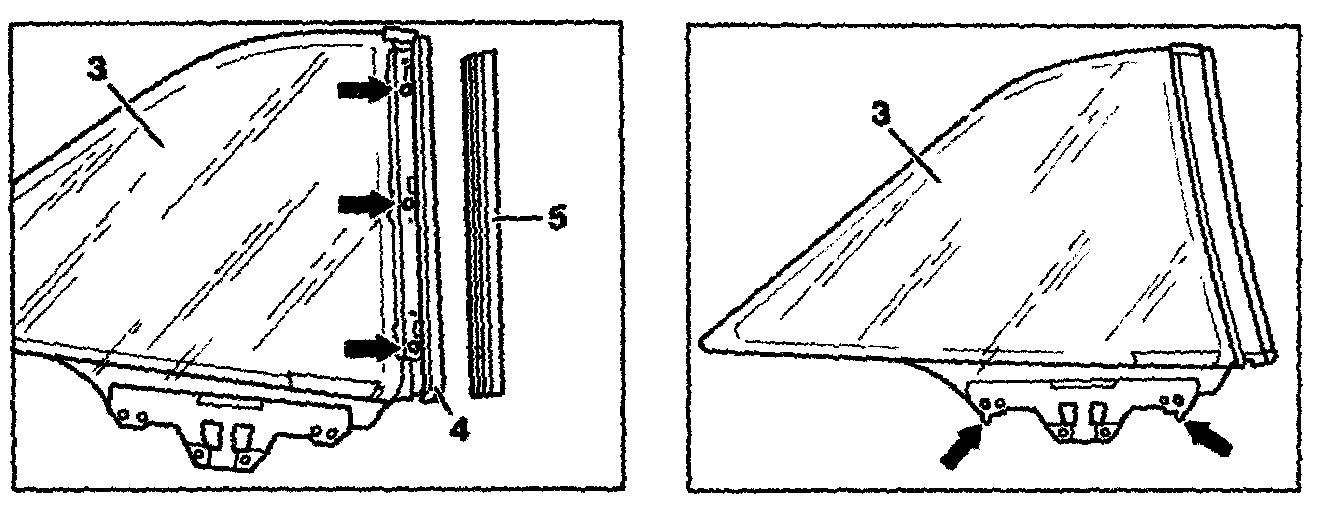

Window web (sealing profile) on rear side window
screw off, screw on: for this purpose pull inside cover (5) off toward rear, screw out screws (3 each, 2.5 mm Allen screws).

Window web (4)
remove, install.

Rear side window
insert into retaining bar for rear window lift and insert locating pins.

Screws (arrows)
screw in together with washers, however, do not tighten.

Rear side window
adjust. Adjustments

Continue to reassemble
in opposite order.
