Starter Motor: Service and Repair

Preliminary work:
Rear engine compartment panel removed






Ground cable at battery
disconnect, connect.

Steering
Turn to full left lock.

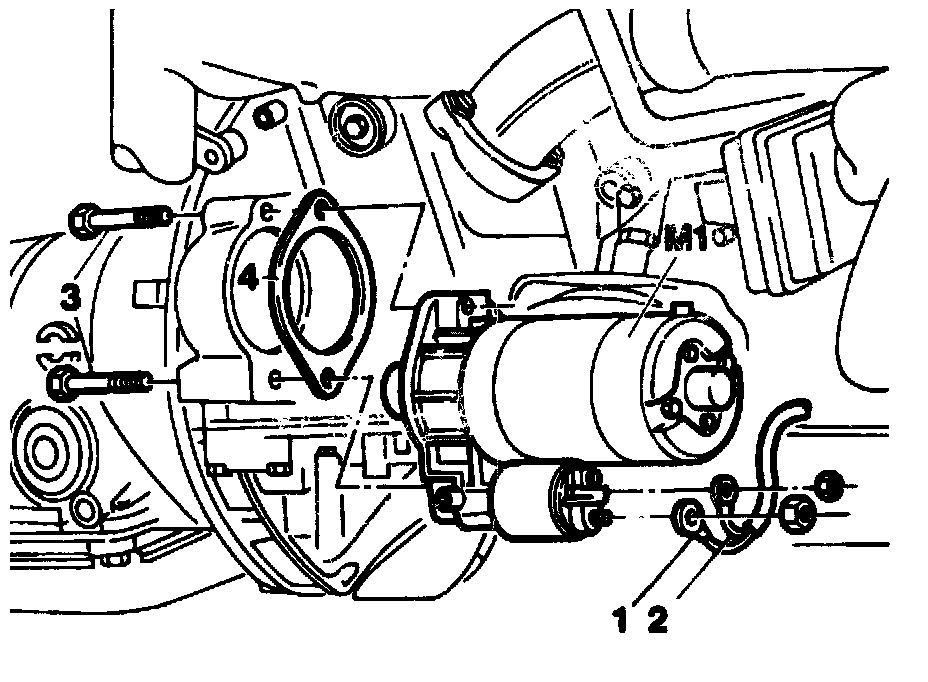

Electric wiring (1 and 2) at starter (M1)
disconnect, connect.

Bolts (3)
unscrew, screw in.

Starter (M1)
take out from below, insert from below; when doing this, take off existing spacer disc(s) (4), if necessary, and fit on.
