Replacement of Seat Belt Extender Microswitch

Replacement of Seat Belt Extender Microswitch Complete With Wire

Preliminary work:
Seat belt extender removed.

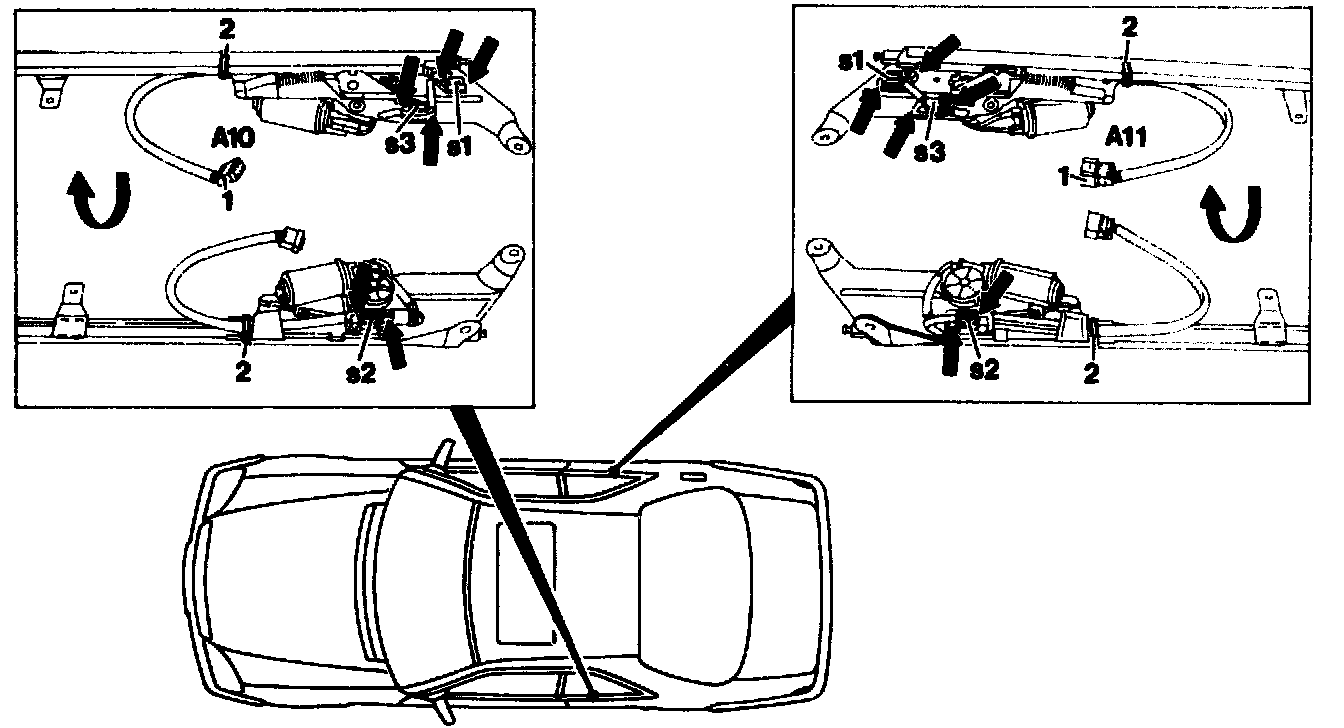

Plug connection (1) to control unit (N42)
disconnect, reconnect.
Cable strap (2)
open, close.
Flat plug connectors on motor
disconnect, reconnect.
Screws (arrows) for microswitch
screw out, screw in.

NOTE: Secure mounting screws for microswitch with securing point.
