Mercedes Benz
>>
1999
>>
CL 600 (140.076) V12-6.0L (120.982)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Central Power Supply
>>
Diagrams
>>

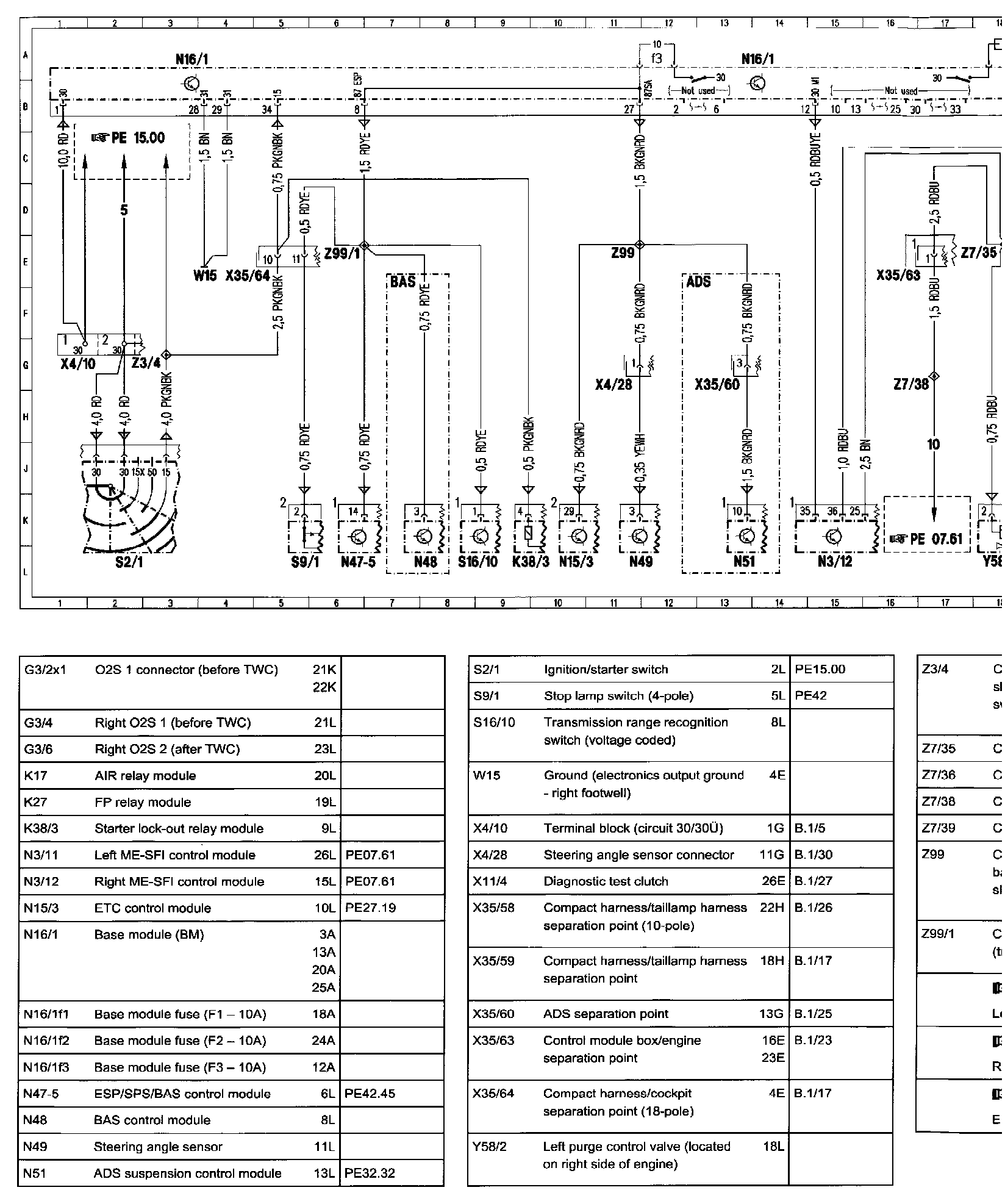

Electrical Diagrams
Electrical Diagrams
k[ PE54.21-U-2400-XJ:
