Crankshaft Conrod Journal Machining Dimensions

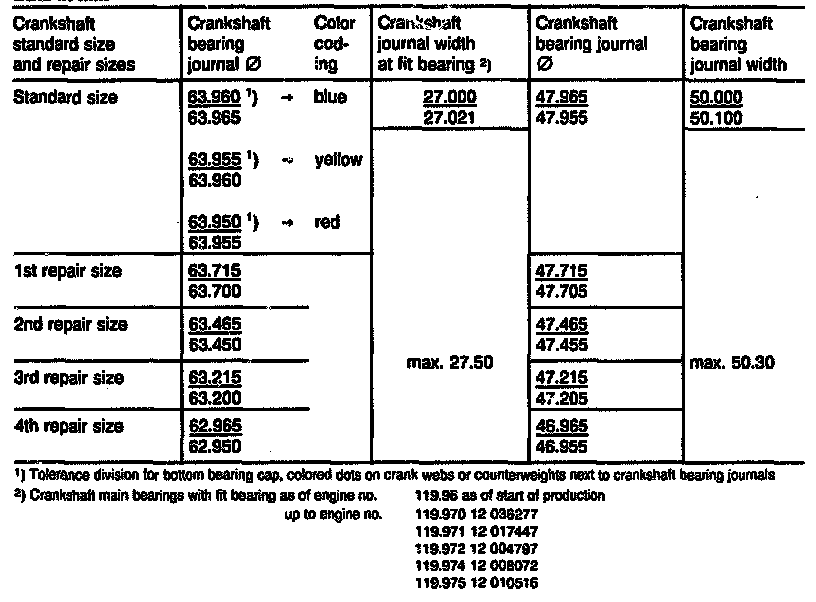

Crankshaft Dimensional Specifications
Data In mm

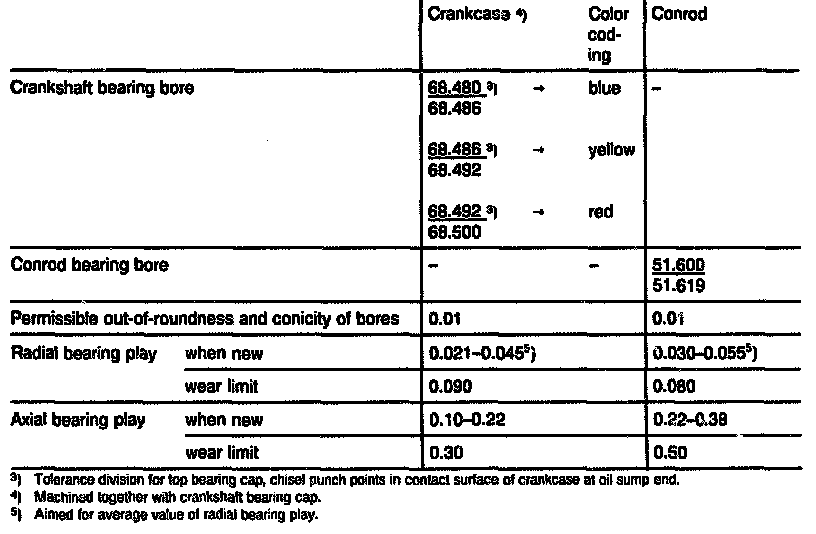

Crankshaft Bearing Bore, Conrod Bearing Bore An Bearing Play In mm

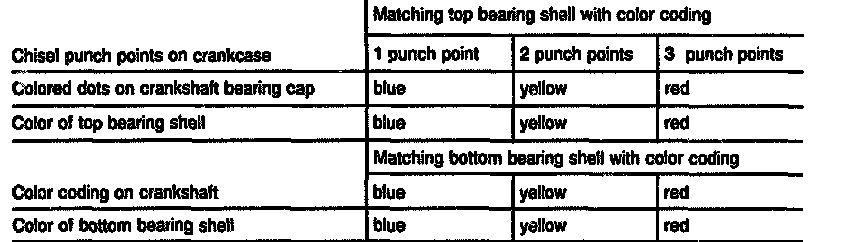

Matching Crankshaft Bearing Shells To Crankcase
