Preparation For Test - Section 31
Preparation for test
- Connect pressure gauge to test connection.
- After completing test, using measurement glass (055), release fuel pressure and allow residual fuel to drain into glass (see Figure 1 below.)

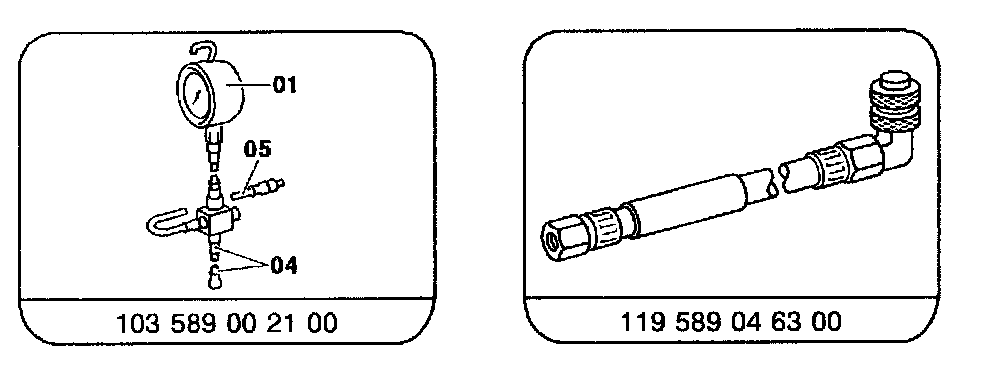

Special Tools:

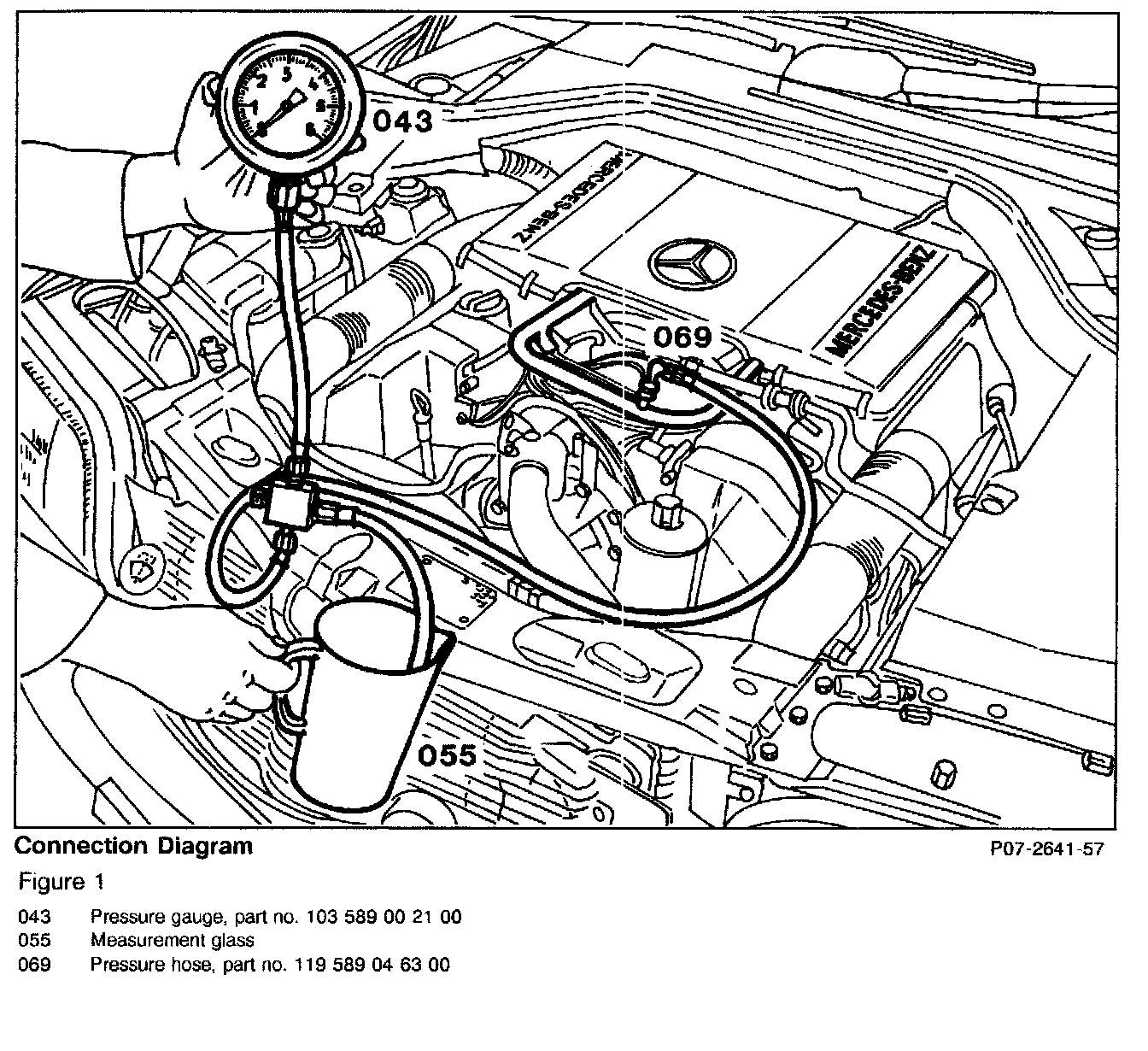

Figure 1 - Connection Diagram:
