Mercedes Benz
>>
1999
>>
CL 500 (140.070) V8-5.0L (119.980)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Central Power Supply
>>
Diagrams
>>

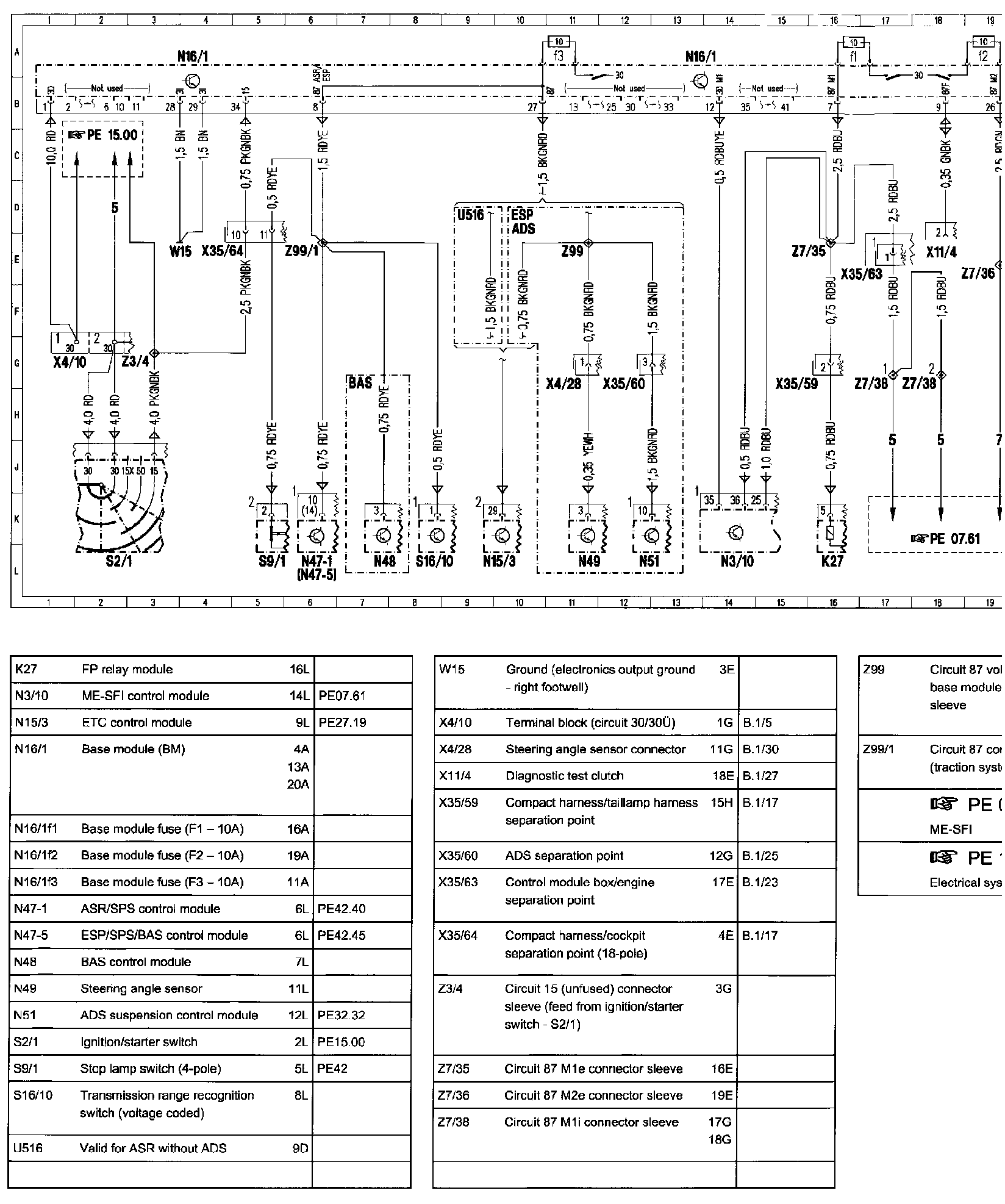

Electrical Diagrams
Electrical Diagrams
�� PE54.21-U-2400-XI:
