Removal and Installation of Rear Engine Mount

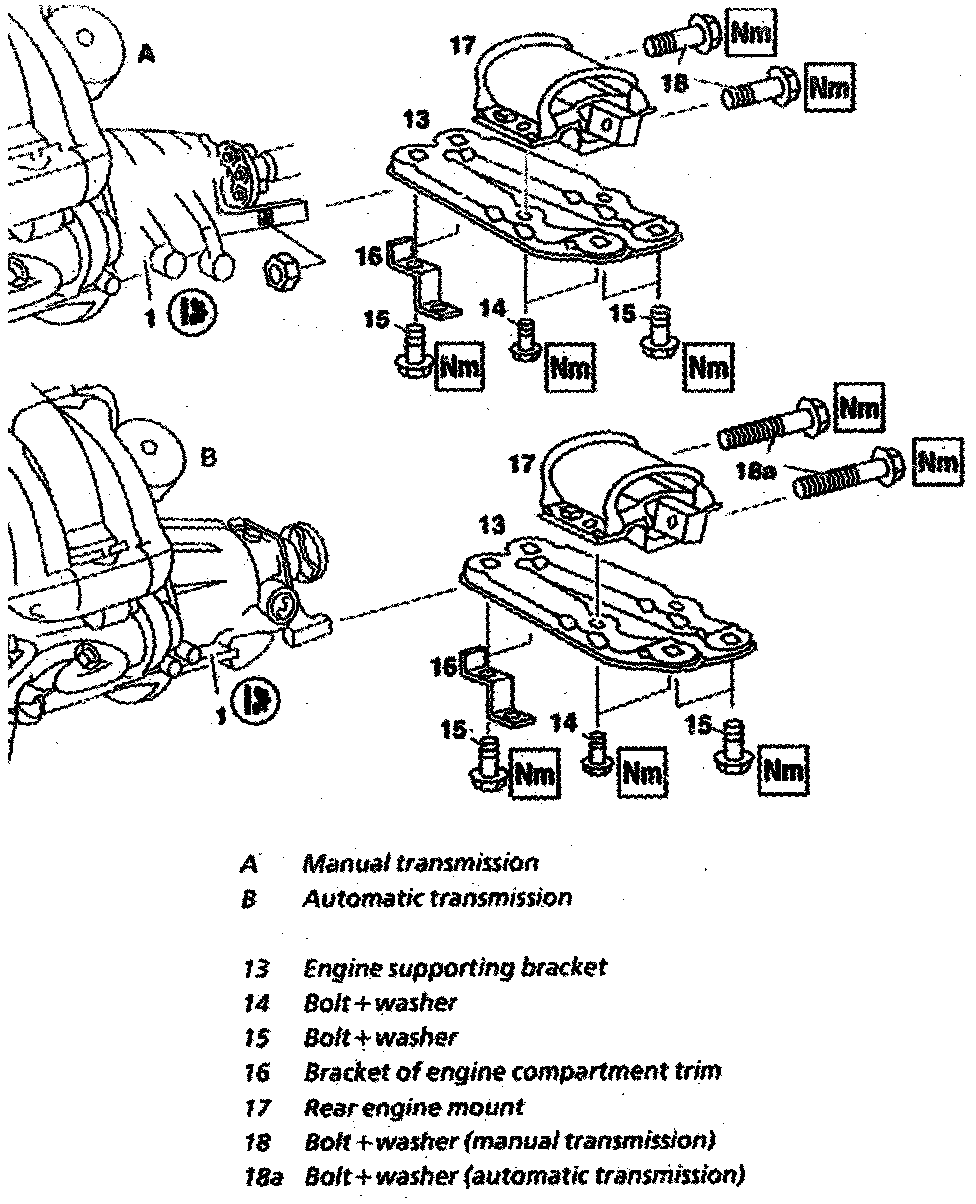

NOTE: Numbers in parentheses ( ) indicate a component or tool in the associated illustration.

Removal
1. Support transmission (1)
2. Unbolt engine cross member (13) at rear
3. Unbolt transmission mounts (17), remove
- Pay attention to installation position

Installation
Install in the reverse order noting the following:
- Tighten the following to:
Bolt of rear engine mount to rear engine cross member: 25 Nm
Bolt of rear engine cross member to body: 40 Nm
Bolt and nut of rear engine mount to transmission: 40 Nm
