Headlamp Igniter Module: Service and Repair

Preliminary work:
Headlamp unit removed. Service and Repair
Lens on headlamp removed, refer to "Replacing Lens of Headlamp Unit". Service and Repair
Headlamp reflector removed. Service and Repair

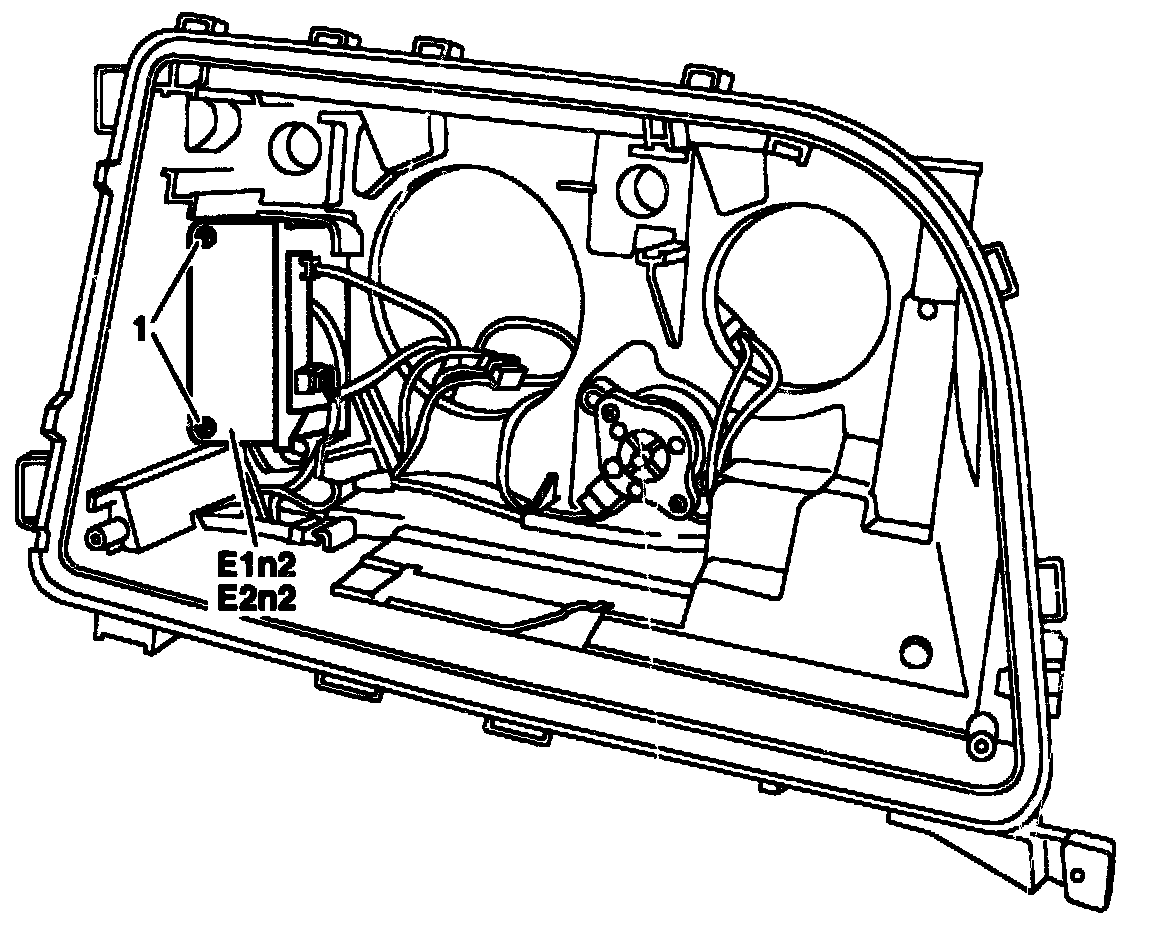

Screws (1)
unscrew, screw in.

Electrical connection
disconnect, reconnect.

Ignition module (E1n2, E2n2)
remove, install.
