Work Instructions / Installing In-Dash Controller (IDC): Overview
Group: 82Number: 361
Date: January 1997
SUBJECT:
MODELS 129 AND 140
MODEL YEAR 1997
INSTALLATION OF CELLULAR TELEPHONE (CTEL) SYSTEM
1. Unpack contents of installation kit and compare to parts list at end of Work Instructions. Read through entire procedure to familiarize yourself with sequence of instructions and parts.
Remove Operating Guide from kit and place in Owner's Literature portfolio.
2. Disconnect and cover negative battery terminal.
3. Remove two screws securing false back to eyeglass compartment. Remove false back to expose two 12-pole Connectors and one microphone connector.
Remove cables from false back. False back and original mounting screws may be discarded.
4. Install DC mounting bracket. Position mounting bracket so that mounting holes align with two false back mounting holes. Secure bracket with four M4x10 mm self tapping screws (the two additional holes have pre-punched bosses).

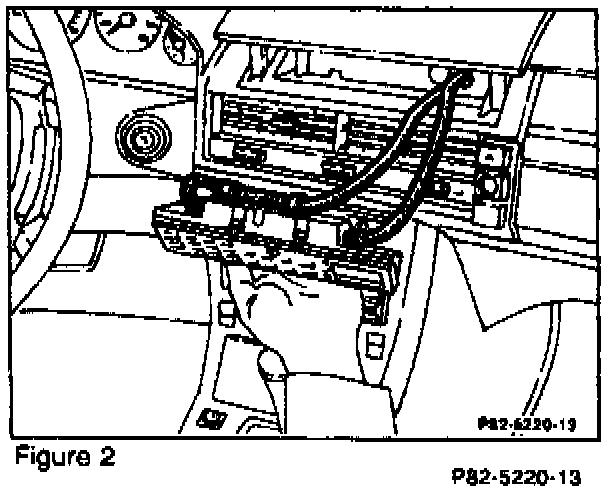

5. Connect two 12-pole connectors to in-dash controller. Connect microphone connector to connection on top center of controller (Figure 2).

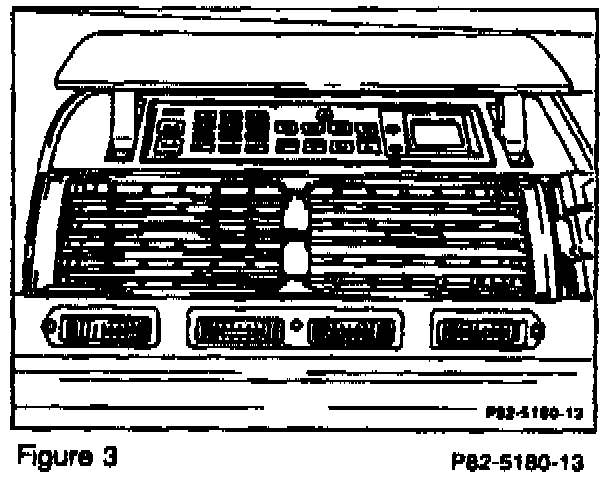

6. Secure left cable and microphone cable to dips on back of IDC. Slide in-dash controller into bracket and snap into place - DO NOT PRESS ON THE LCD DISPLAY.
