Model 129

1. Remove carpeting from center console.

2. Cut and remove all styrofoam from underside of carpeting. Remove material from lip around the underside of carpeting so reinforcing plate can lie flat.

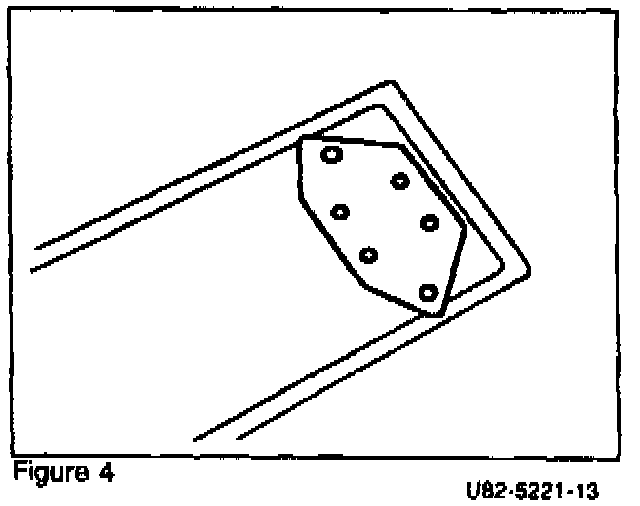

3. Place reinforcing plate on back of carpeting (Figure 4).

4. Locate, punch and drill four inner holes to 5 mm.

5. Insert four screws through reinforcing plate and carpeting. Mount cradle on carpeting and tighten screws.

6. Drill outer holes through carpeting to match the diameter of the mounting plate holes.

7. Remove two forward screws in center console compartment.

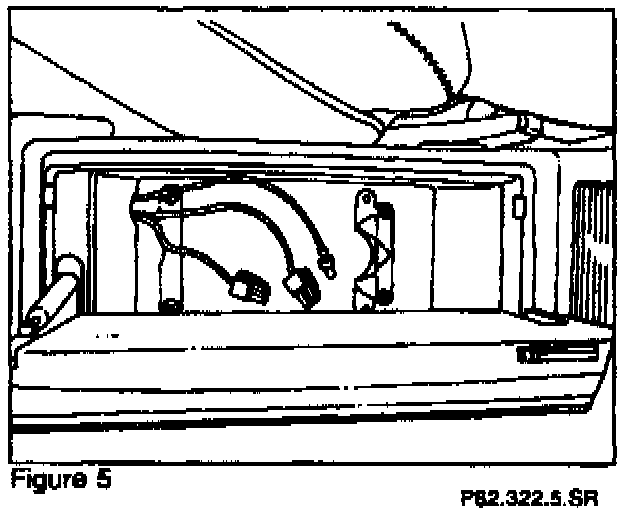

8. Place angular bracket in console with raised edge of bracket pointing towards the rear of the compartment (Figure 5). Secure bracket using the two removed screws.

9. Locate two harnesses at rear of compartment A coaxial antenna connector is taped to a 12-pole data cable labeled PORTABLE PHONE. The other 12-pole data cable is not labeled.

10. Connect unlabeled harness to back of cradle. The other harness is not used.

11. Replace carpeting and cradle into center console compartment, routing the harness along the right side of the compartment. Secure carpeting with two screws to angle bracket in compartment.

12. Connect HS coil cord to cradle. Place handset in cradle.
