Model 129 Only (Steps 2- 4)

Note:

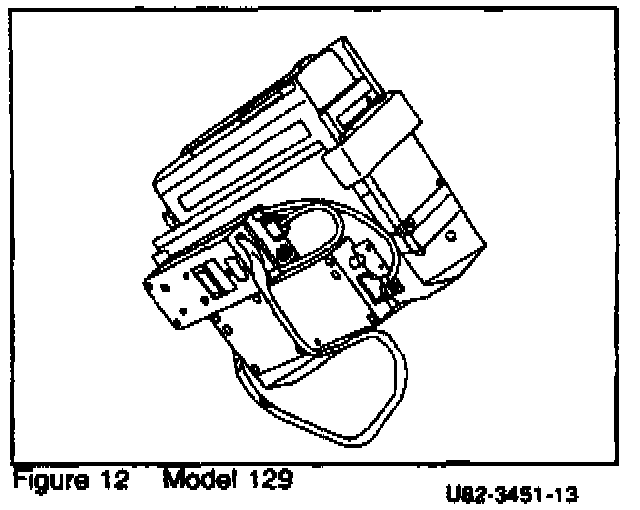

If the Mercedes-Benz CD changer is also installed, its bracket will be used for the telephone. The telephone components mount on the outer wall of CD bracket (figure 12). The bracket supplied with telephone is NOT required.

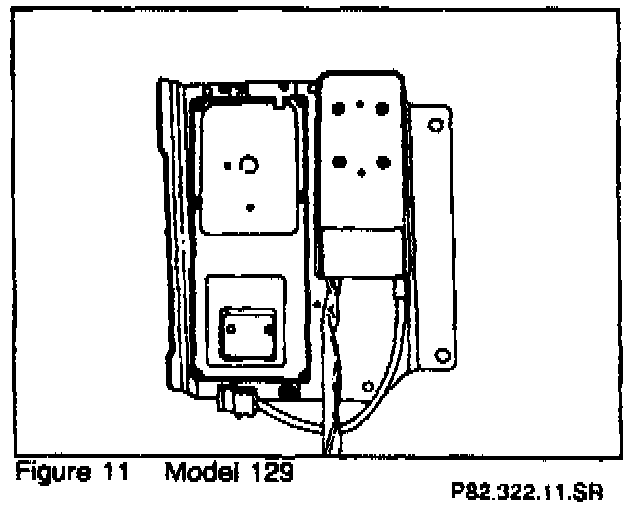

2. Assemble transmitter/receiver to mounting plate using end brackets (ensure that the antenna connector is on top).

3. Attach voice recognition module (VRM) to mounting plate with four short screws.

4. Remove protective caps from studs in bottom of wheel well. Partially remove carpeting from left trunk area. Install clips to longitudinal rail over existing holes. Replace carpeting. Position transmitter/receiver mounting plate over studs in wheel well. Insert sheet metal screws through holes in transmitter/receiver plate into clips, do not tighten. Place nuts on studs and tighten. Tighten sheet metal screws.
